Picture packing list:

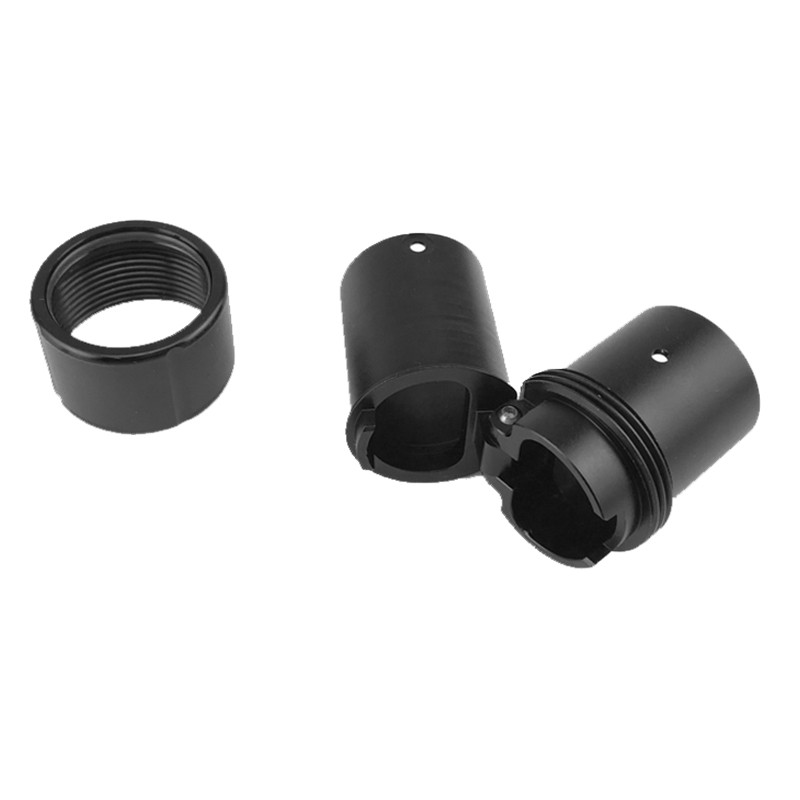

ACL30-06 45°/135° ø30 Aluminum Folding kit:1pcs

NO.1 Detail list:

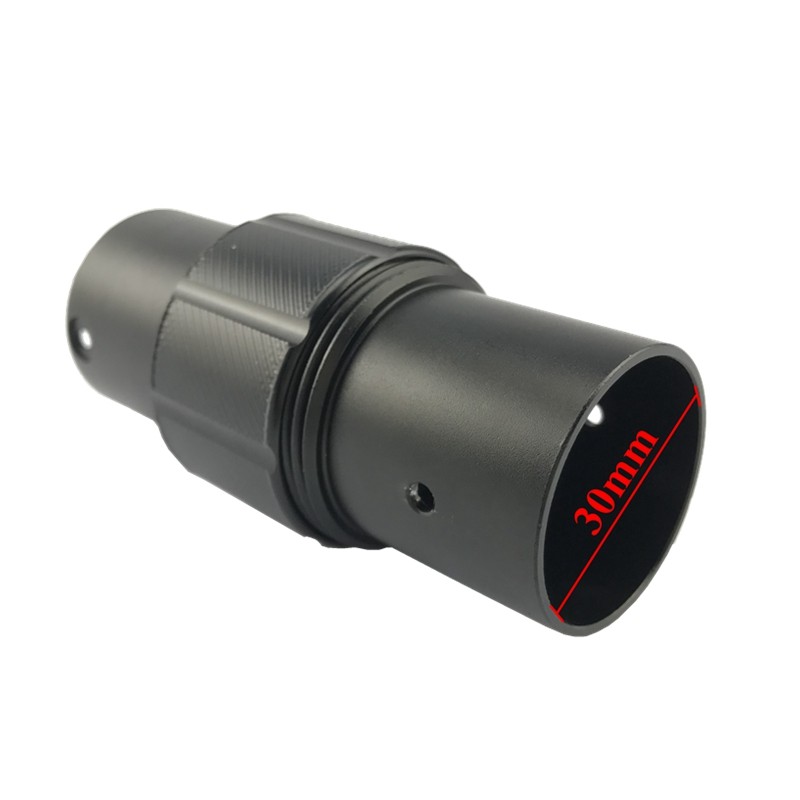

(30mm pipe diameter， 45°/135° ）

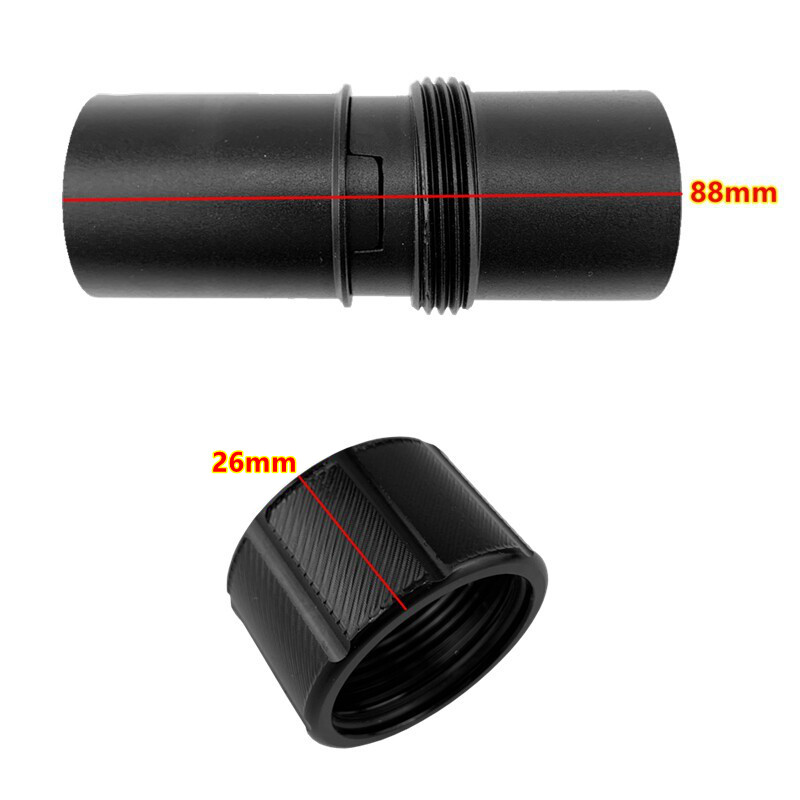

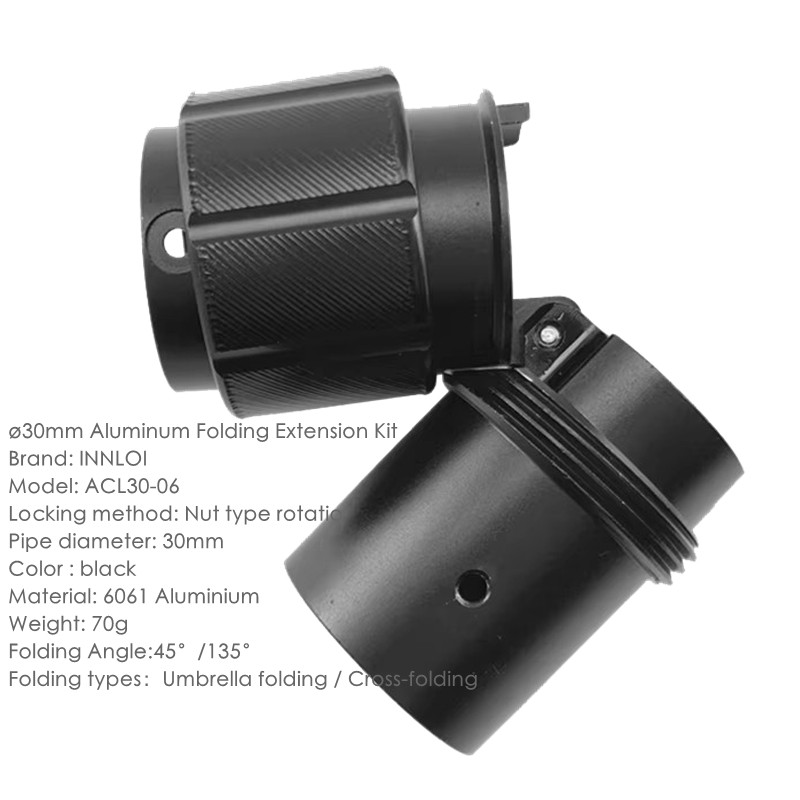

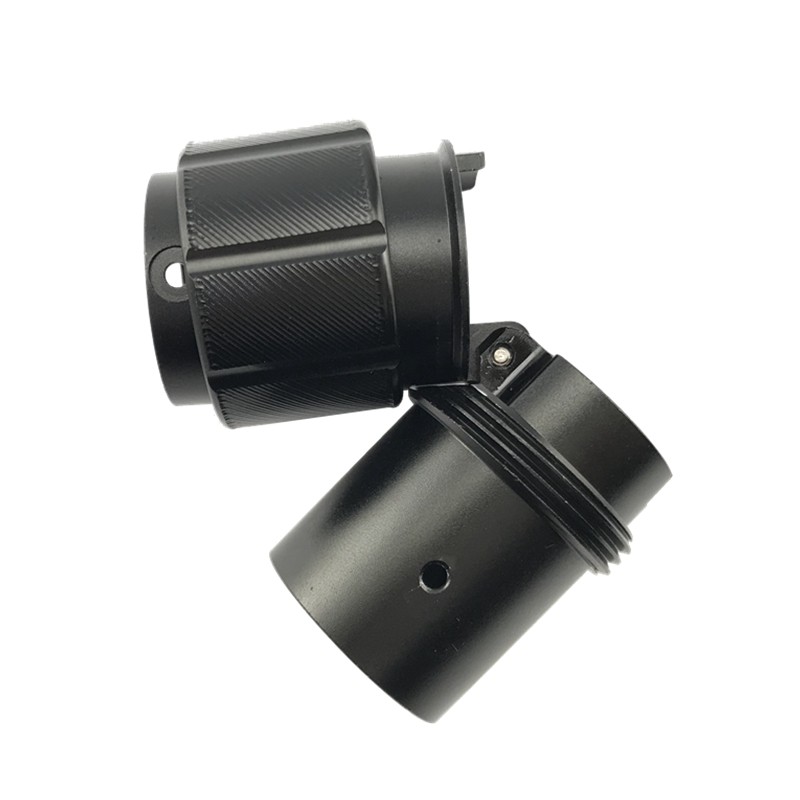

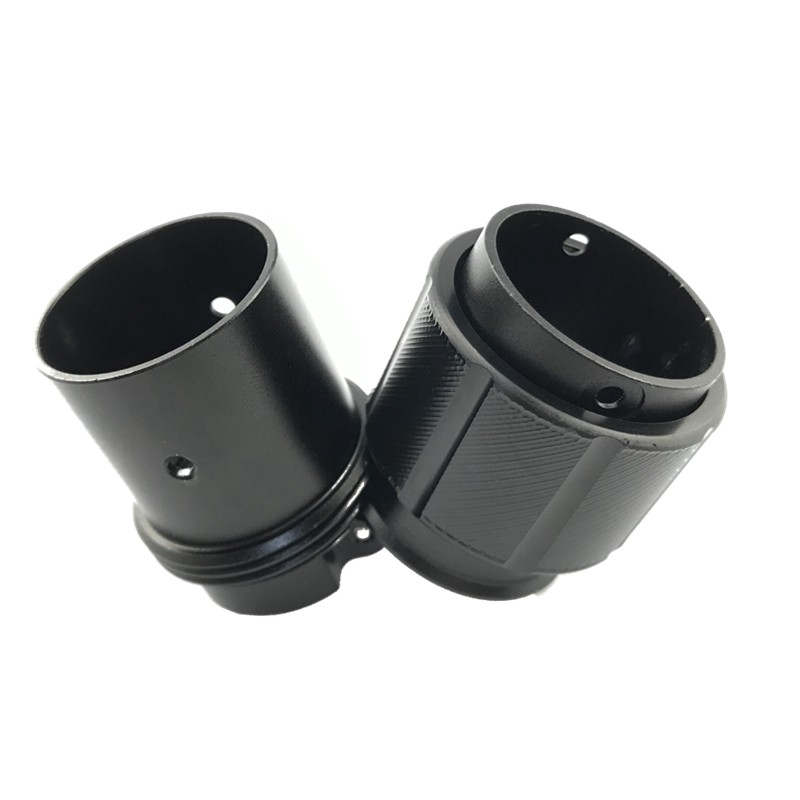

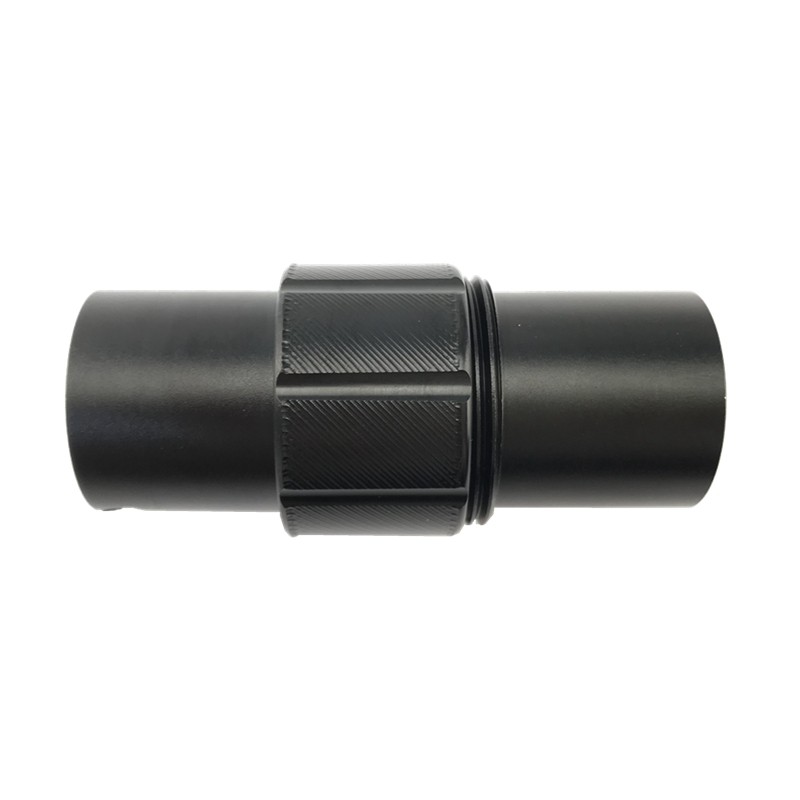

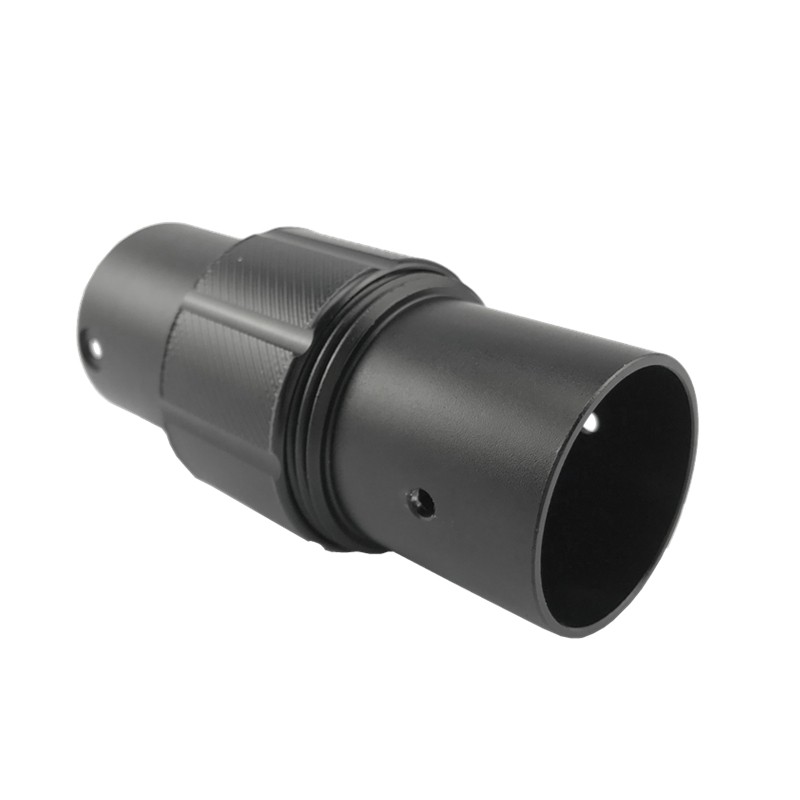

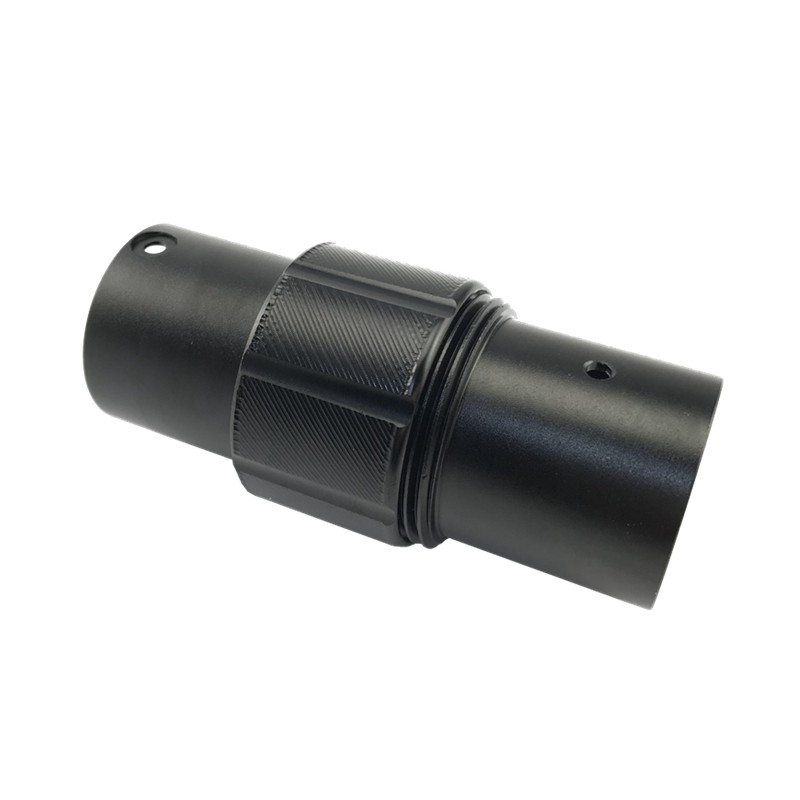

ACL30-06 ø30 Aluminum Folding kit:1pcs

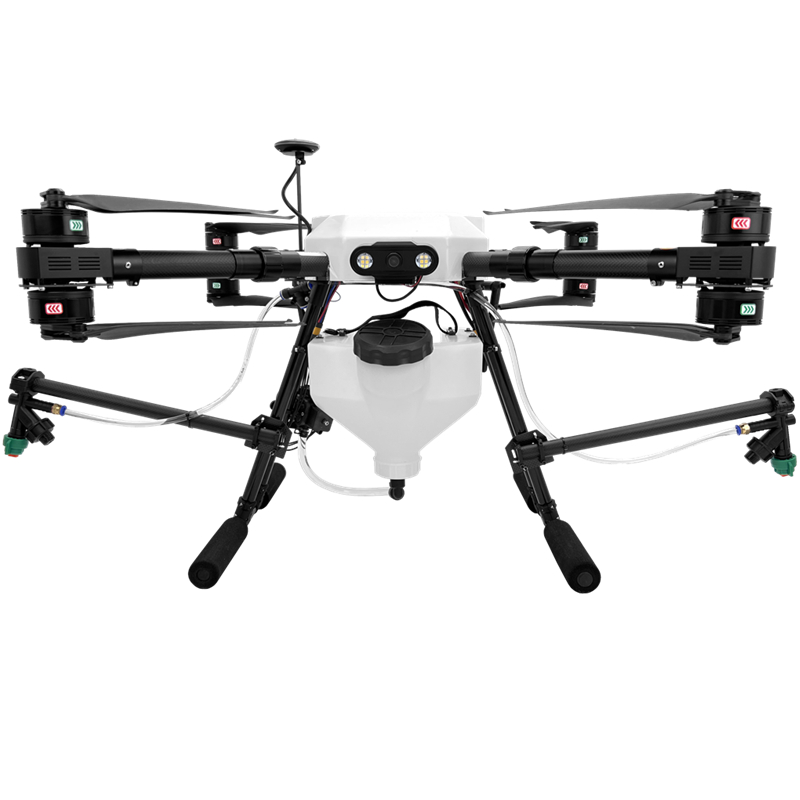

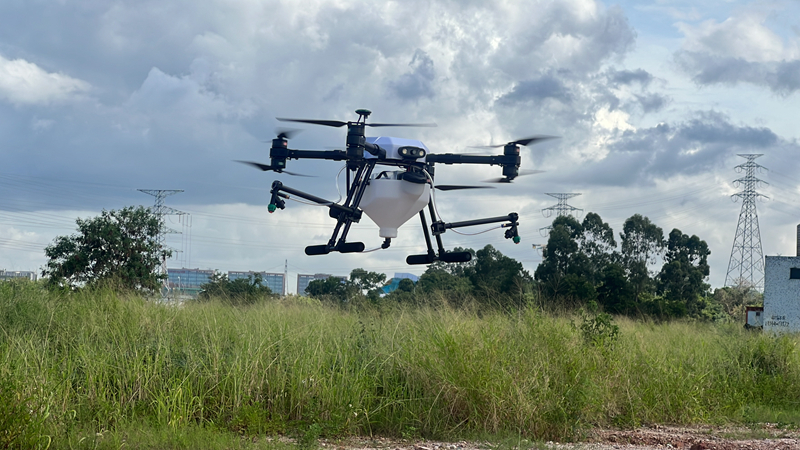

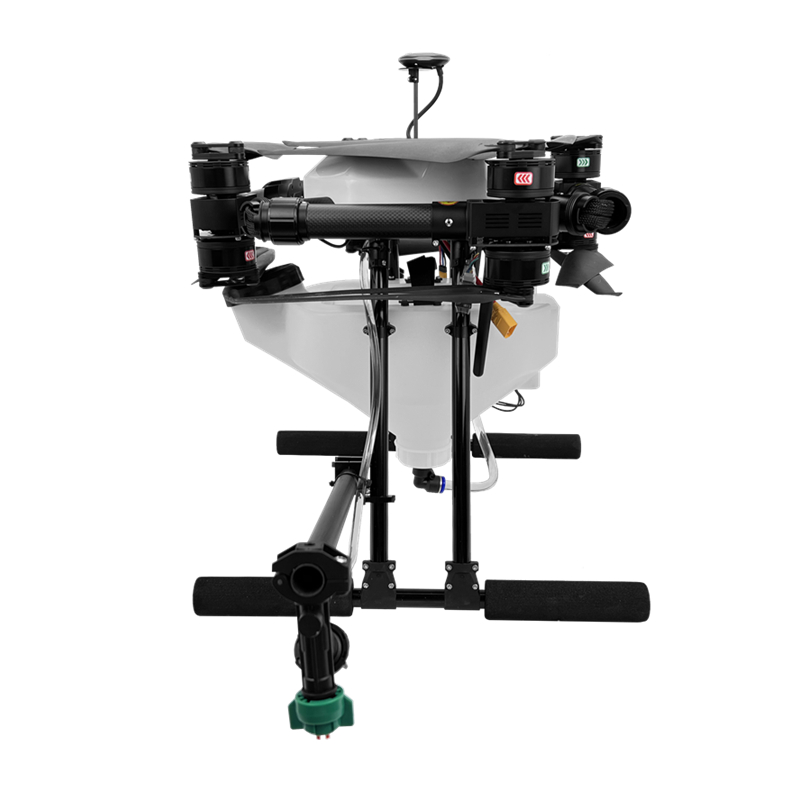

     This product is precision CNC-machined from 6061 aluminum alloy, offering both lightweight design and structural strength. It is recommended for 4-axis aircraft ≤25 kg and 6-axis aircraft ≤30 kg (non-limiting takeoff weight), meeting the needs of heavy-duty operational flights.

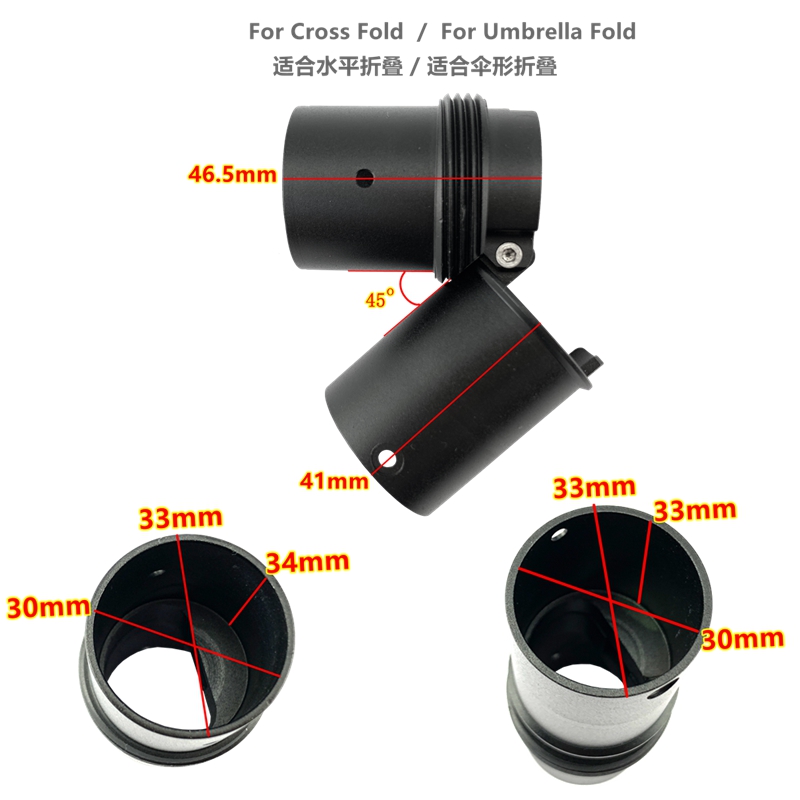

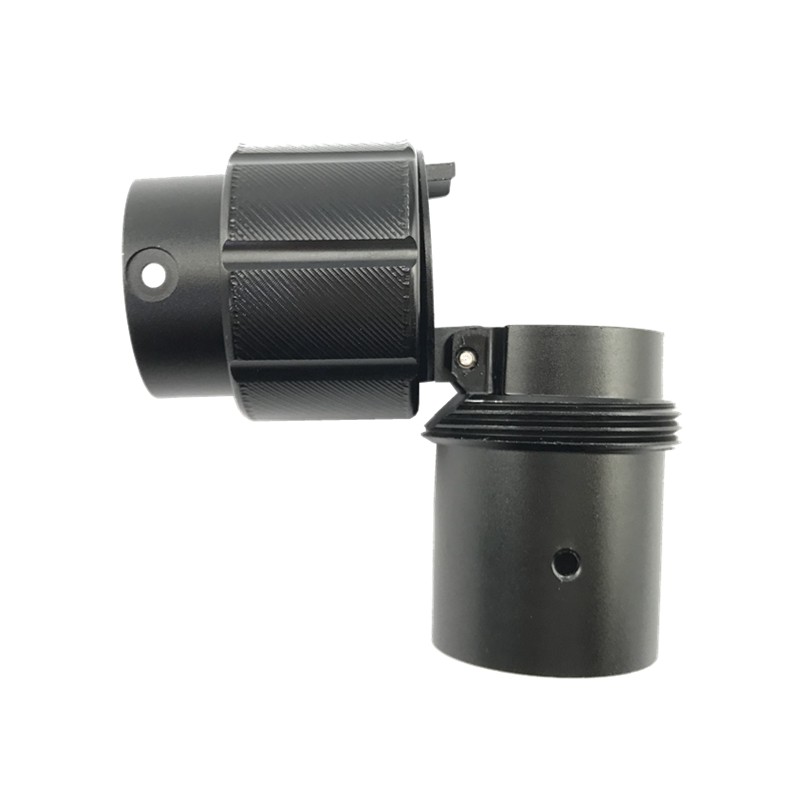

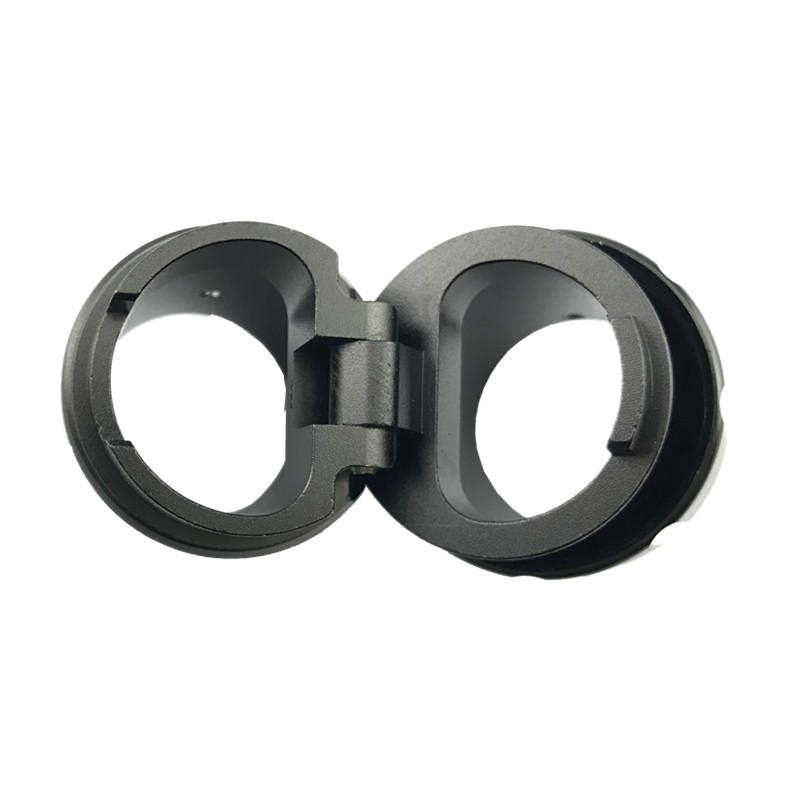

Folding angles: 45°/135°, compatible with both umbrella-style folding and horizontal folding. Controllable folding angles greatly reduce storage volume, facilitating field transportation and rapid deployment.

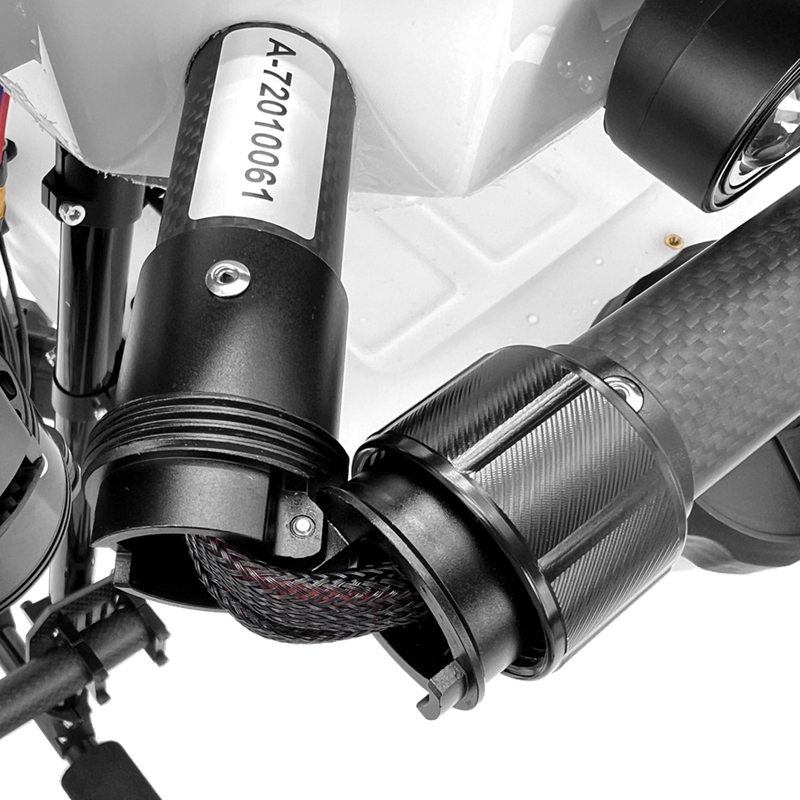

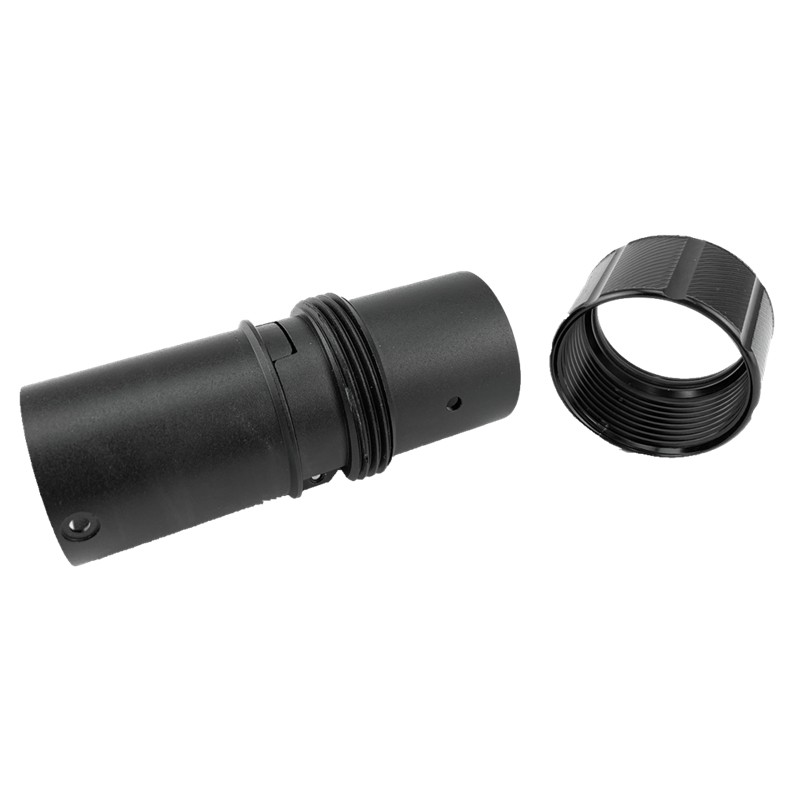

Adopting a threaded locking structure with a large thread engagement area, it provides high torsion resistance, prevents loosening and displacement during flight, and eliminates backlash after prolonged flight.

When compressed, the rubber ring provides additional end-face friction and damping, further preventing slight rotation of the threads in vibrating environments, making self-locking more reliable and significantly enhancing flight safety and structural durability.
