Picture packing list:

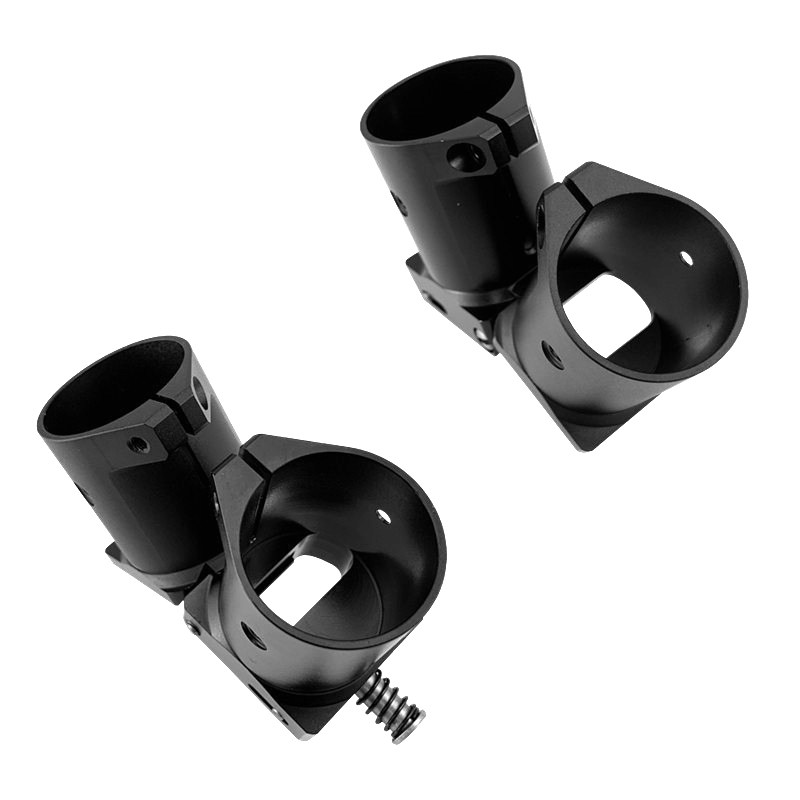

ACL30-04 45°/135° ø30 Aluminum Folding kit:1pcs

NO.1 Detail list:

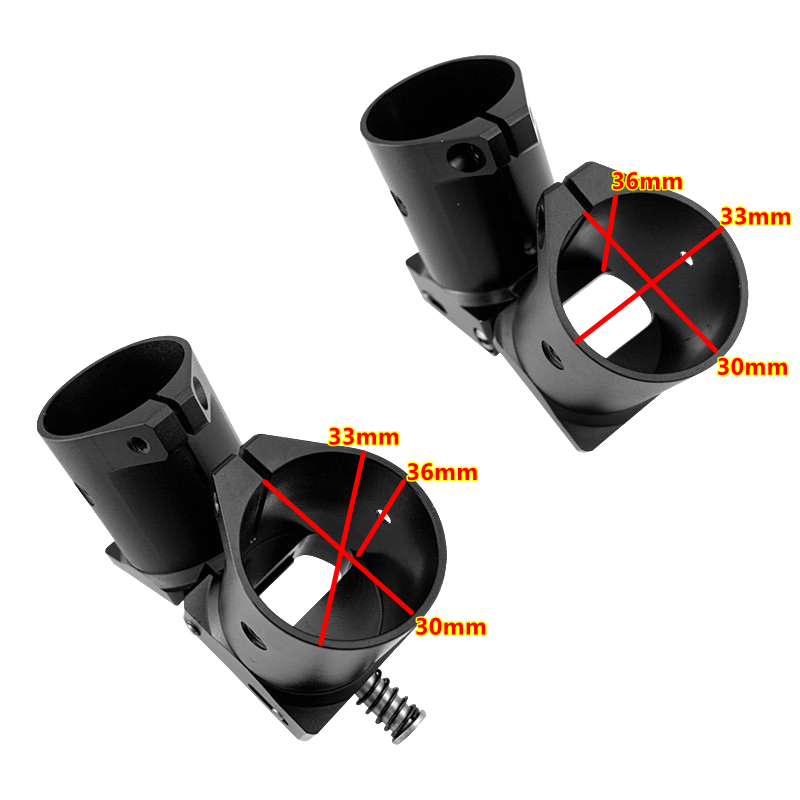

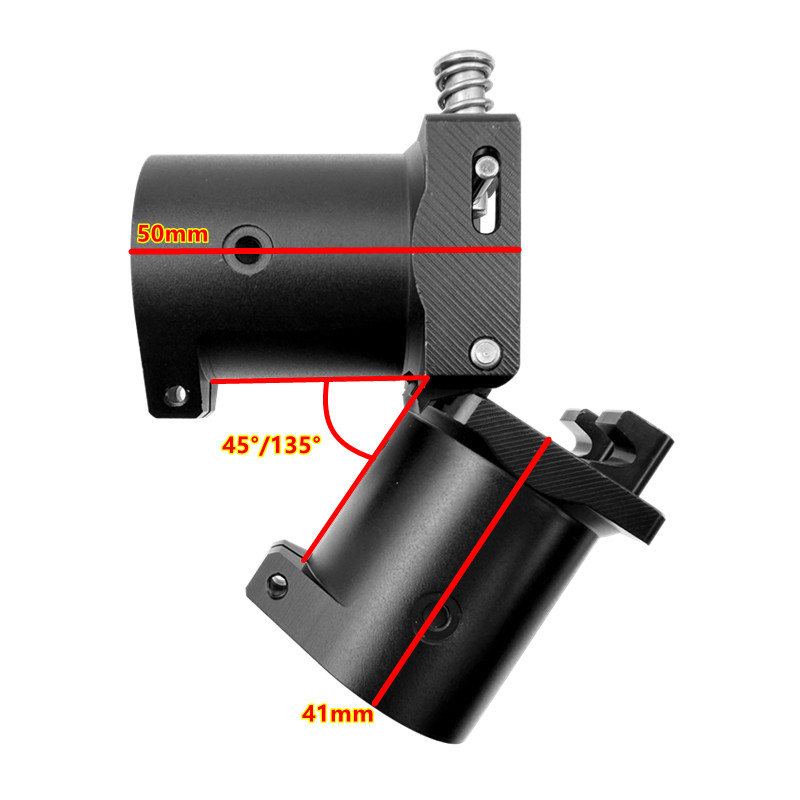

(30mm pipe diameter， 45°/135° ）

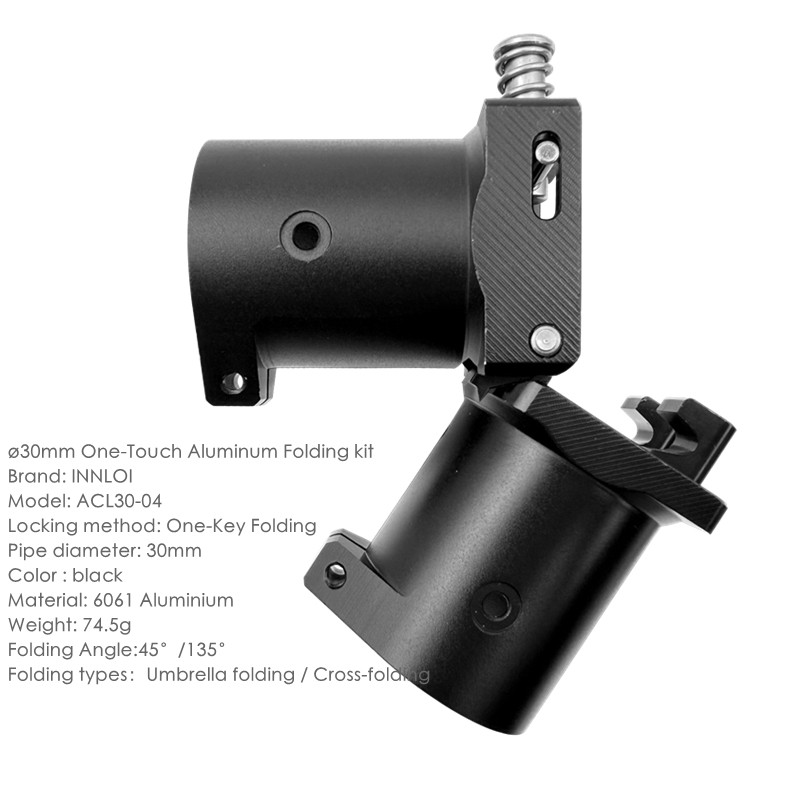

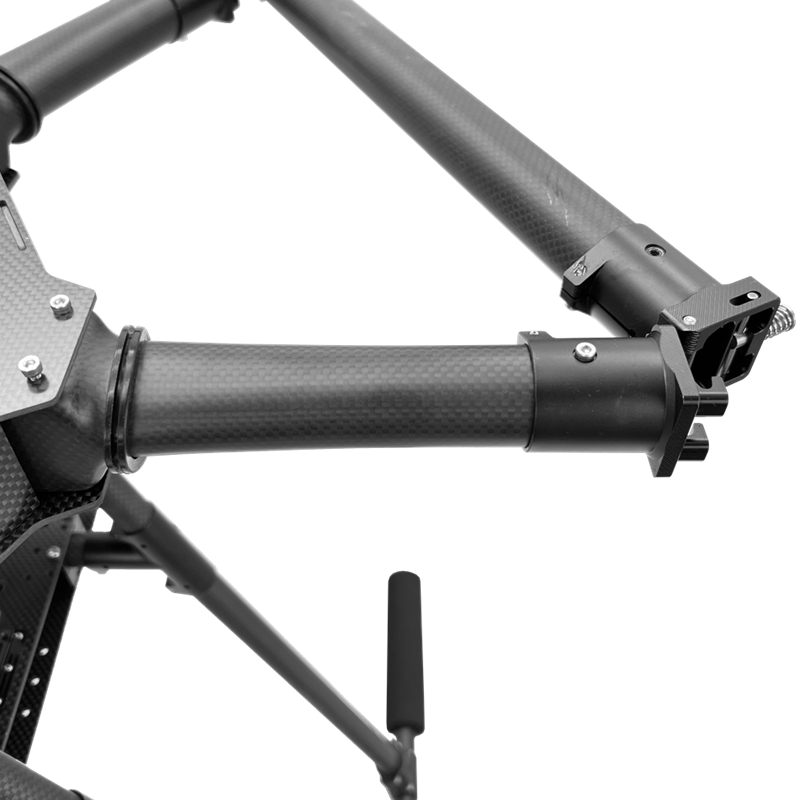

ACL30-04 ø30 Aluminum Folding kit:1pcs

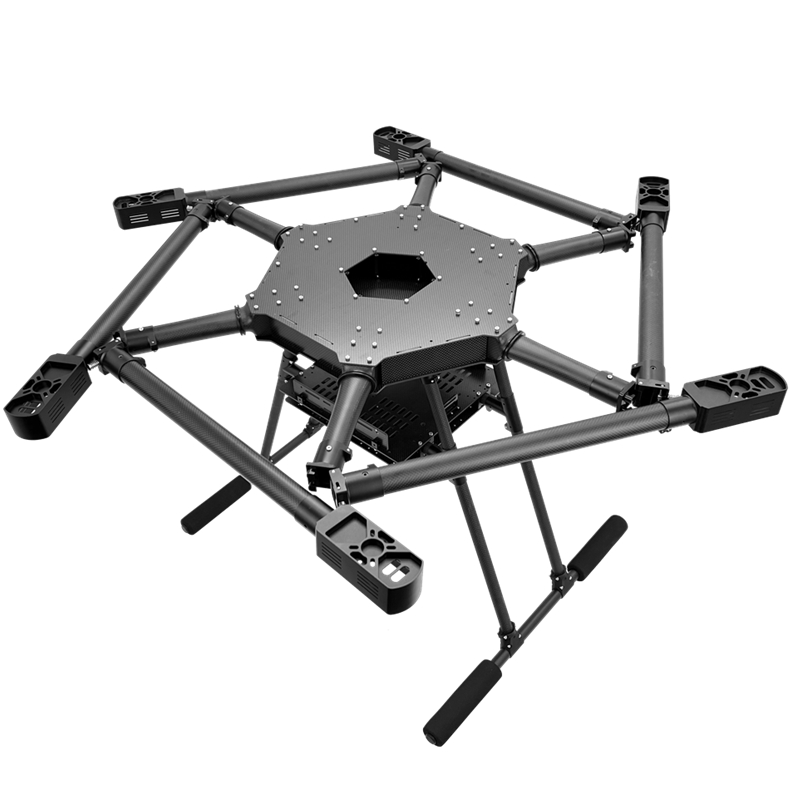

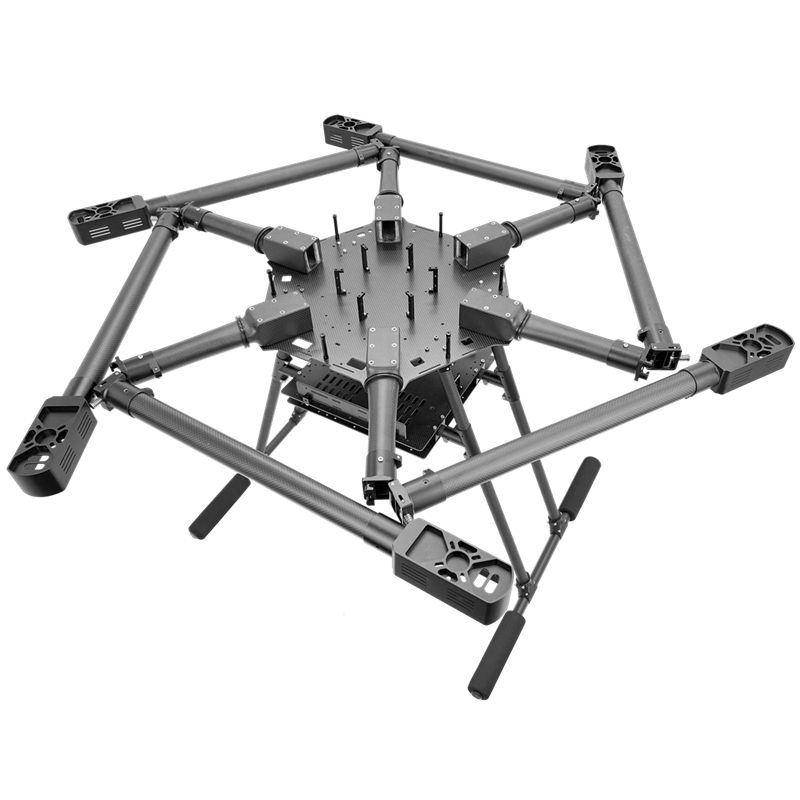

Heavy duty strength: 6061 aluminum alloy CNC precision machining, combining lightweight and high rigidity, specially designed for heavy-duty multi rotor unmanned aerial vehicles (crop protection aircraft, surveying aircraft, logistics unmanned aerial vehicles, etc.), anti vibration and anti fatigue, ensuring the safety of heavy load flight.
Large aperture wiring friendly: The inner hole space is sufficient to directly pass through the XT90 high current plug without splitting the cable, greatly improving installation efficiency and circuit reliability.

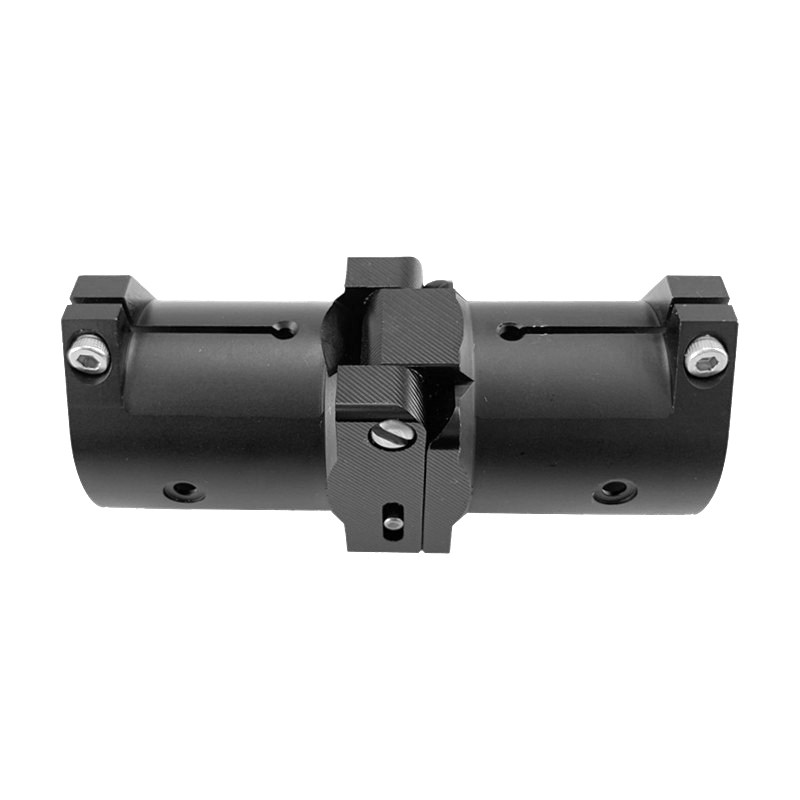

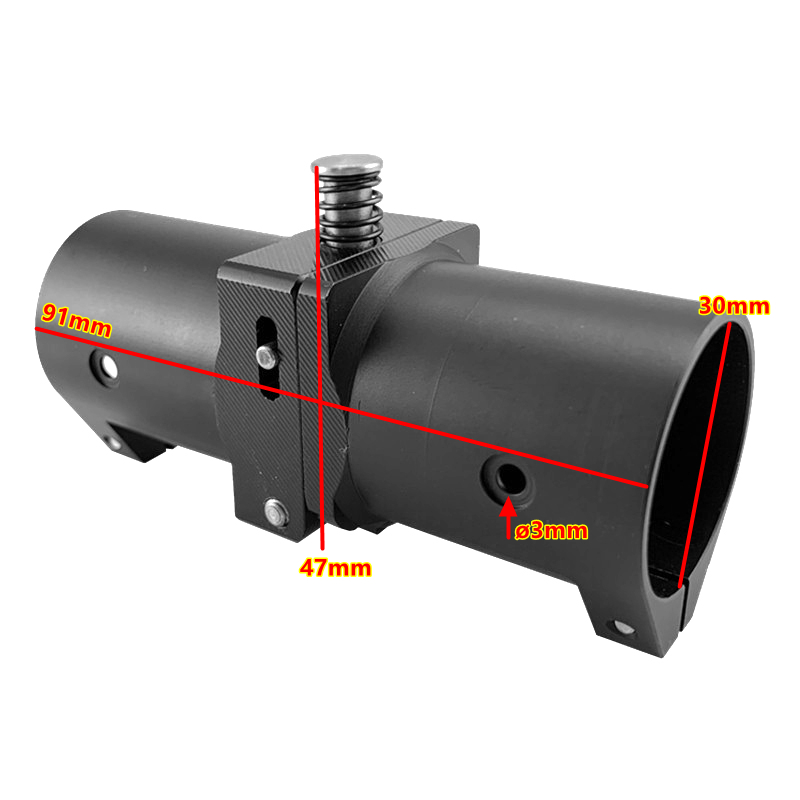

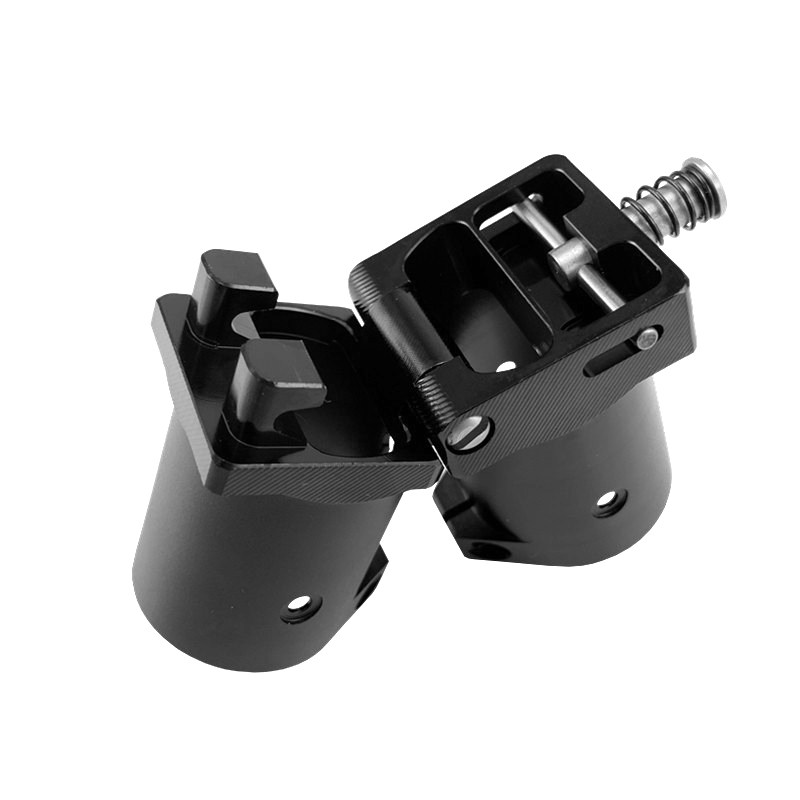

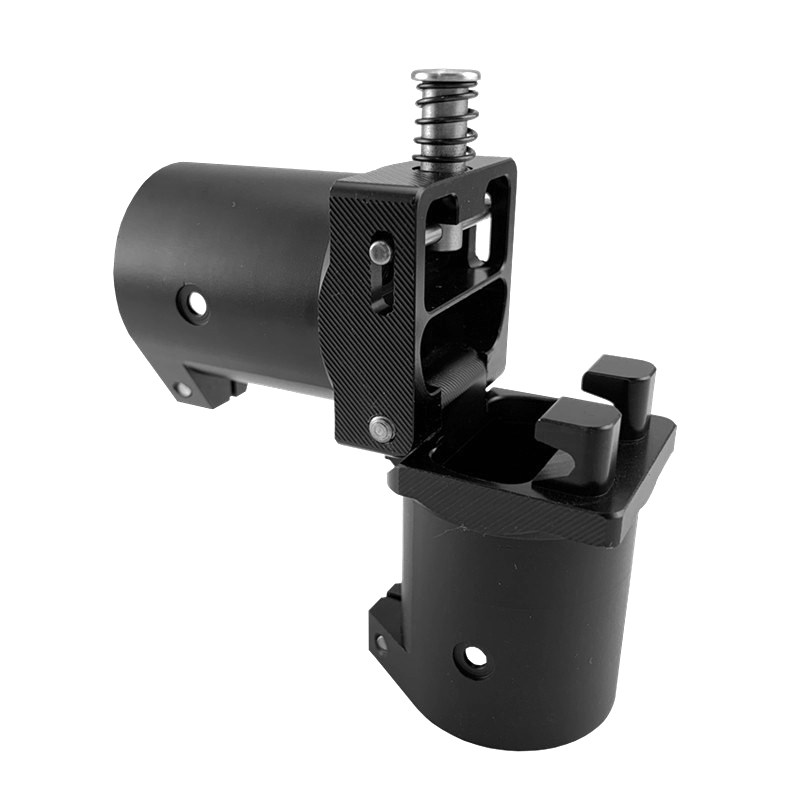

One click quick release locking: The top spring presses the lock buckle, which can be folded/unlocked with one hand. The locking is firm and not loose, and the folding/unfolding action is smooth and efficient.
Dual mode folding compatibility: Supports umbrella folding (downward) and side folding (horizontal folding), flexibly adapting to the layout requirements of different models.

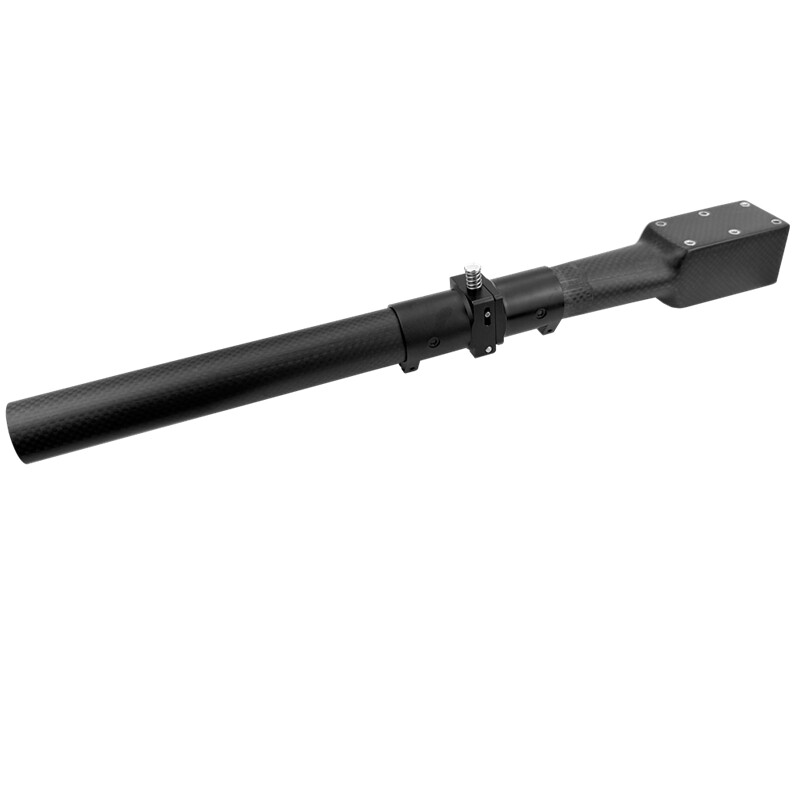

Multi scenario stable installation: Reserve precise hole positions, support three fixing methods of screws+242 thread glue/rivets/9940 AB glue, adapt to carbon fiber pipes and aluminum alloy pipes, and prevent loosening during flight.

Precautions
Only applicable to circular pipes with an outer diameter of 30mm. Deviation in pipe diameter may result in loose installation or inability to assemble;
Carbon nanotubes need to be fixed before temporary openings are made for reinforcement.
The thread locking adhesive and AB adhesive need to be completely cured before conducting flight testing;
Suggest using anti loosening nuts/washers to further enhance the safety of high-altitude operations.
