Picture Packing List:

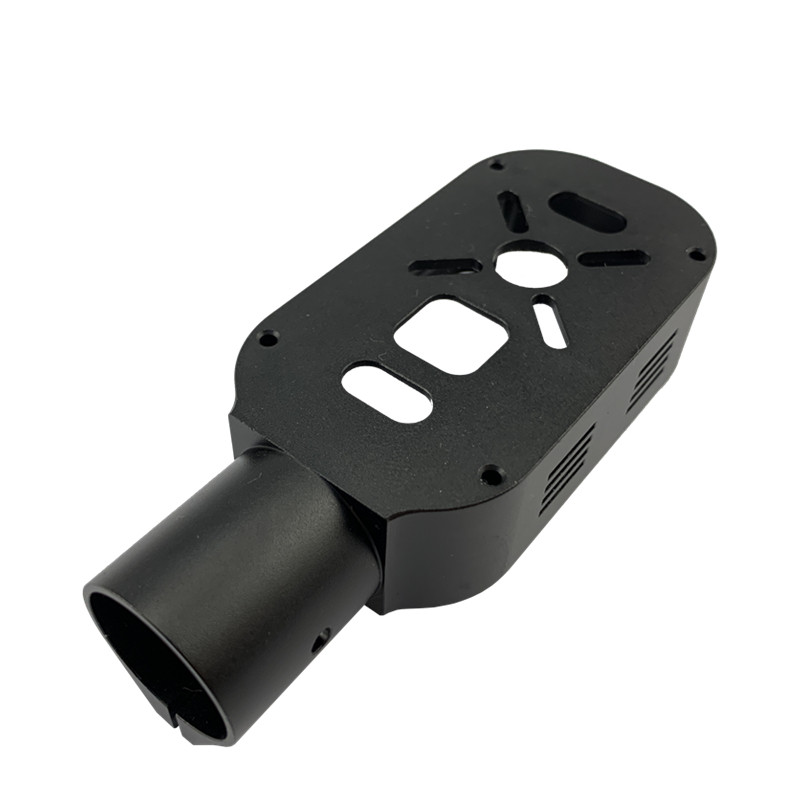

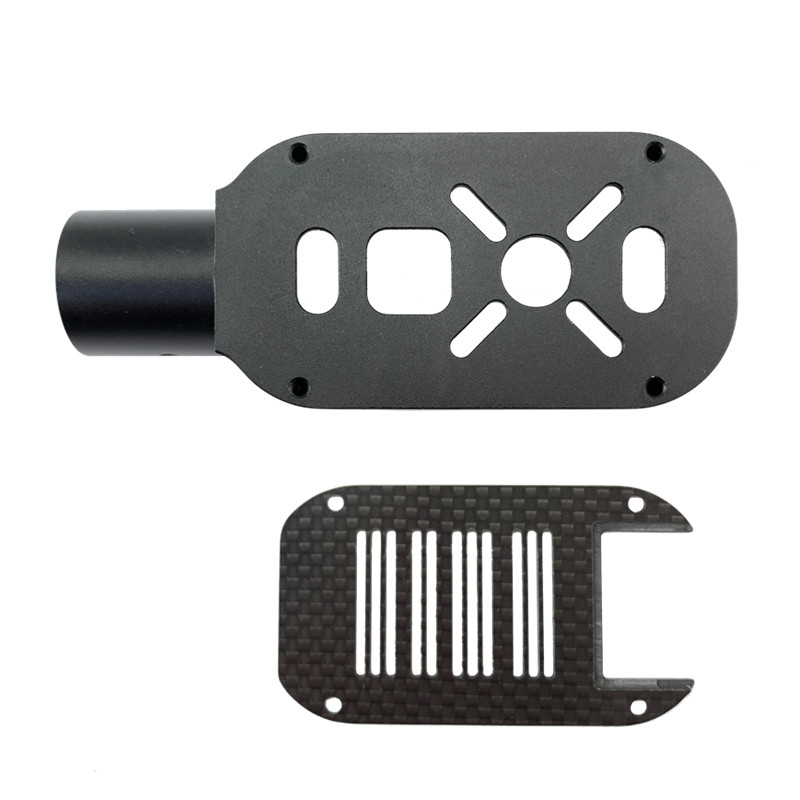

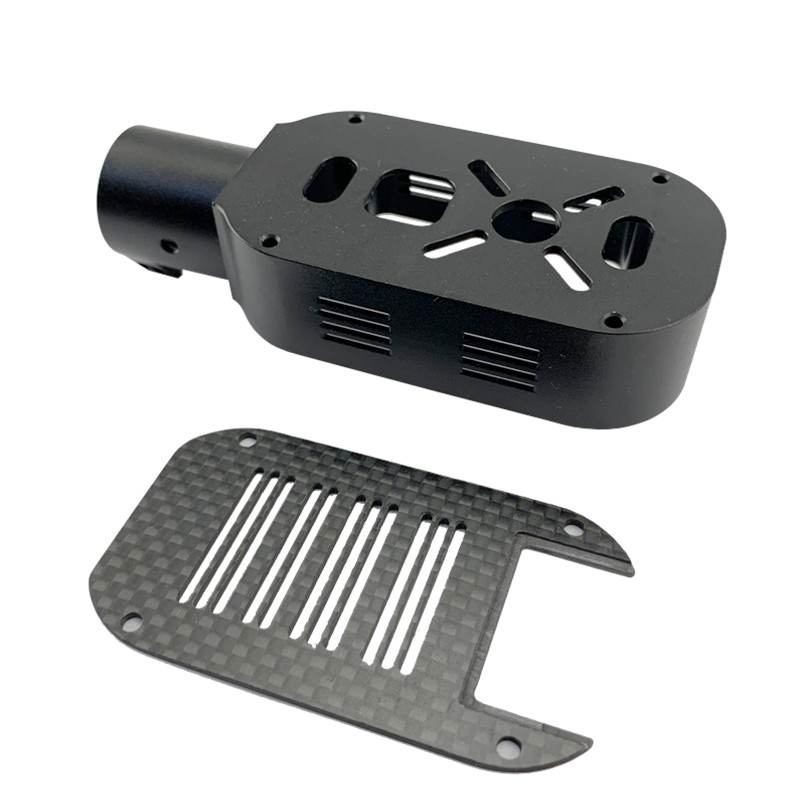

AML20-07 Motor Mount: 1pcs

NO.1 tie-in method:
AML20-07 Motor Mount: 1pcs

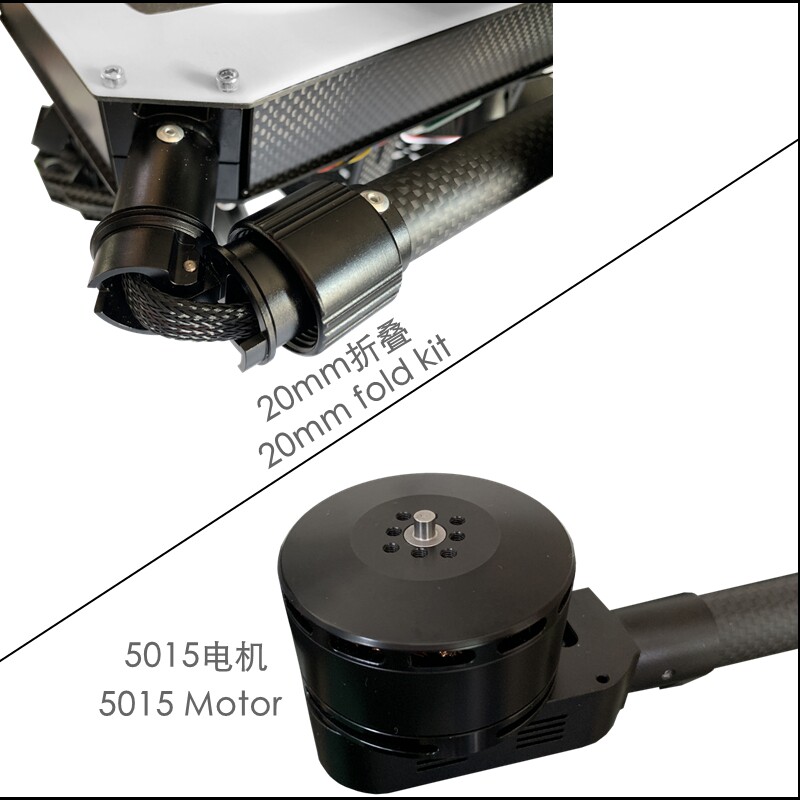

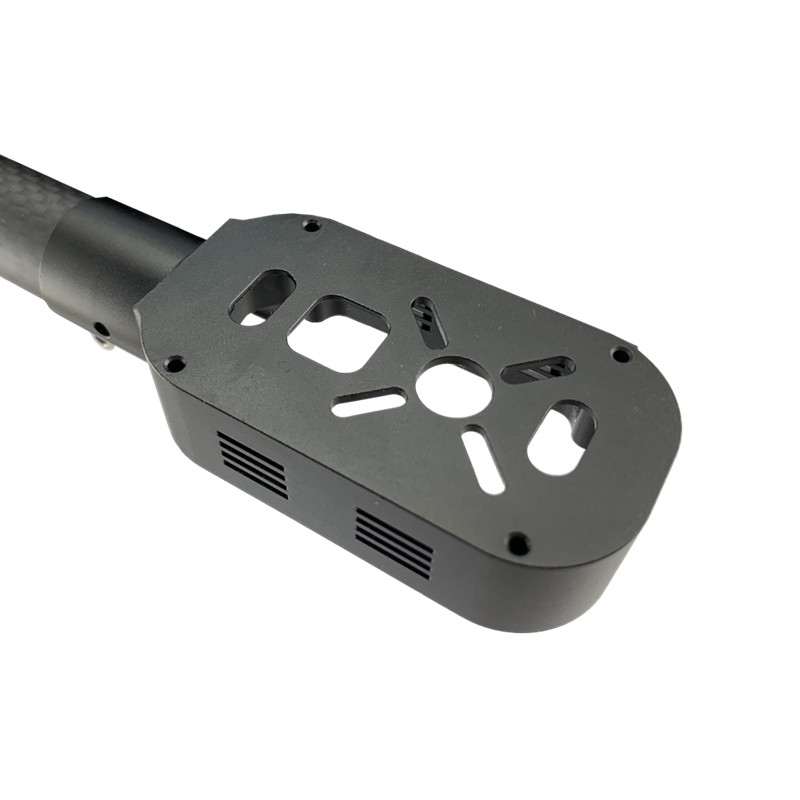

1.ø 20mm carbon fiber tube for motor mount.

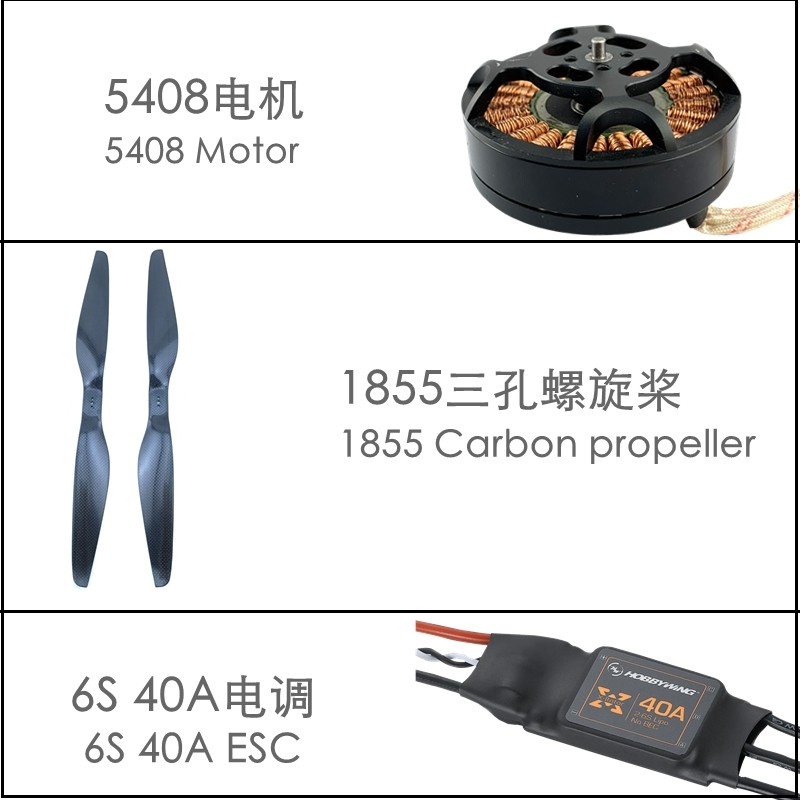

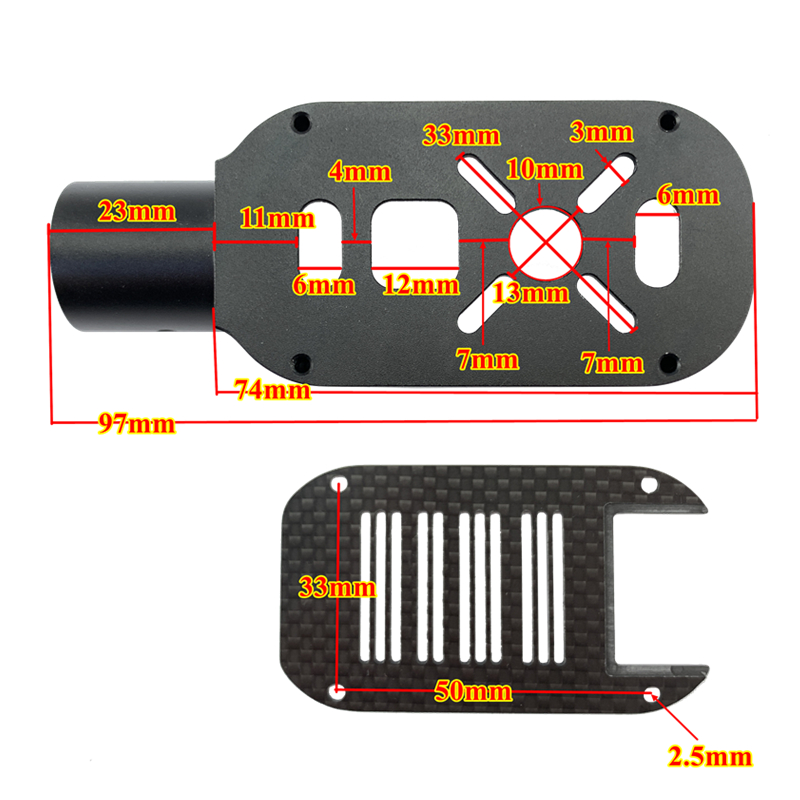

2.3110, 3508, 4110,4114, 5010,5015, 5408 It is designed for series or other brushless motorsuit ø3 holes, with a hole pitch of 16-30mm.
3. Made by Aluminiium 6061 alloy.

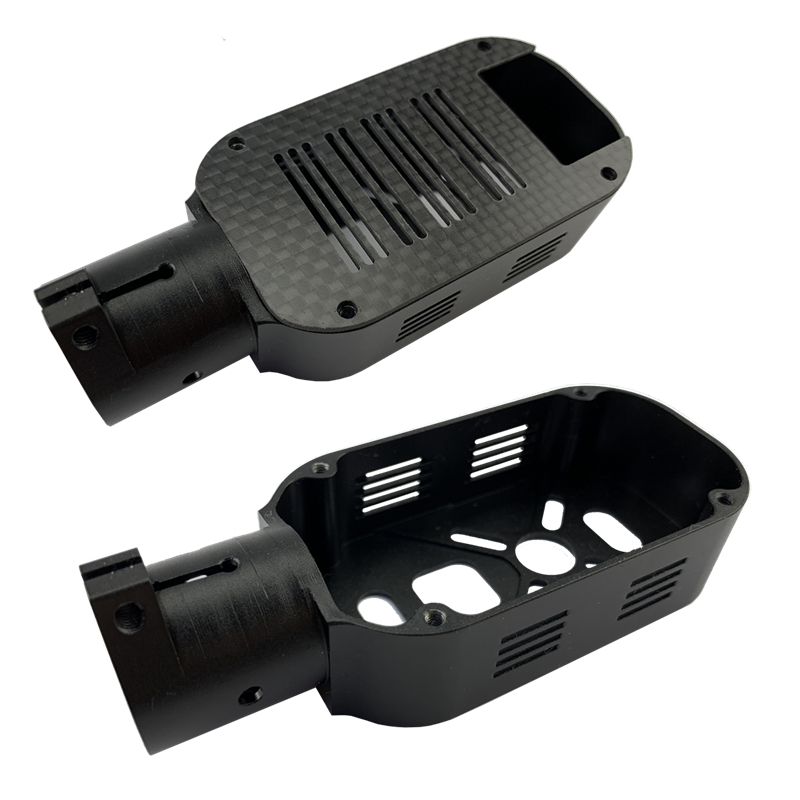

4. Motor mount for ESC compatible with hobbywing 6s 40A, 60A and Tmotor 6s 40A ESC.

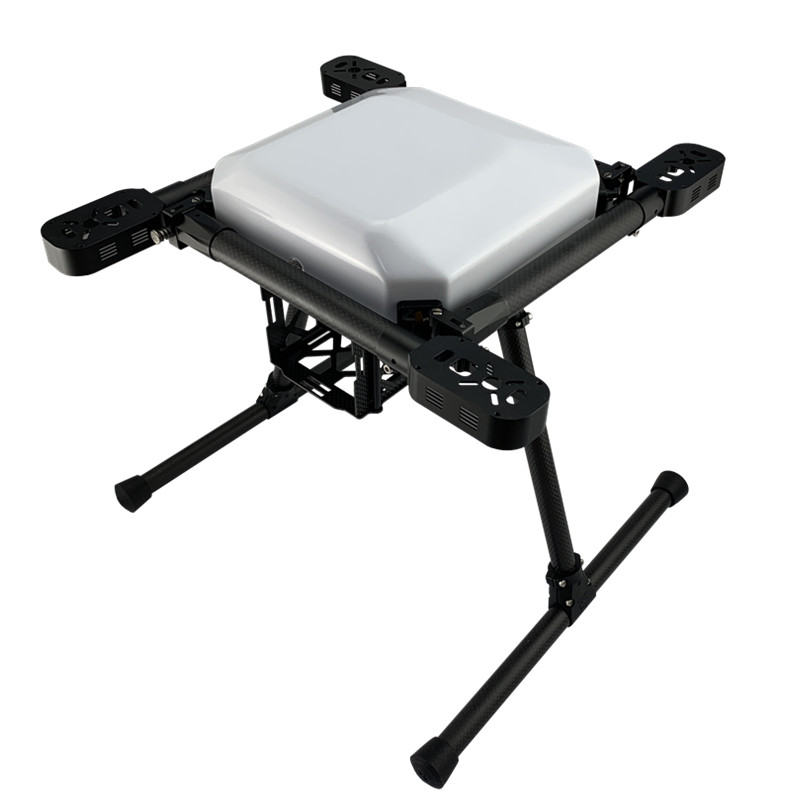

5. If you want to design or build your own drone, it is a reliable joint of the drone frame.
6. When installing the part, 242 glue should be applied to the screw to avoid loosening the screw when flying.
7. When you receive the product, it's just all the parts and not assembled well.

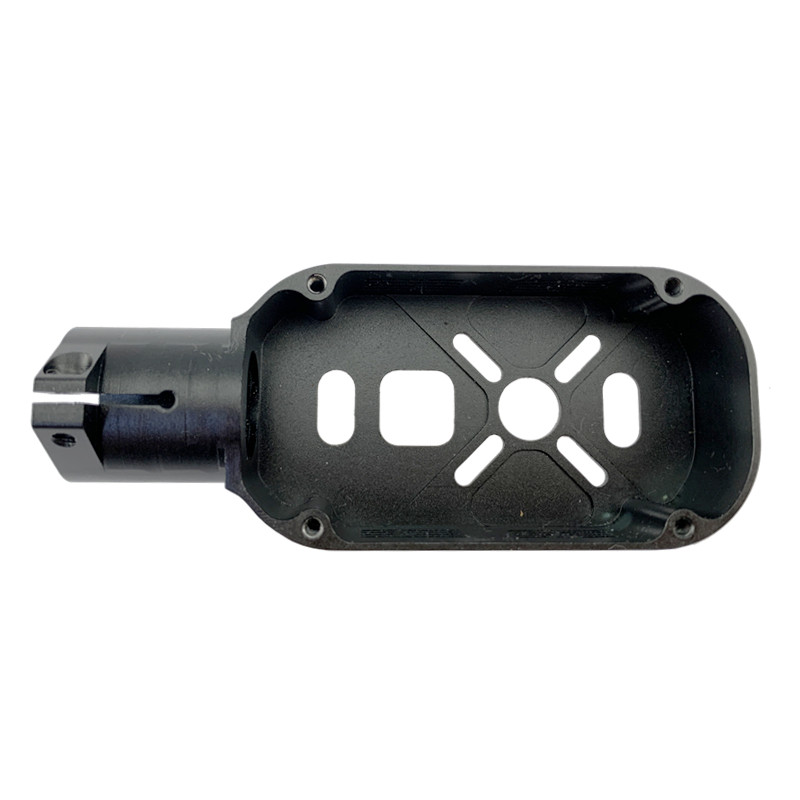

8. The aluminum alloy connector has a hole, you need to open the hole in the arm tube by yourself to install it.

* The motor mount does not include ESC and wire.

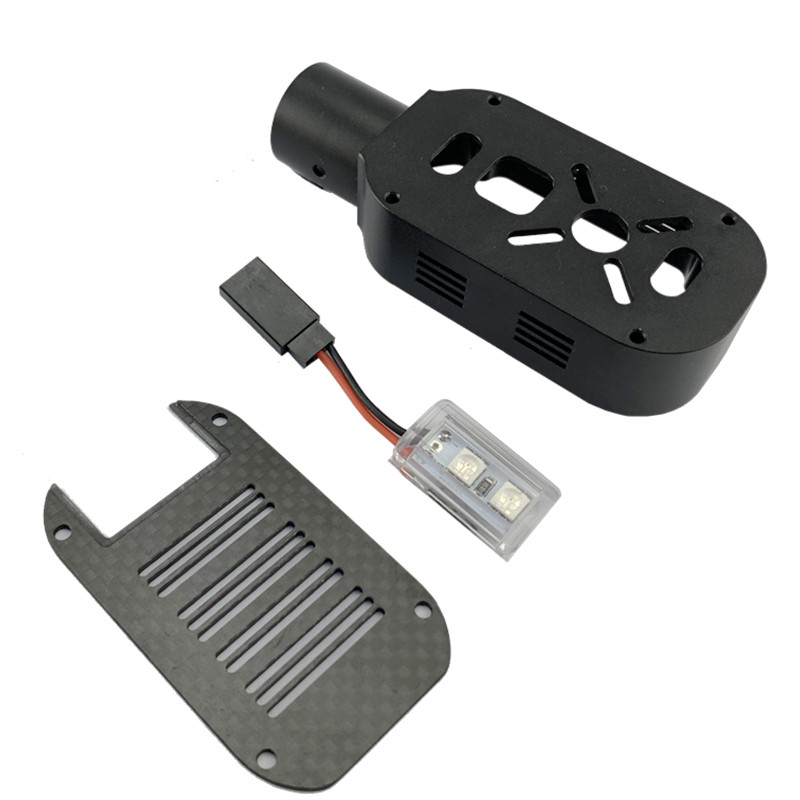

The light has 5 colors adjustable through mini swtich
For ESC with BEC or individual 5V power supply
