Picture Packing List:

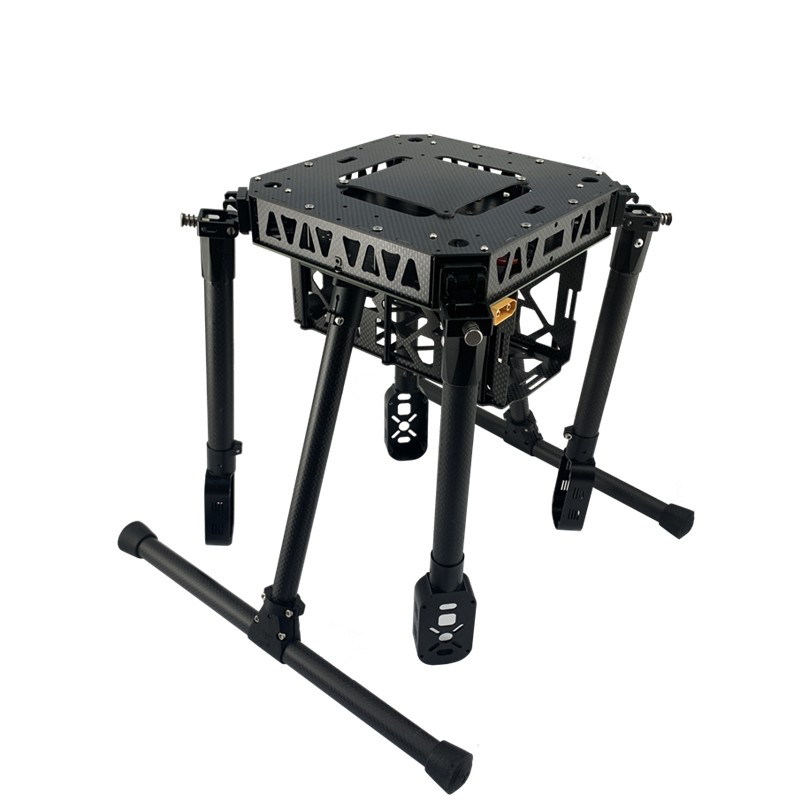

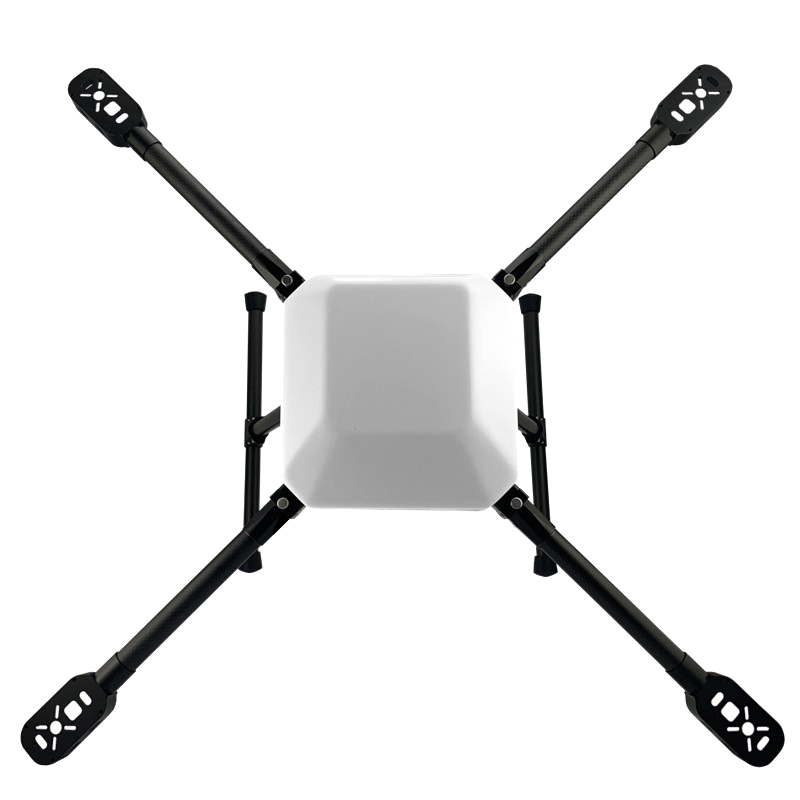

CL750 810mm Quadcopter Folding Frame: 1 set
18-18 Landing Gear: 1 set

NO.1Tyne Way:

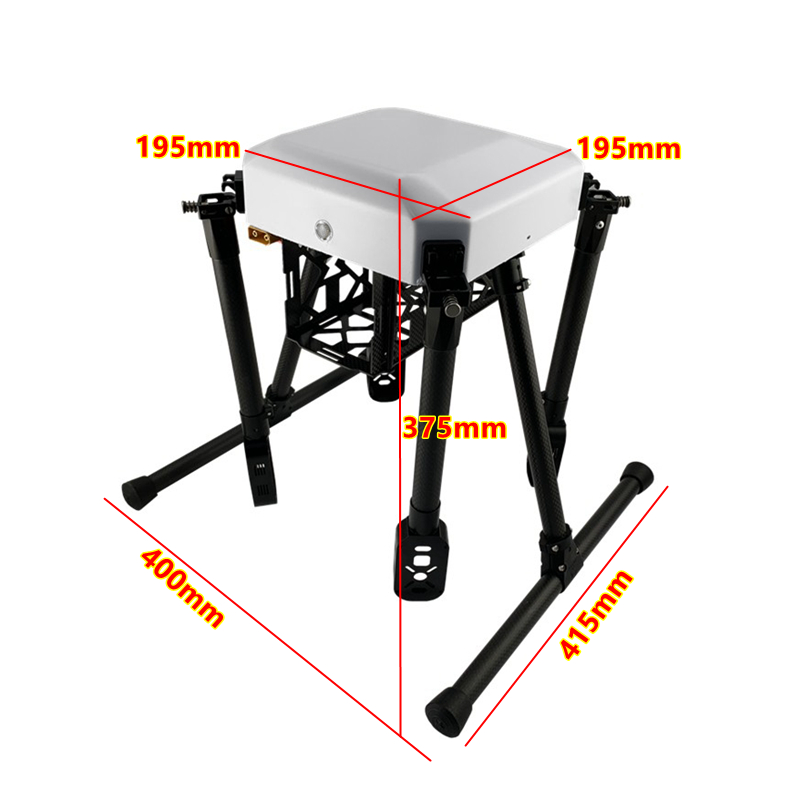

(Oblique: 810mm)

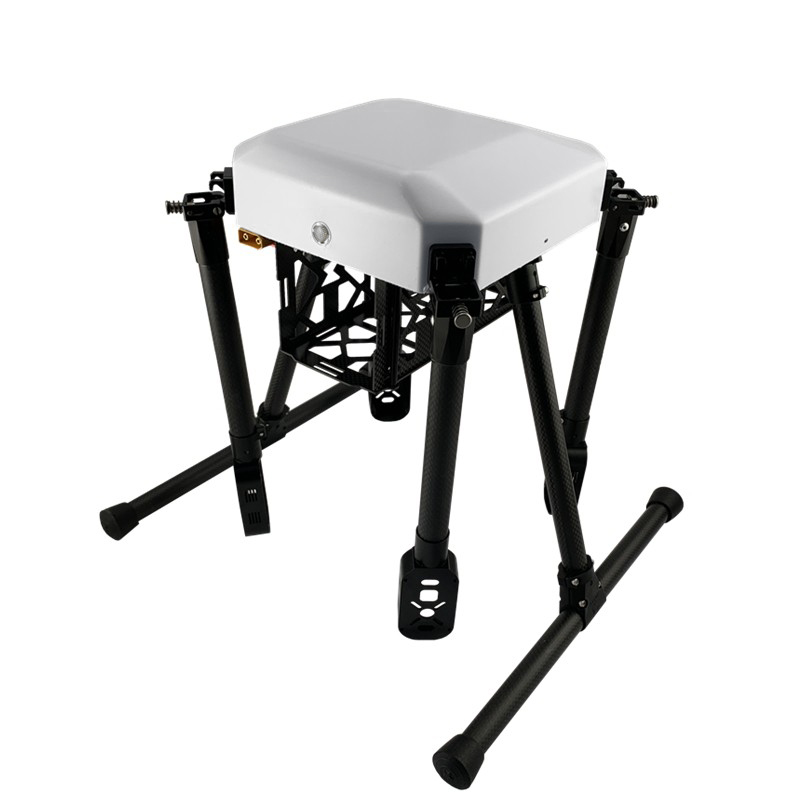

CL750 810mm Quadcopter Folding Frame: 1 set
18-18 Landing Gear: 1 set

1. This frame kit does not include landing gear.

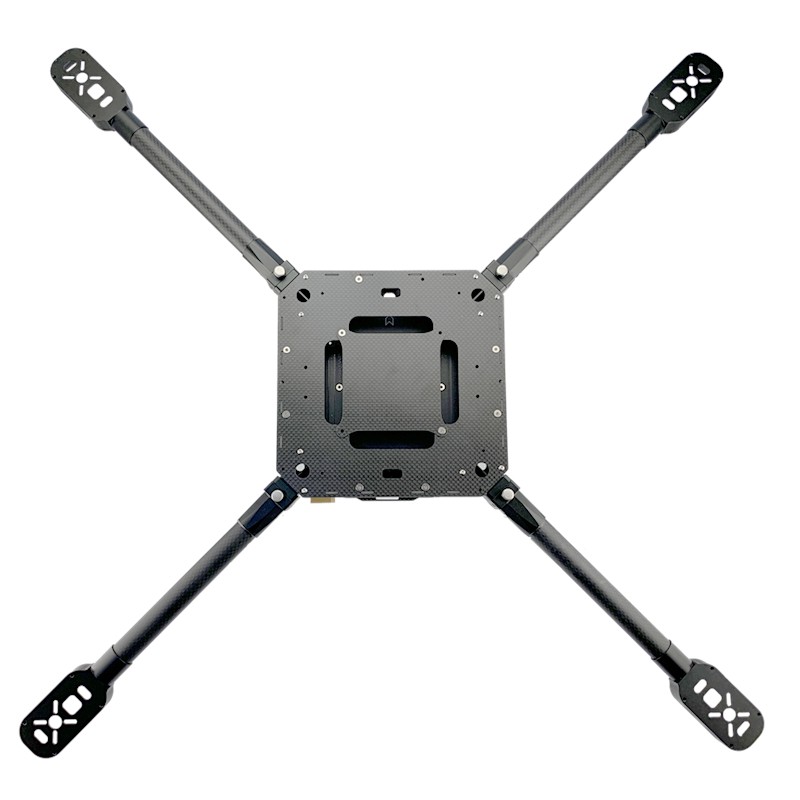

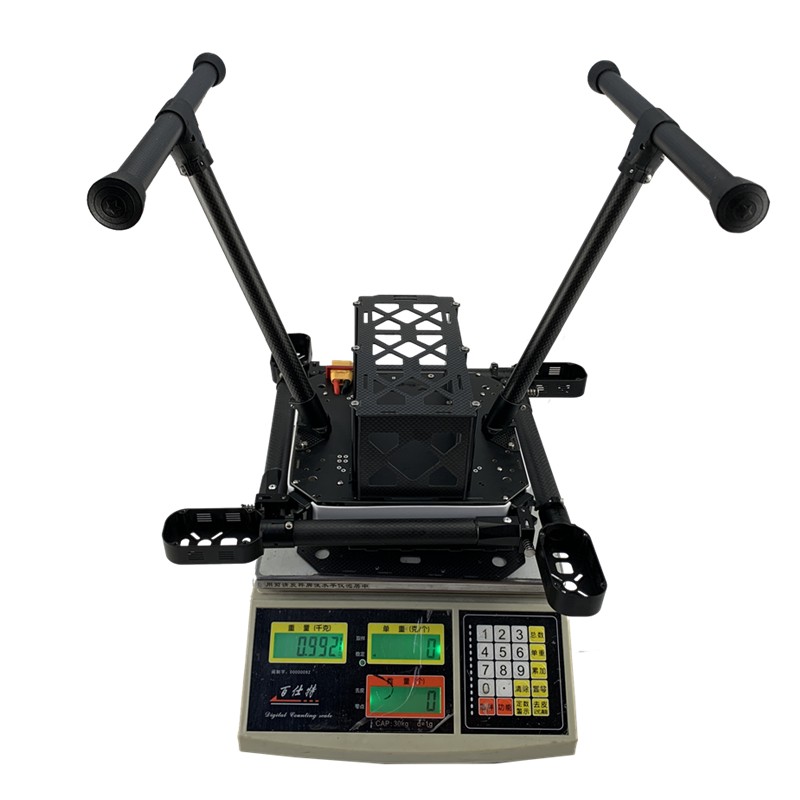

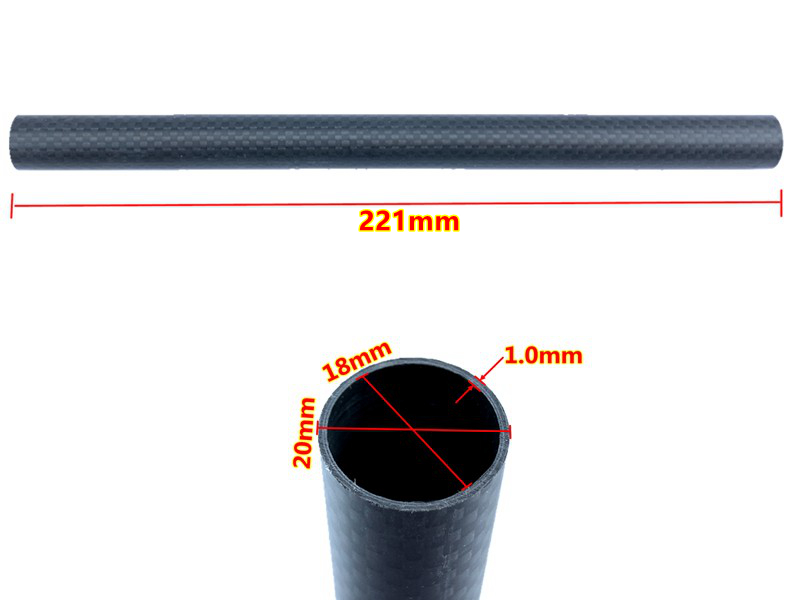

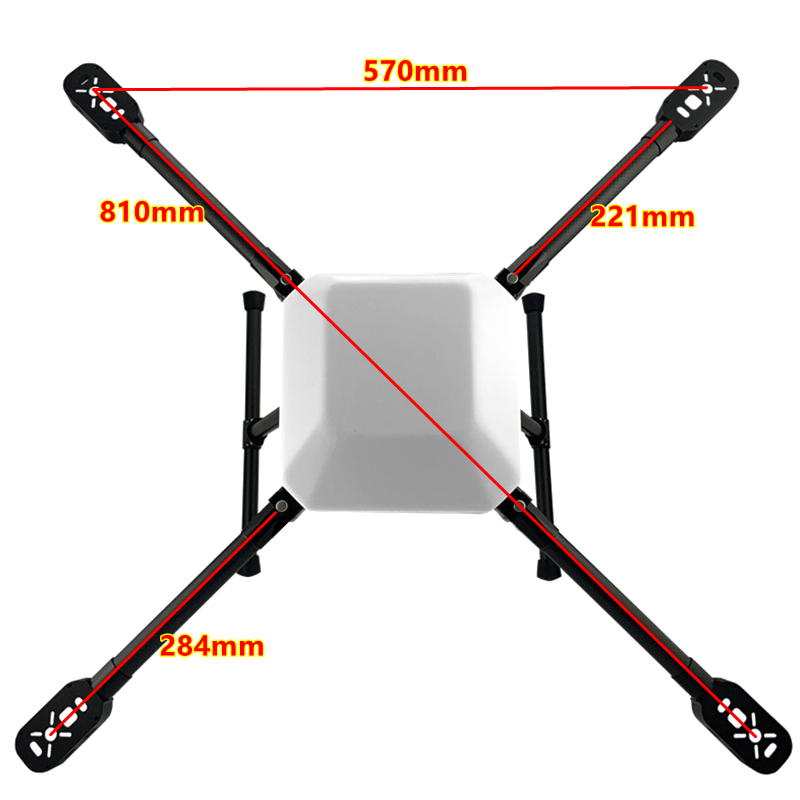

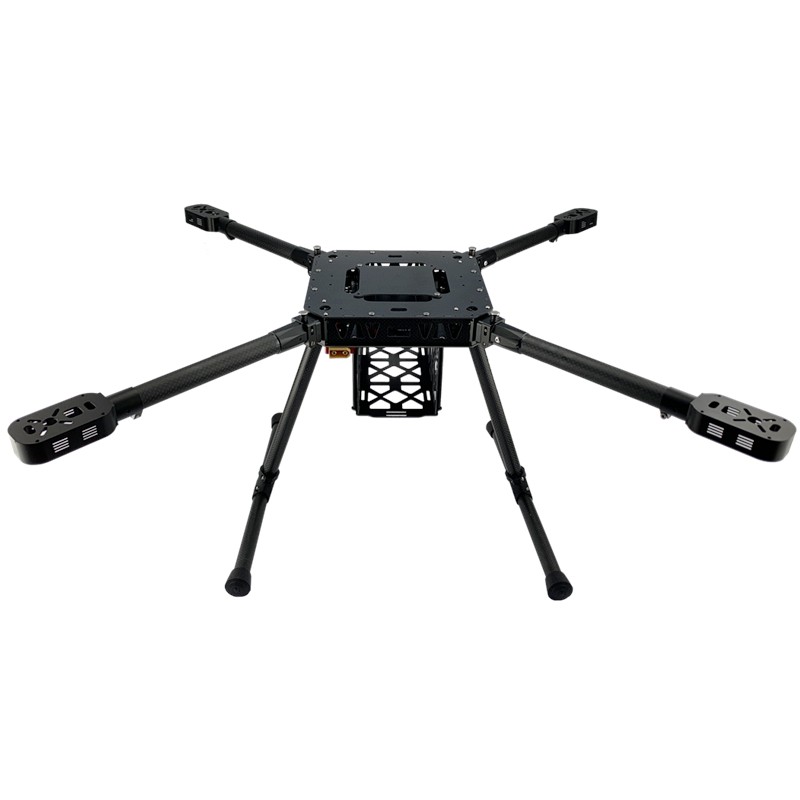

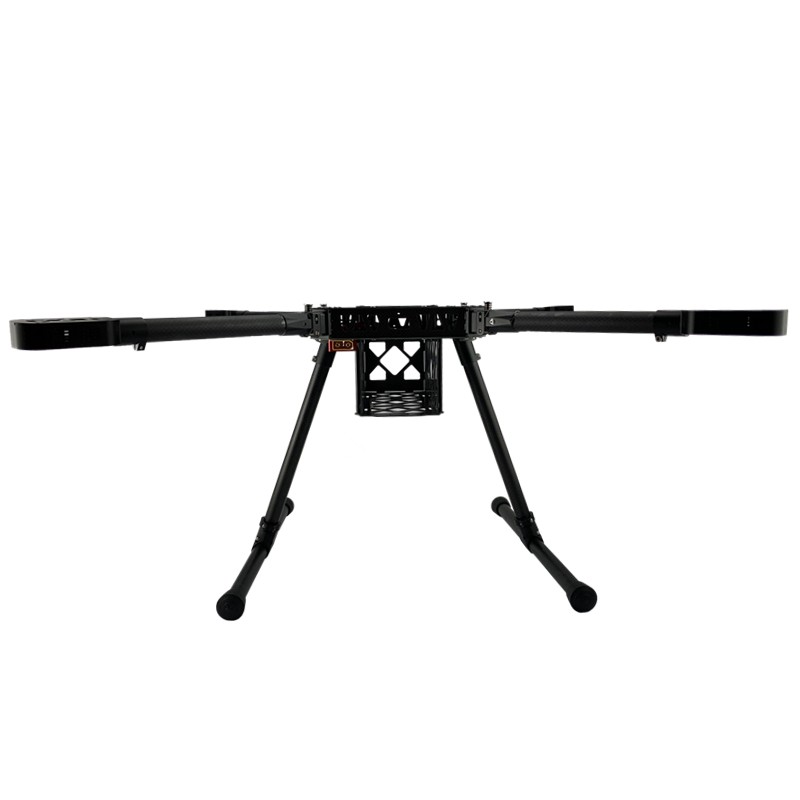

2. The frame body is made of full carbon fiber, the wheelbase is 810mm, and the full frame body with the weight of the landing gear is about 1kg.

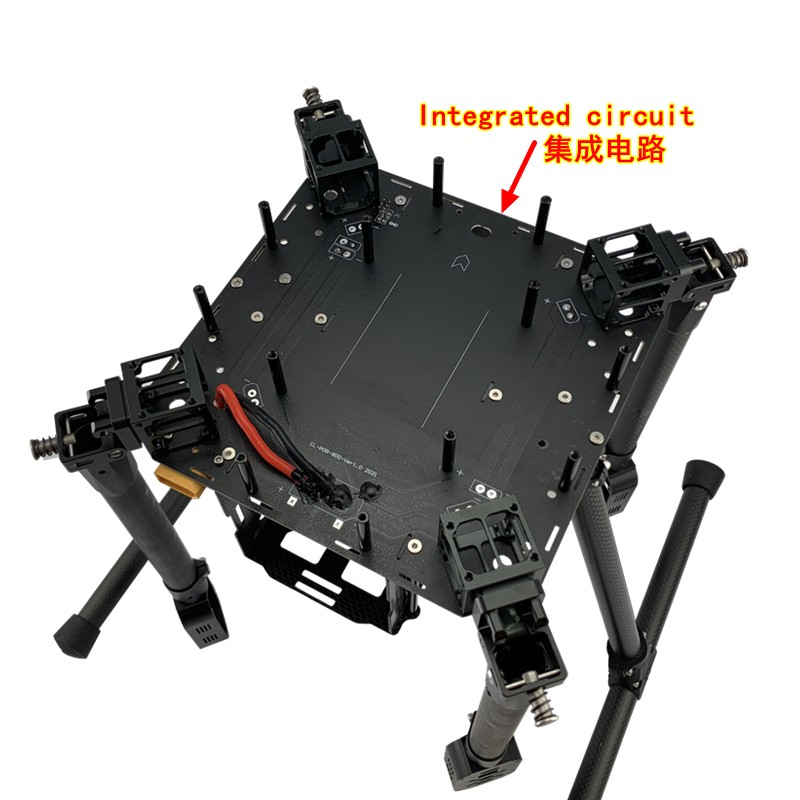

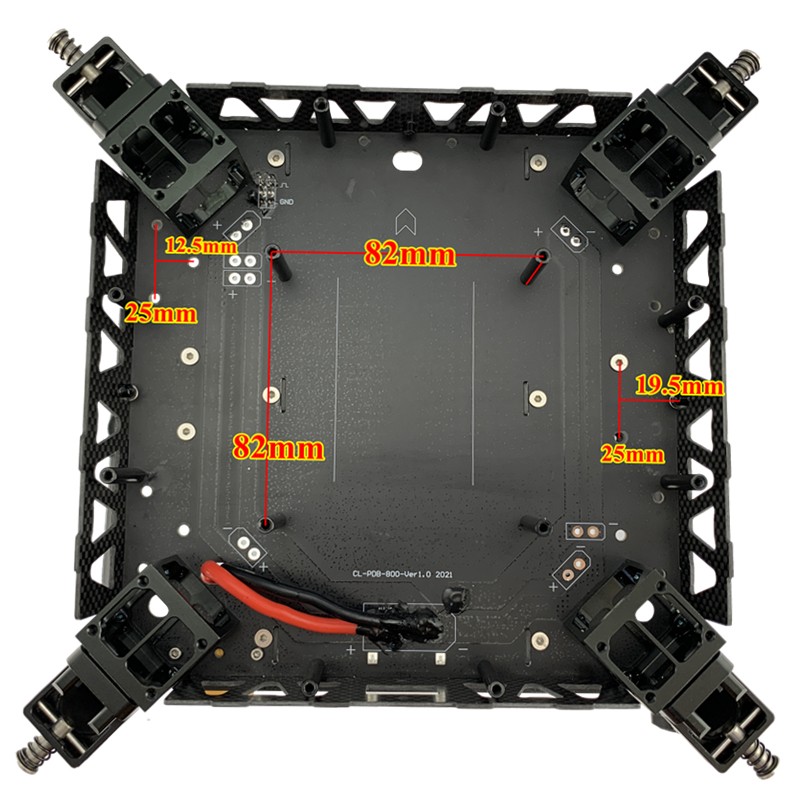

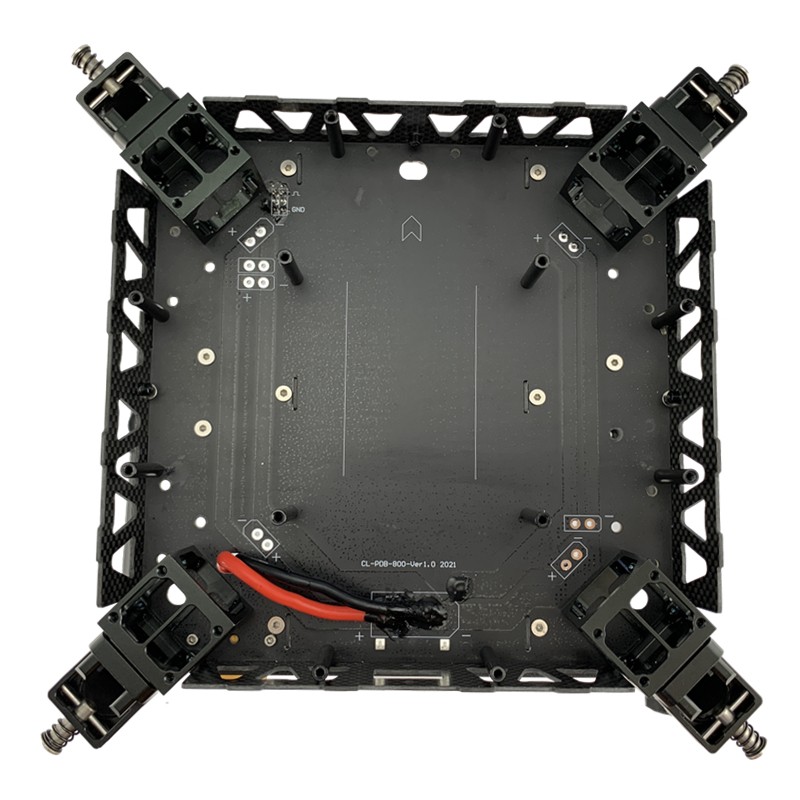

3. The bottom center plate of the frame body is used for integrated circuit, high-speed connection, more convenient and safe.

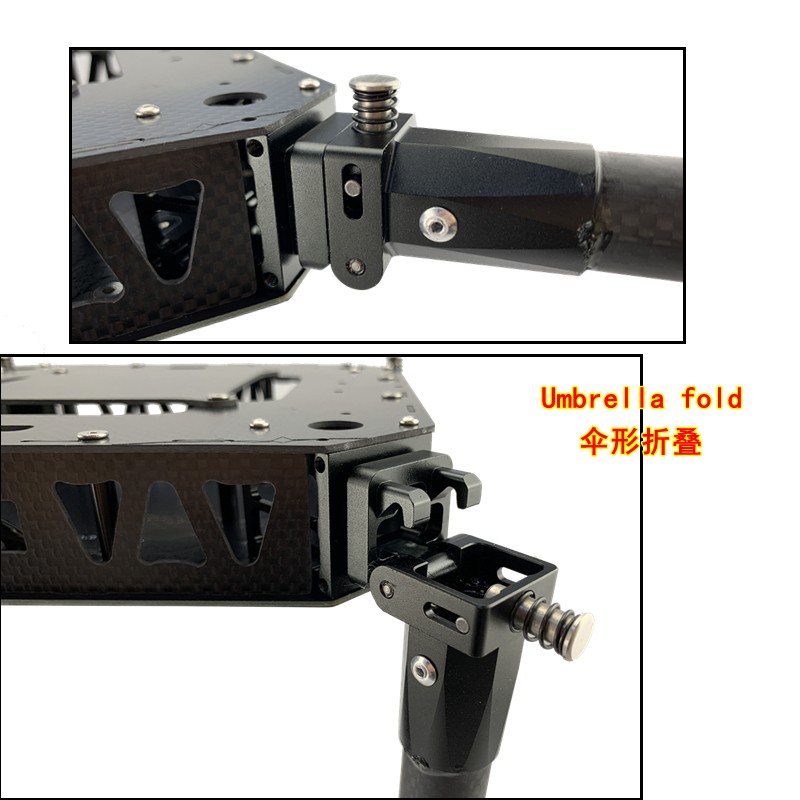

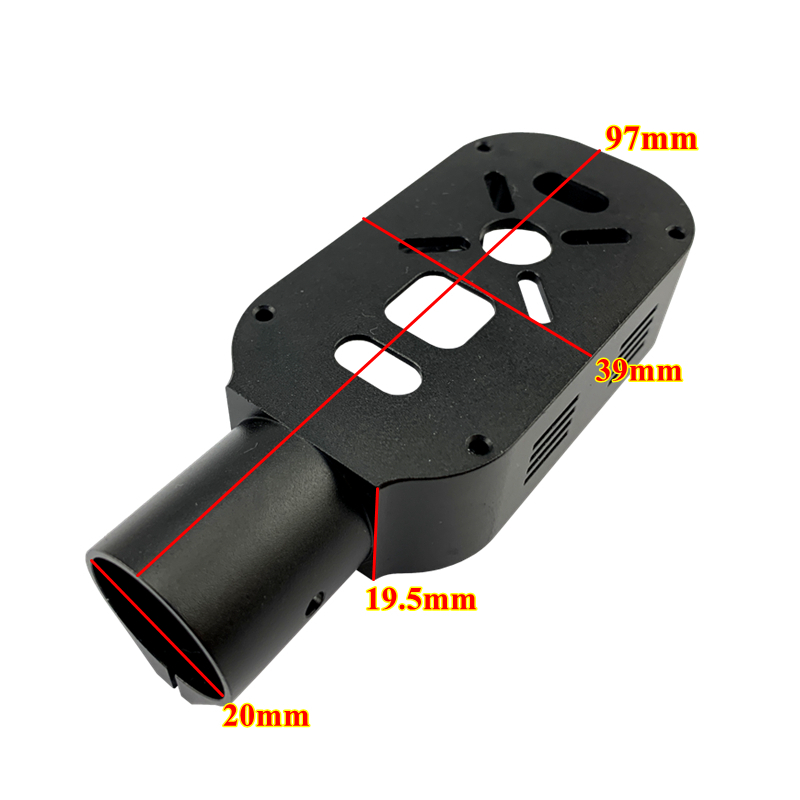

4. The folding joint is made of 6061 aluminum alloy and weighs about 41g.

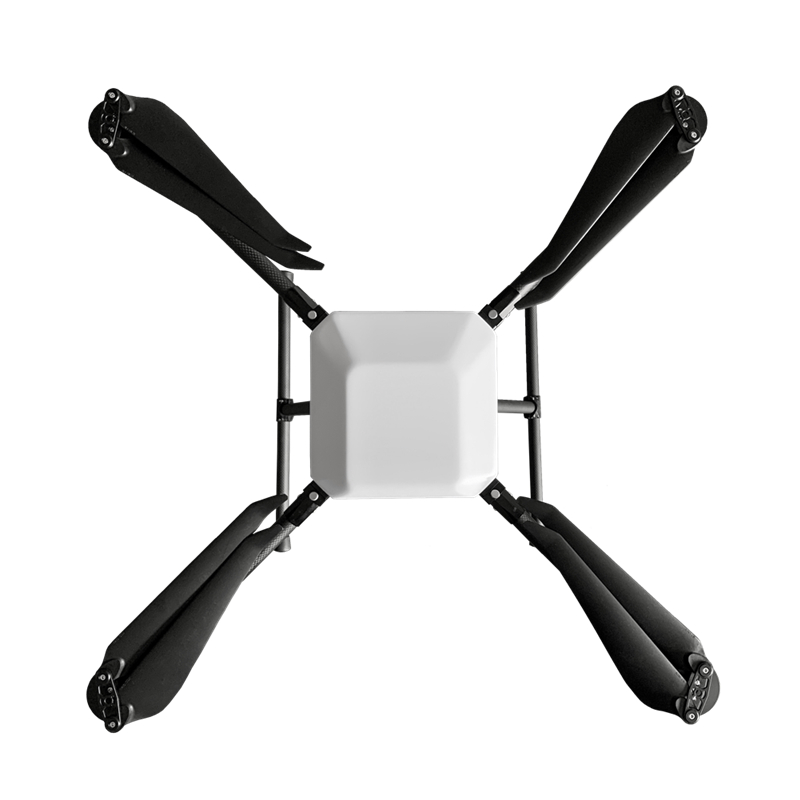

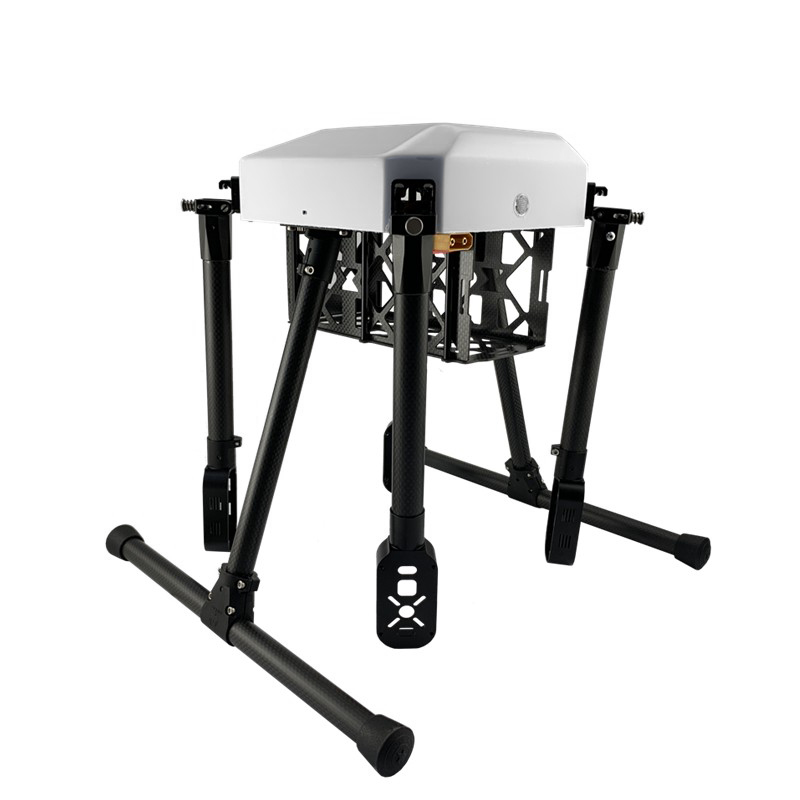

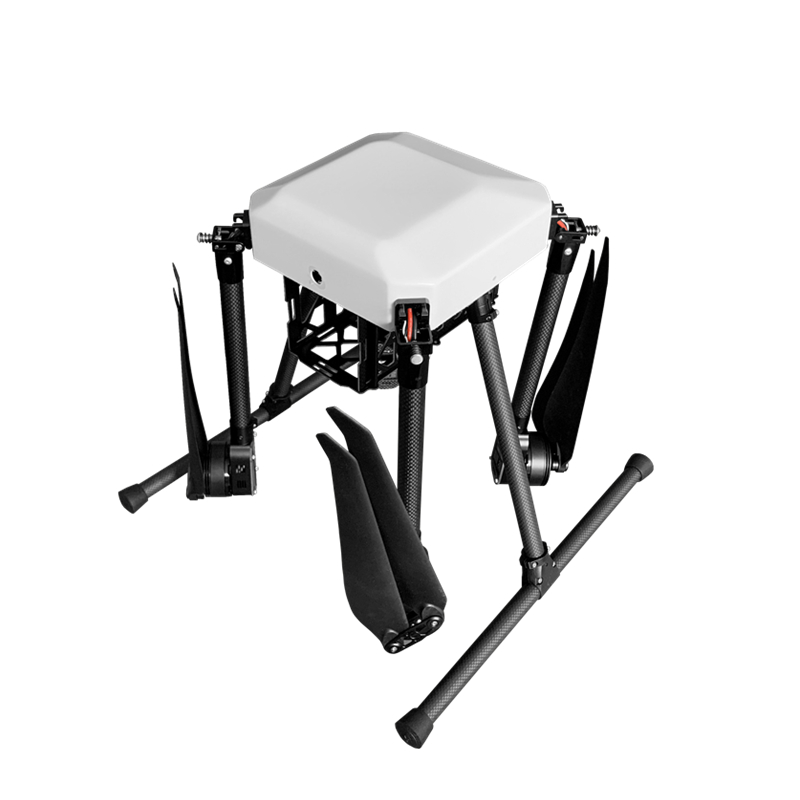

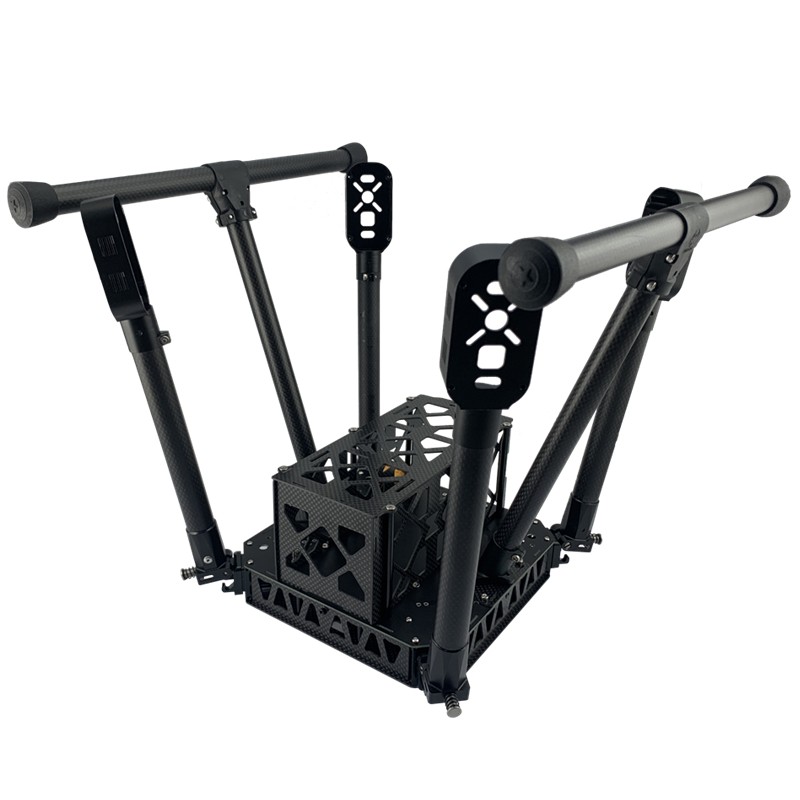

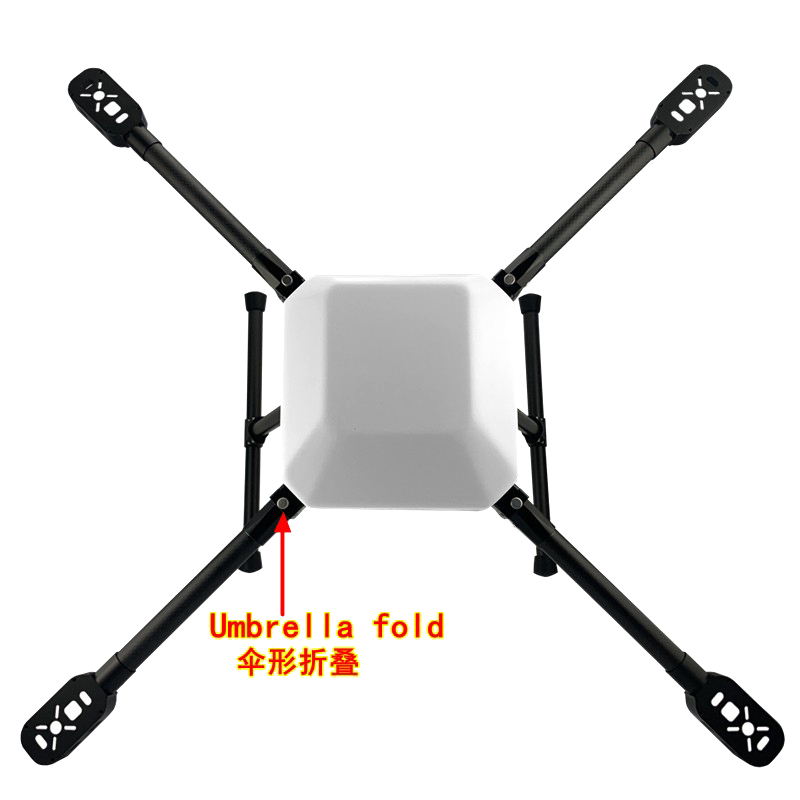

It can be used for two kinds of folding: umbrella folding and cross folding.

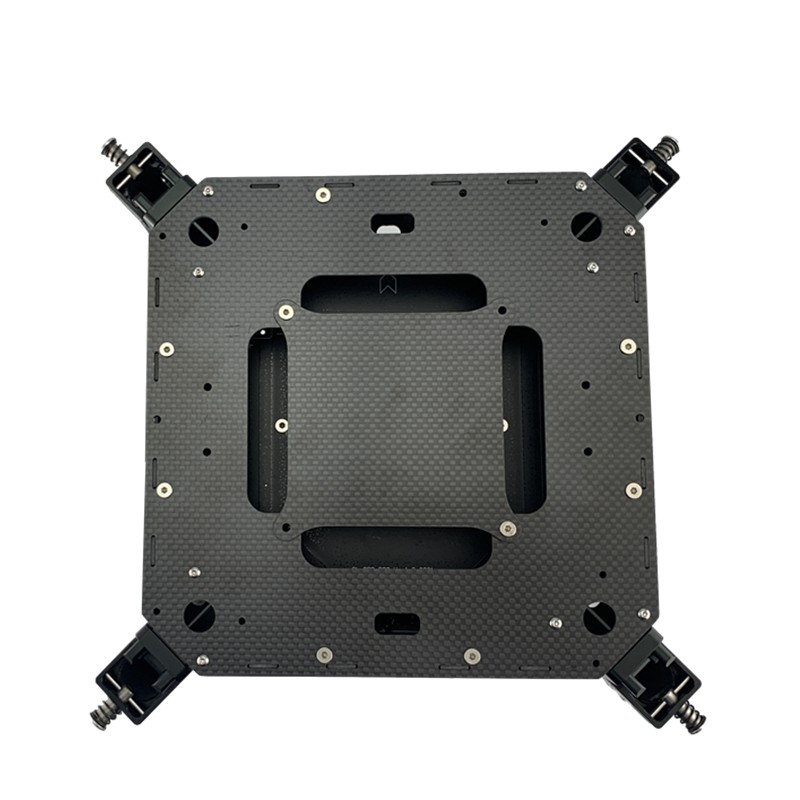

(Users can pay attention to the hole in the center plate, which is changed according to the folding type of the folding joint, and choose the folding joint for the folding or cross folding of the umbrella.)

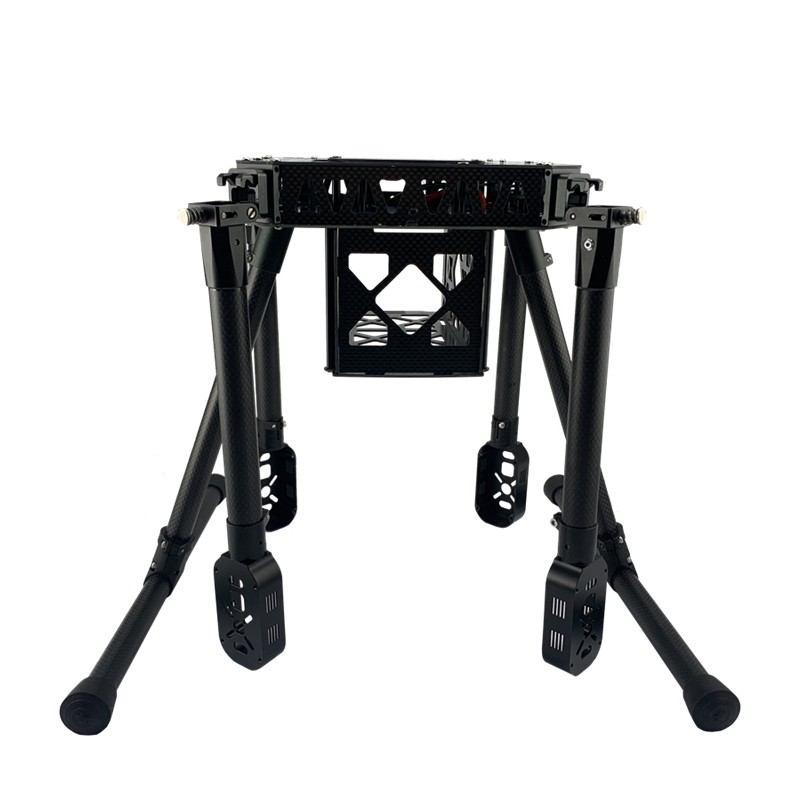

5. Battery case size: 80*80*190mm, 6s 16000mAh there is enough space to ask for solid battery and other types of batteries.

6. At the bottom of the battery case, there are some holes to look for lights to install other equipment, 10X camera gimbal, etc.

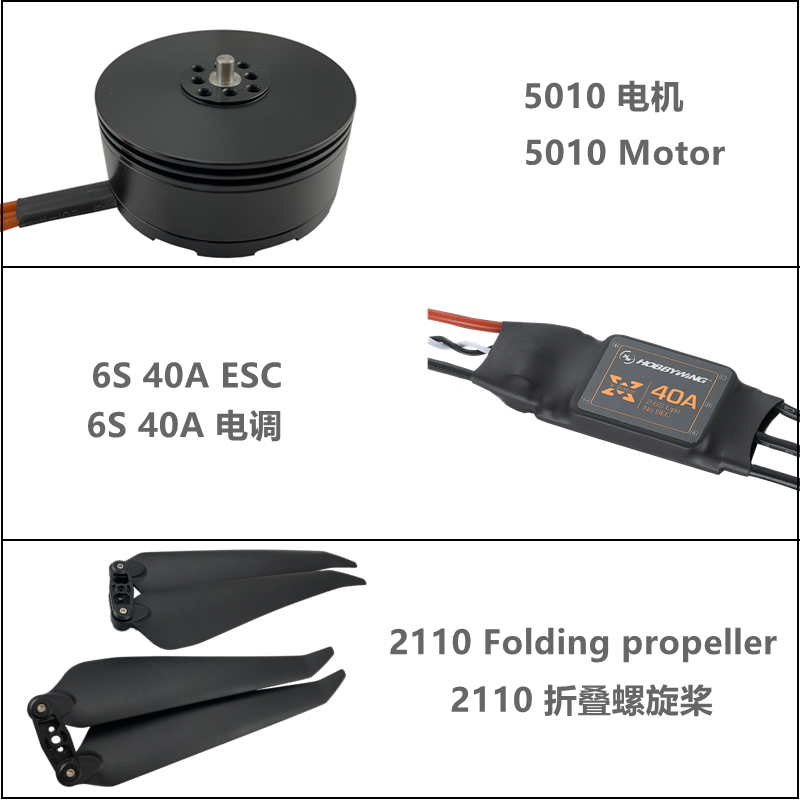

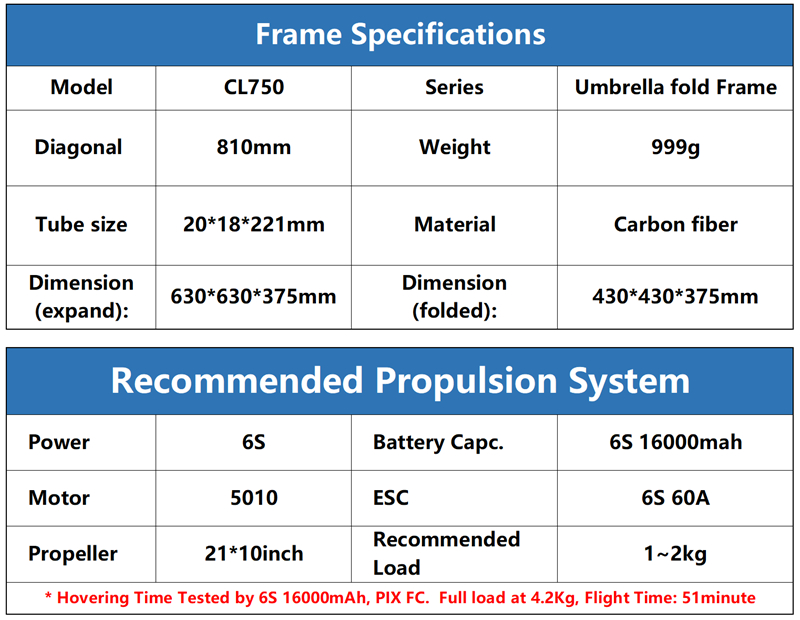

7. This frame kit can run an 810mm wheelbase; with a 5010 motor, 6s 40A ESC, 2110 folding propeller, 6s 16000mAh semi-solid battery, and PIX flight controller machined, the drone hovers up to 70 minutes (no payload).
With a payload weighing 1kg, the hovering flight time is about 50 minutes.

(Flight time test results are for the tulle test.)
