Picture Packing List:

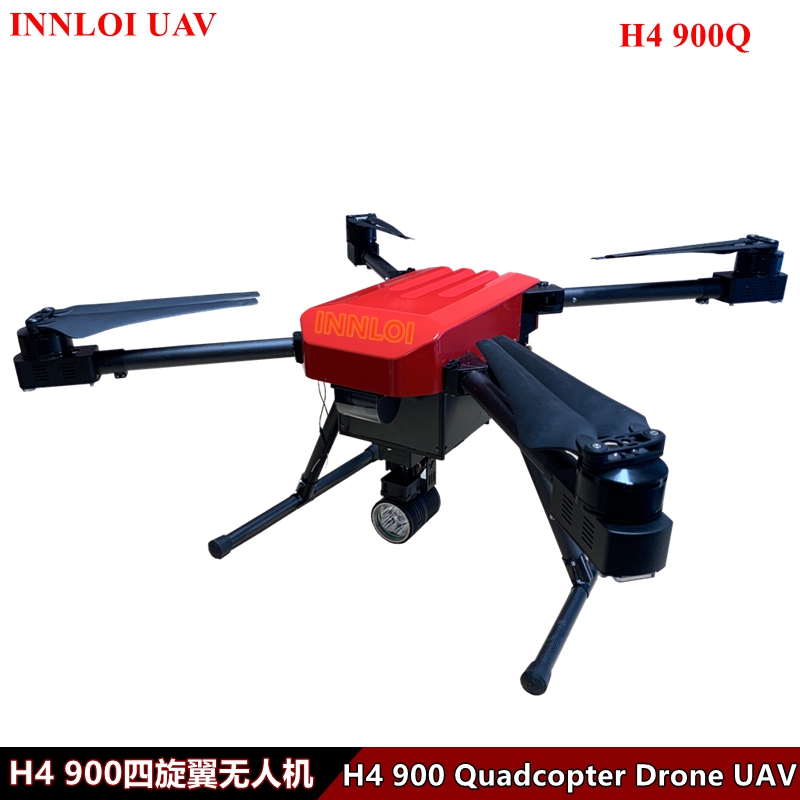

H4 900Q Quadcopter drone: 1 set

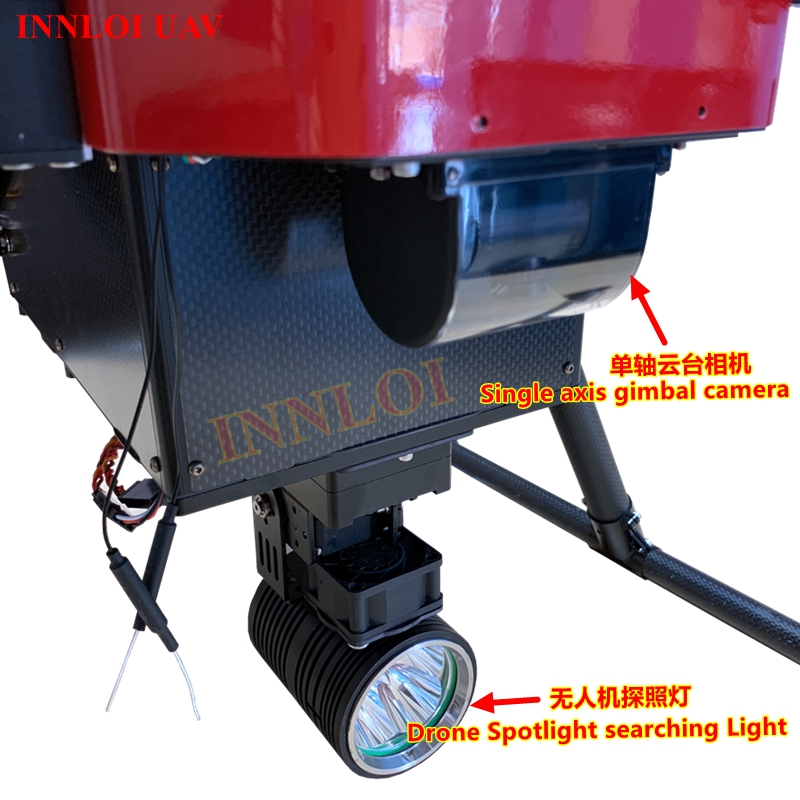

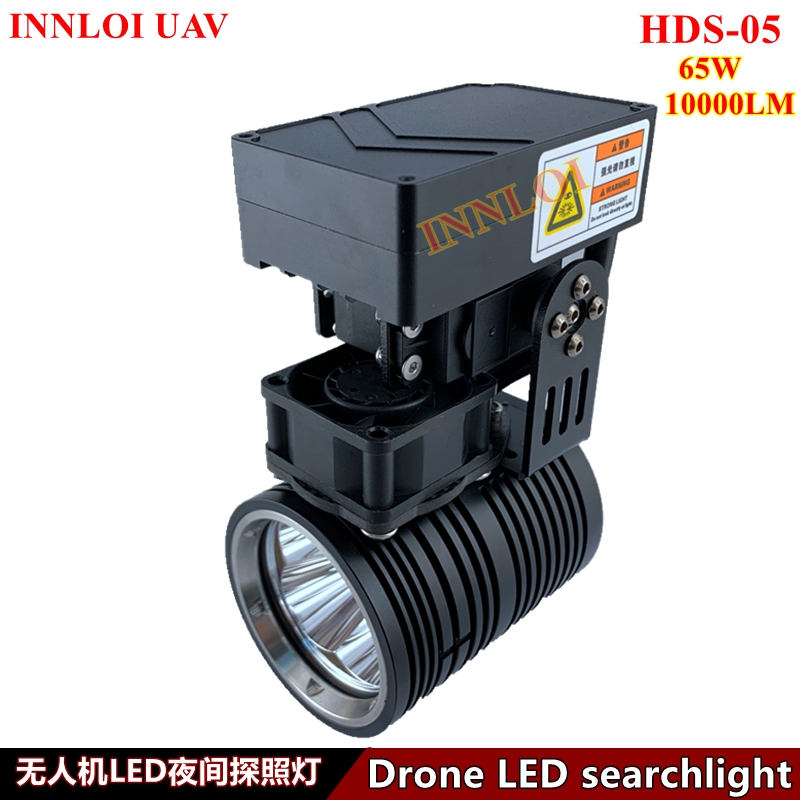

HDS-05 Drone Spotlight Search Light: 1pcs
Single axis gimbal camera: 1pcs

H4 900Q Quadcopter Drone Packing List:
H4 900 Quadcopter frame: 1 set
25-20 Landing gear: 1 set
5010 motor: 4pcs
12s 40A ESC: 4pcs
2170 folding propeller: 2 pairs (CW CCW)

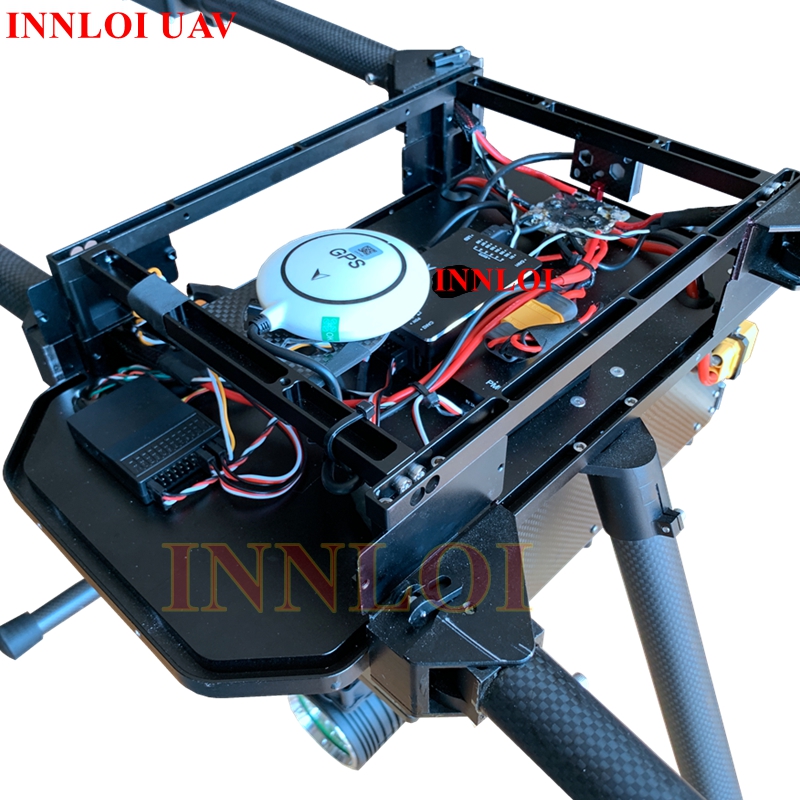

PIX flight controller: 1 set
T10 remote controller: 1 set

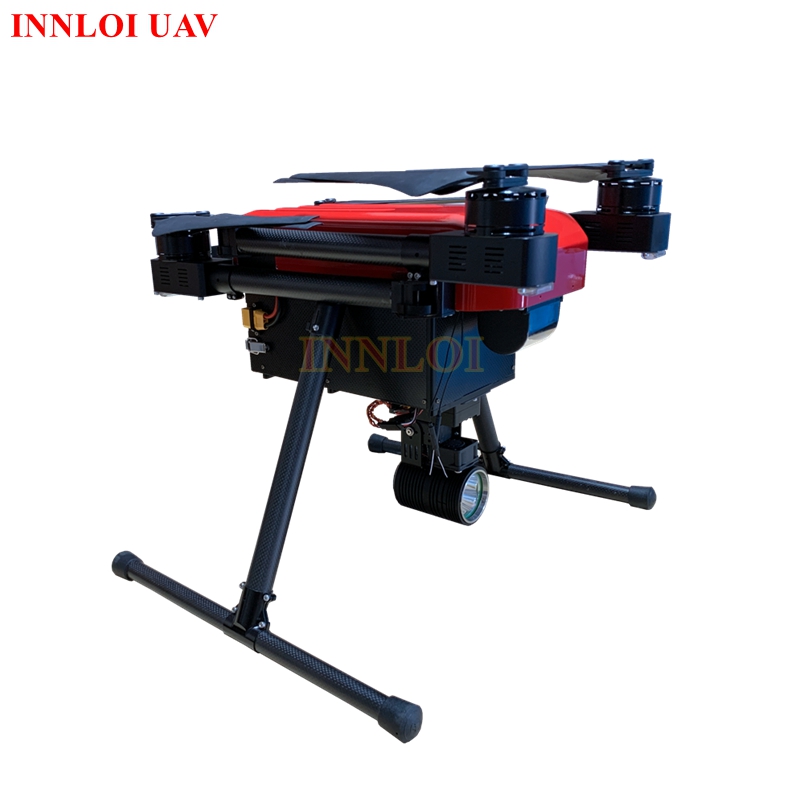

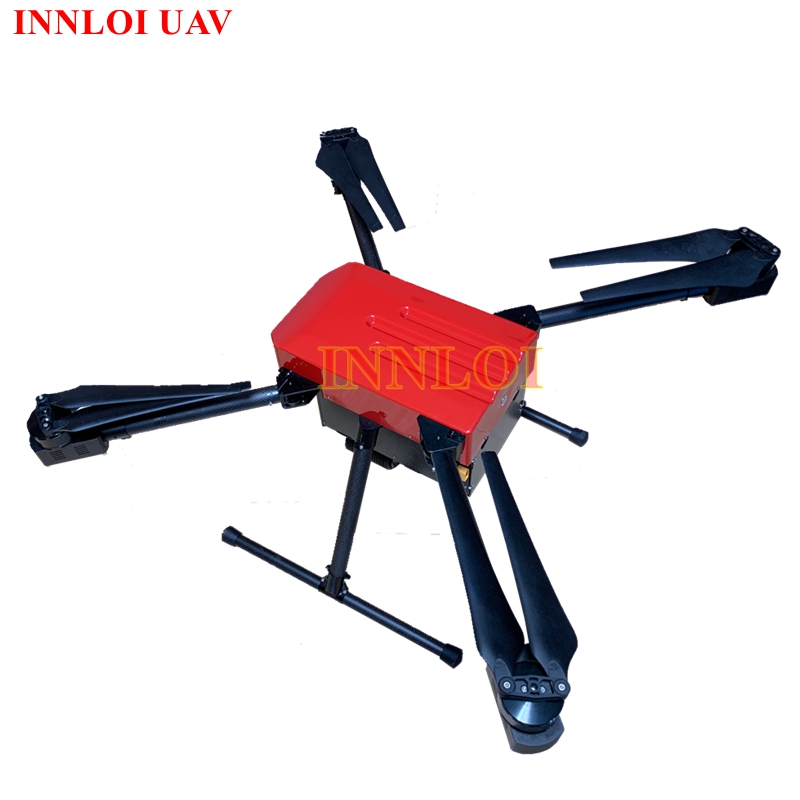

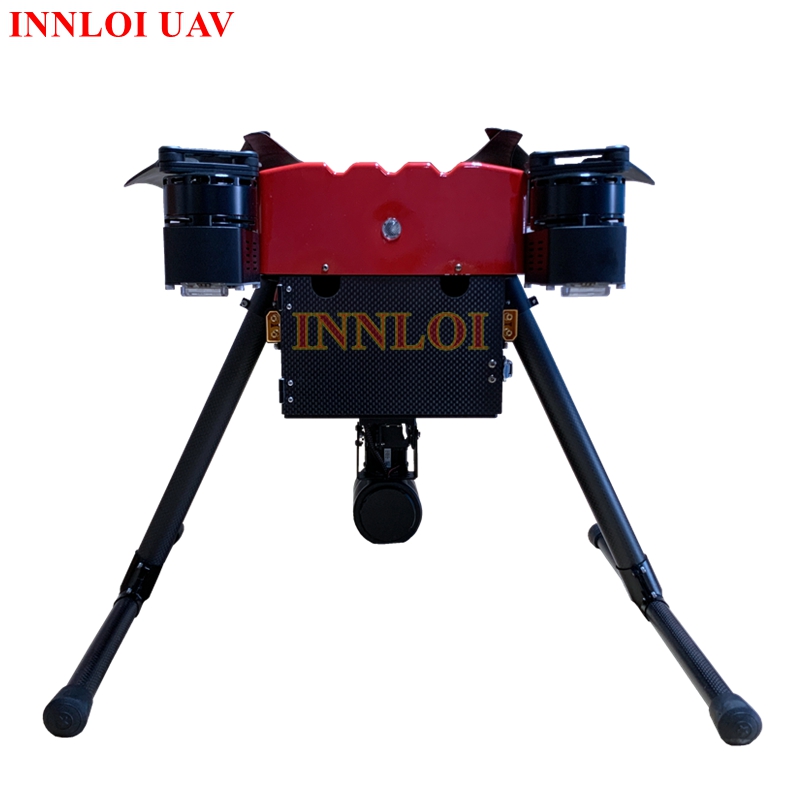

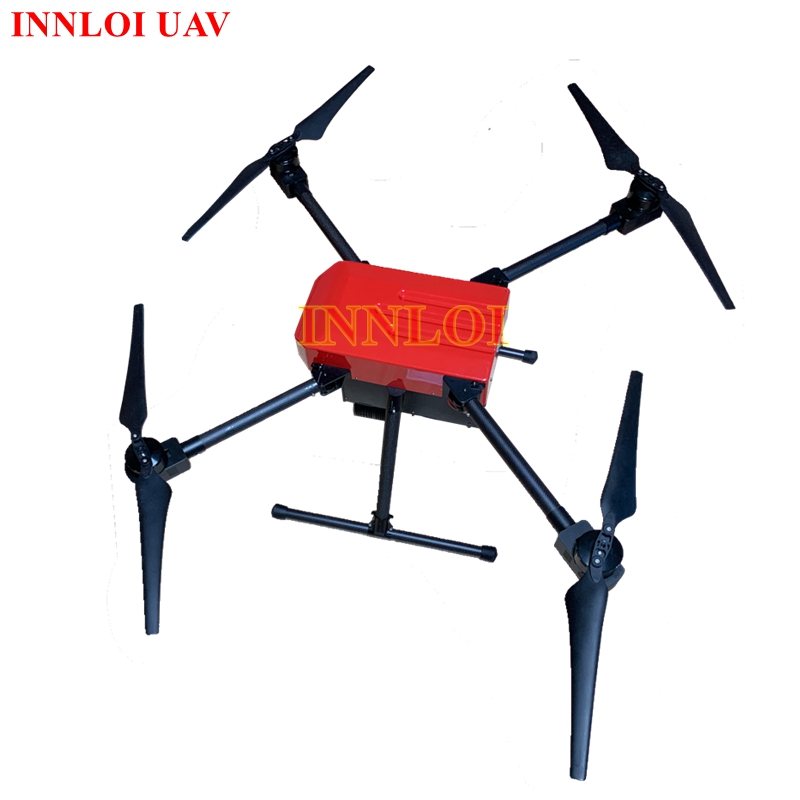

1. H4 900Q Security Patrol Drone is a long flying drone up to 60 minutes.

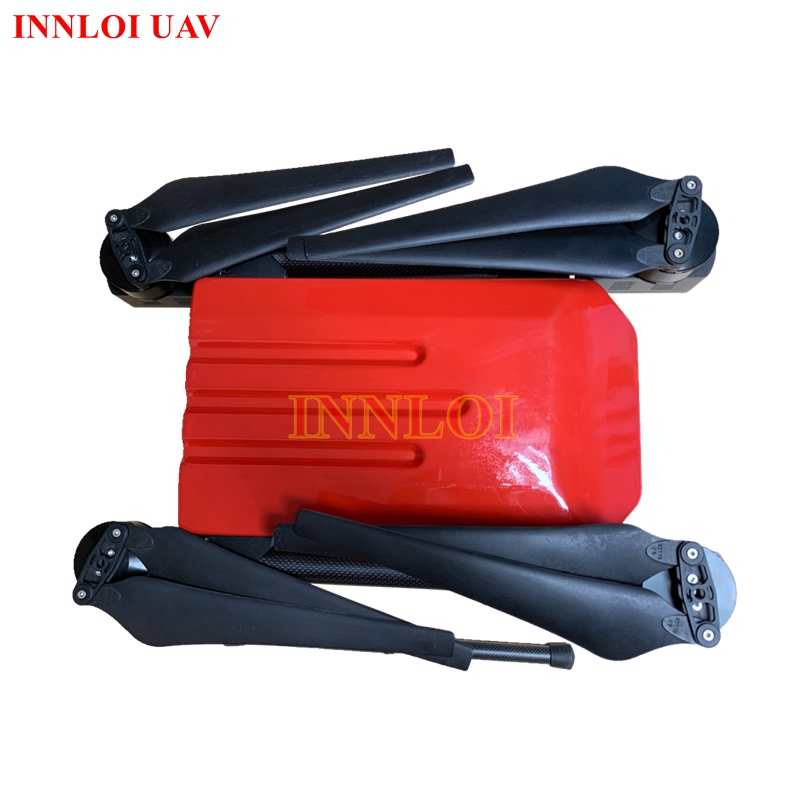

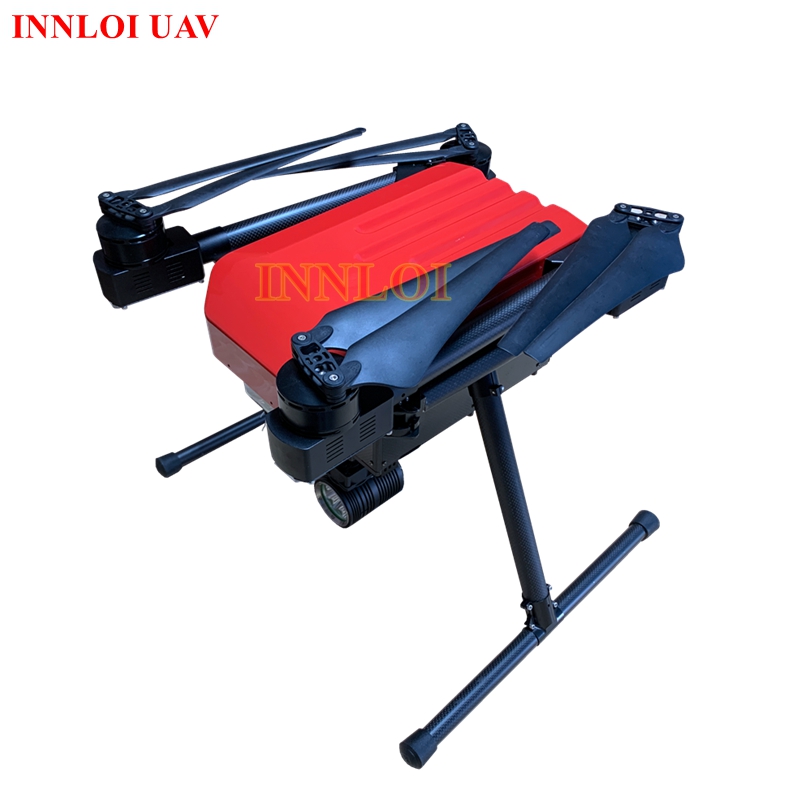

2. After being folded, it is designed with a new folding type with minimum dimensions.

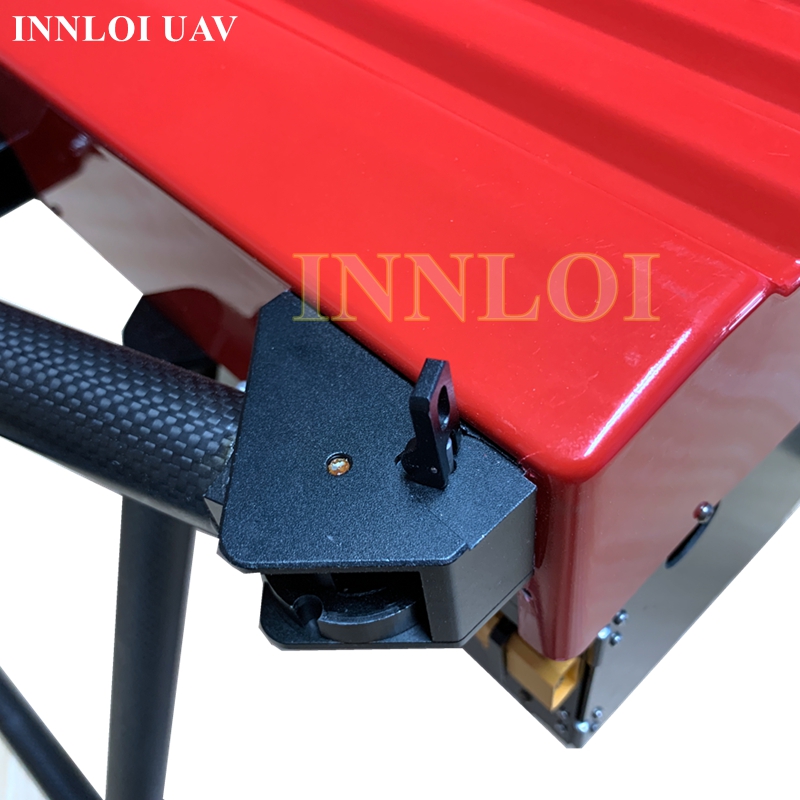

3. Minimum size, lightest with payload capacity of up to 3kg, suitable for rescue, patrol, mapping survey tasks, etc., especially the quick release landing gear and quick fold arm can be carried by backpack.

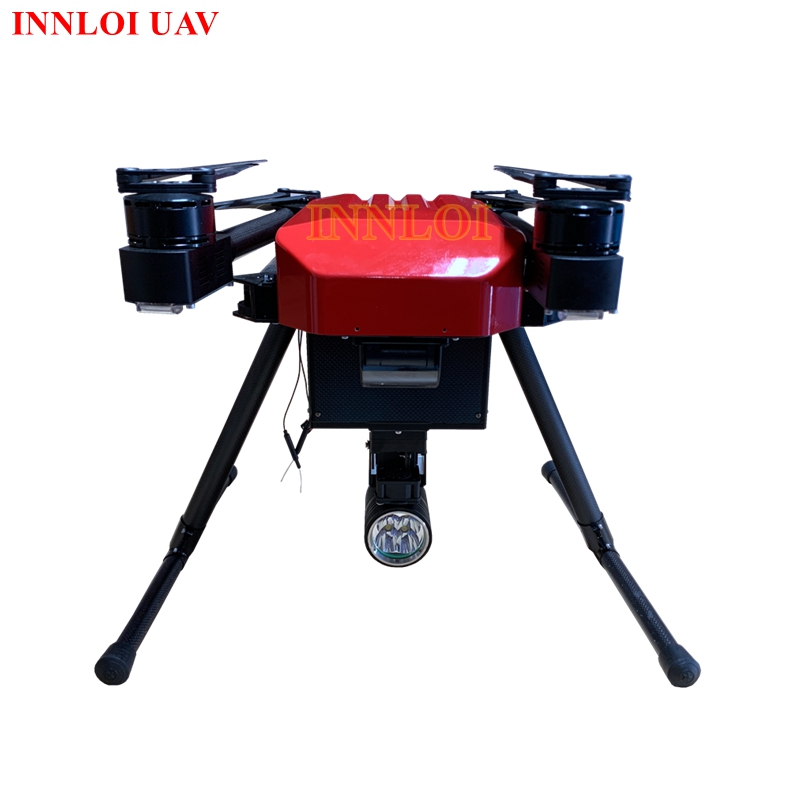

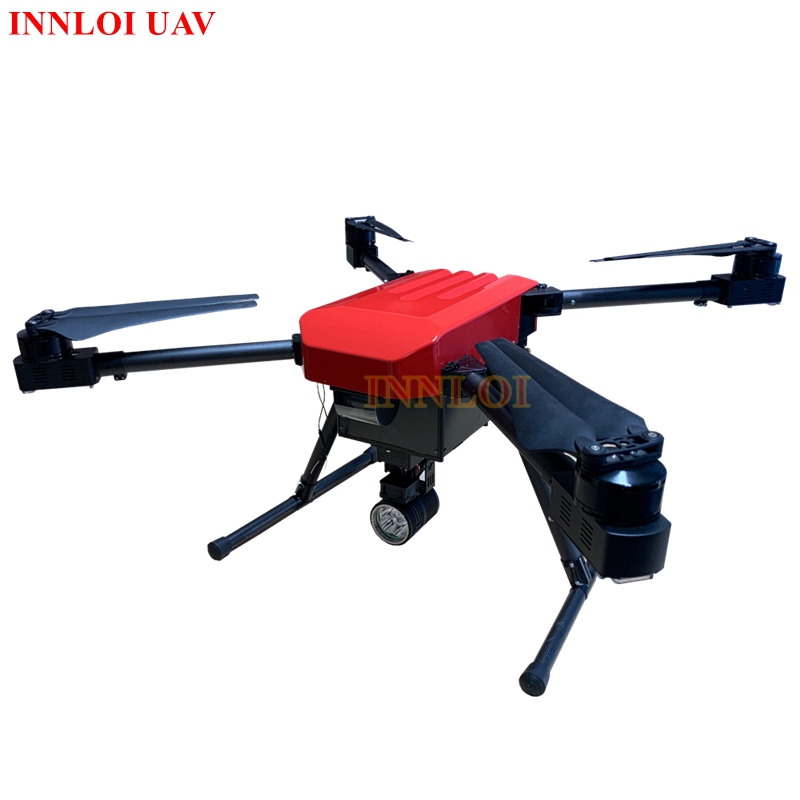

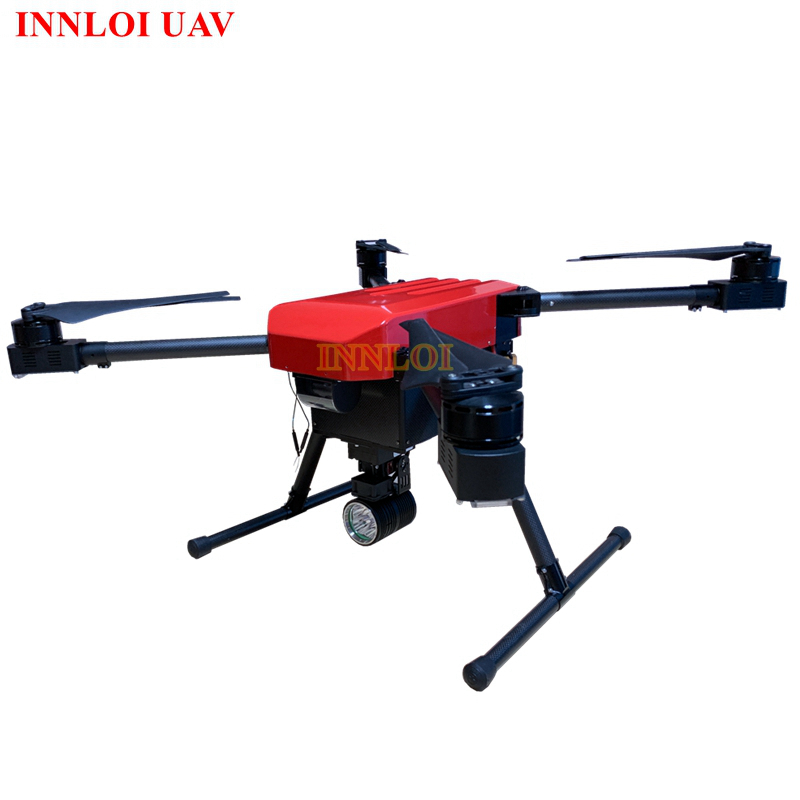

4. The drone was equipped with a 10000 Lm search light with camera for a real-time monitor with 720p video. The flight control range is 10km and the video transmission range is 3KM. This drone platform can be equipped with other industrial drone equipment. 10X optical zoom camera zimbal, wireless megaphone, paratrooper and more...

This flight flat form can be custom made for a variety of parts.
Flight Controller (A3/PIXHAWK/JIYI...)
Wireless Transmitter
Video Link & Datalink
Electric Retractable Gear

Supported devices
1080p 10X Zoom Camera with Gimbal
Dual-light camera with 3-axis gimbal system
10000lm search light for drone

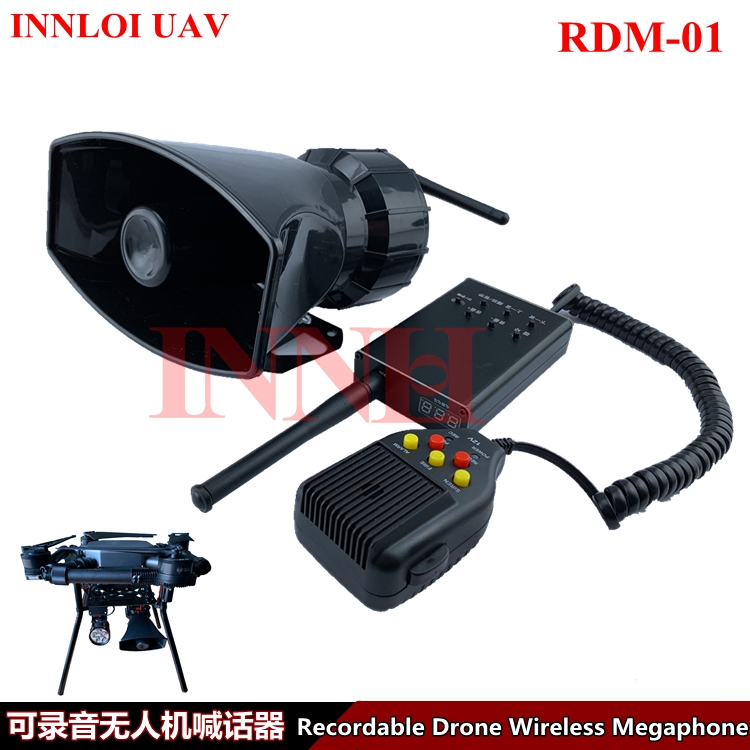

Recordable Drone Wireless Megaphone
Paradropper

Compatibility with propulsion systems: (for different payloads)
Motor 5010 Series
Motor 7206/7205
Motor 6215
Motor 6110

Parameters:
Input: 6 ~ 12s (22.2 ~ 52.2V DC)
Battery Type: Lithum Polymer 15C

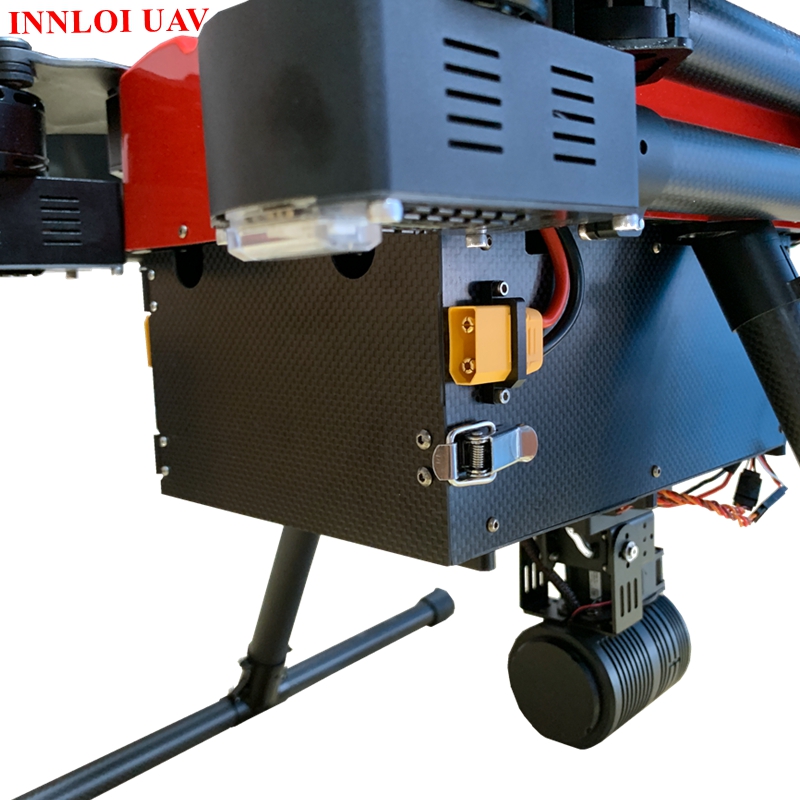

Plug Type: XT90
Electric Retractable Landing Folding Range: 0-65 ° (0 is horizontal position)

Test results:
(H4 900 frame 5010 motor 12s 40A 2170 propeller 2pcs

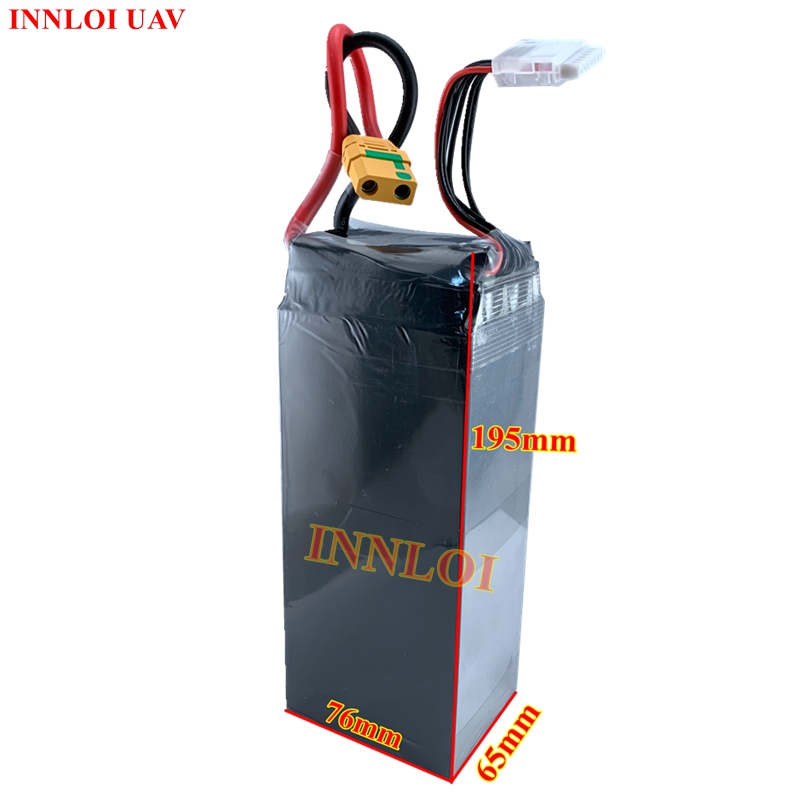

6s 16000 semi-solid lithium battery)
Hovering time (unloading): 64 minutes
Hovering time (load 1.1kg): 50 minutes

Specification

Model: H4 900Q
Maximum payload.: 3Kg
N.W. : 3.78 kg
Max takes weight: 11Kg

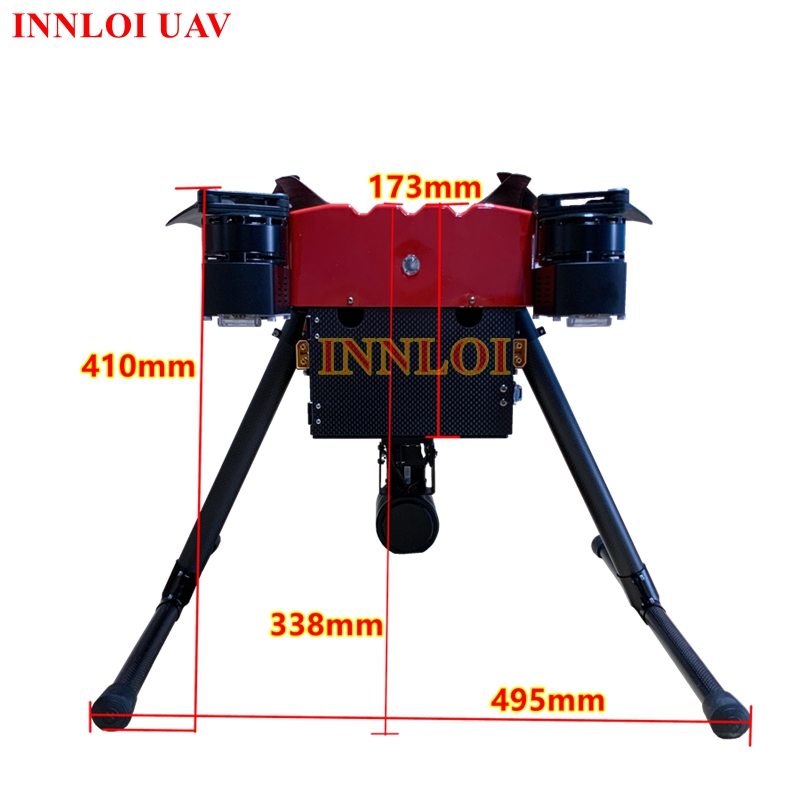

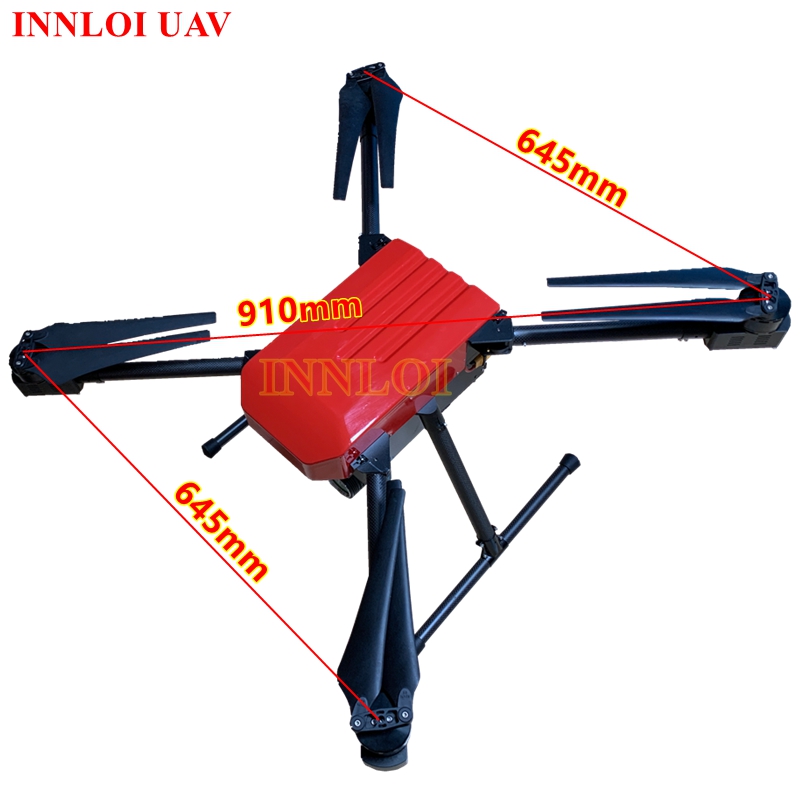

Dimension: 71x71x42CM

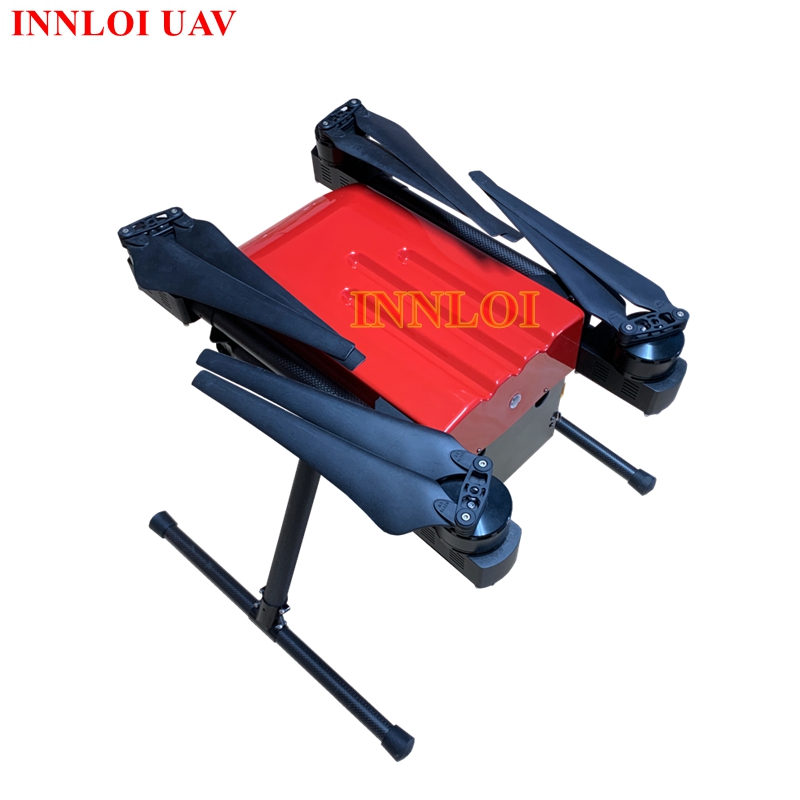

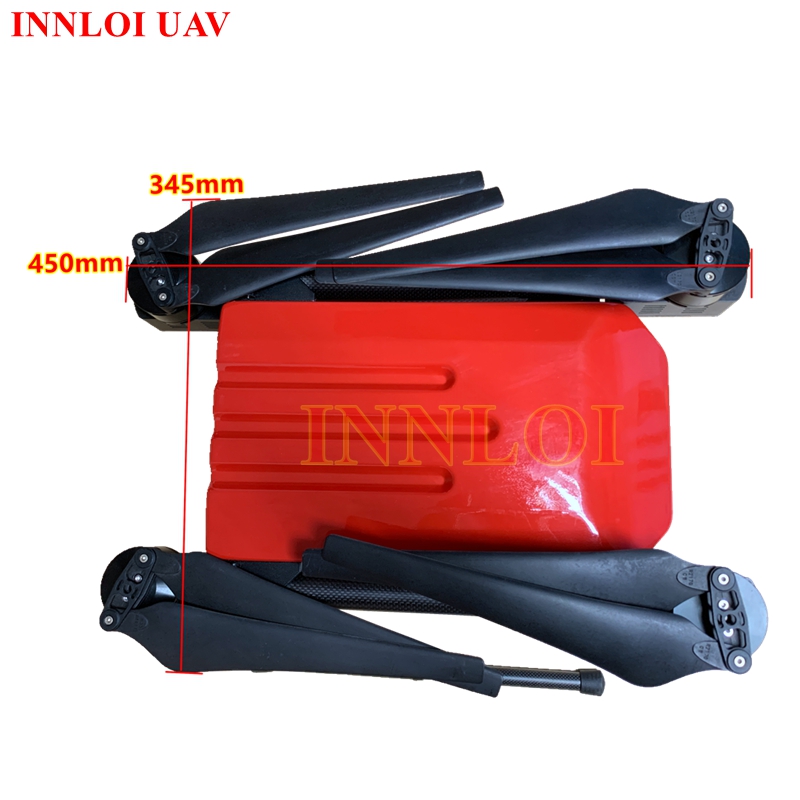

Dimension (folded): 48x43x42CM
Control radius: 5000 meters
Maximum flight height: 500 meters
Hovering time (unloading): 64 minutes
Hovering time (load 1.1kg): 50 minutes
