Picture packing list:

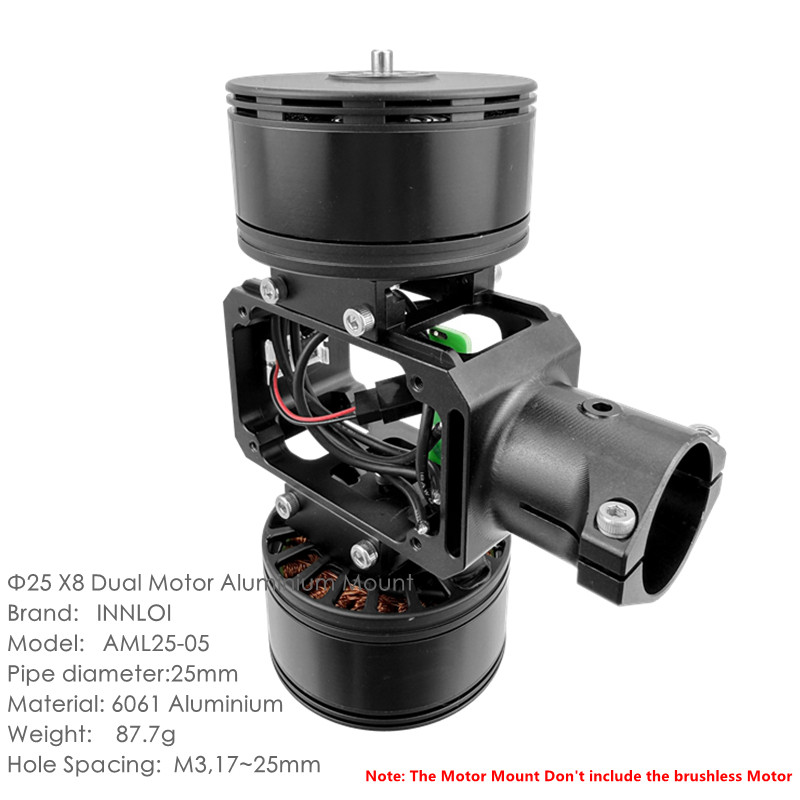

AML25-05 ø25 X8  Aluminum motor mount: 1 pcs

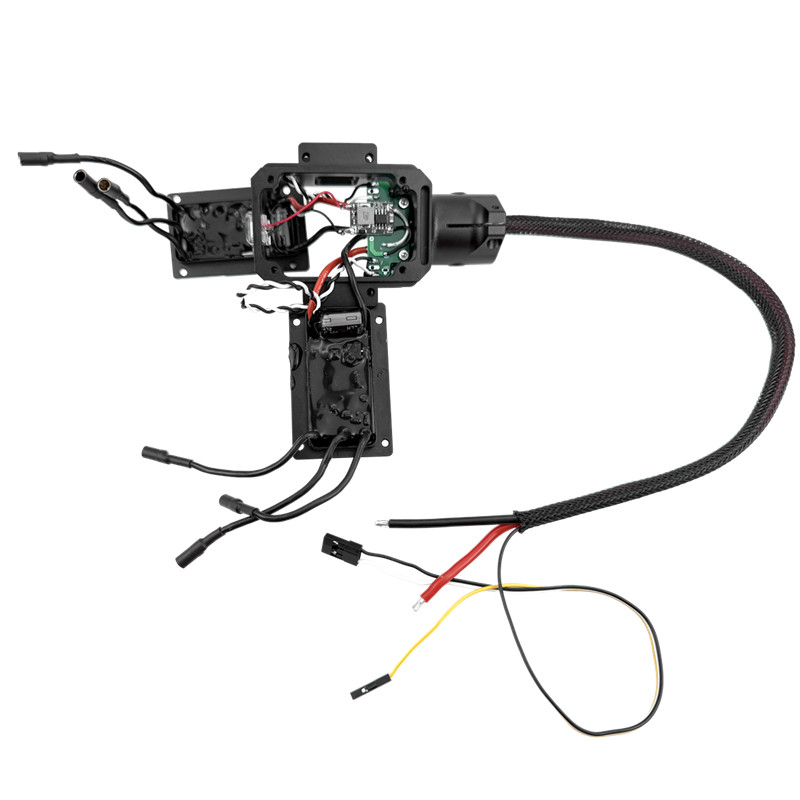

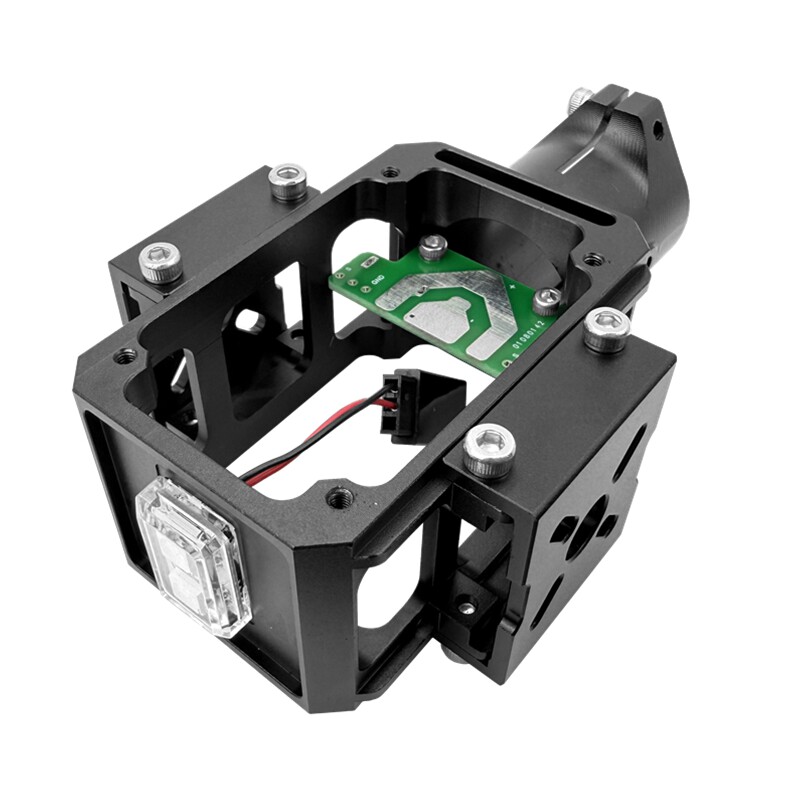

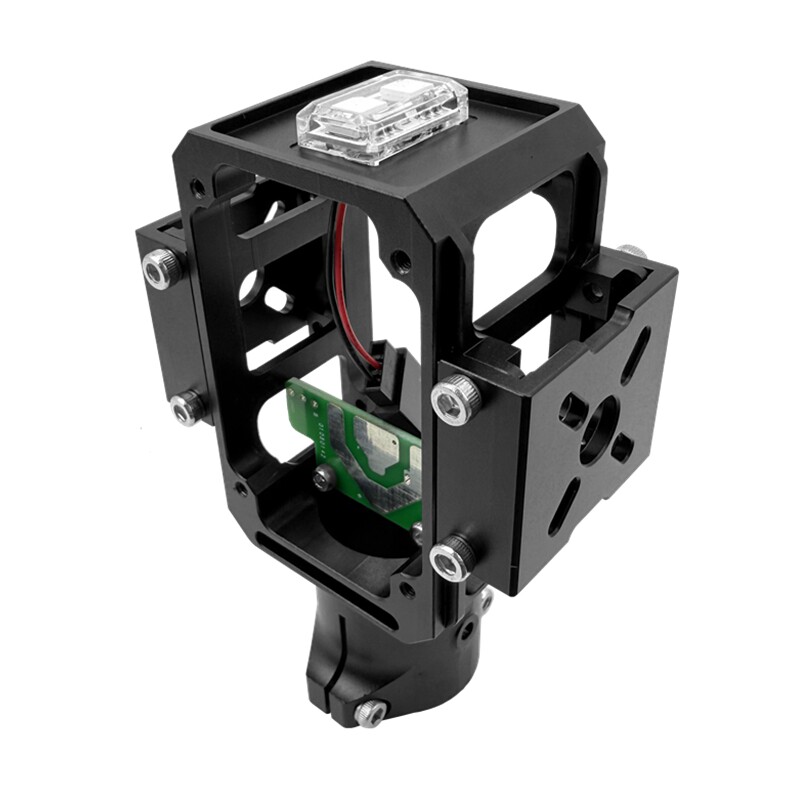

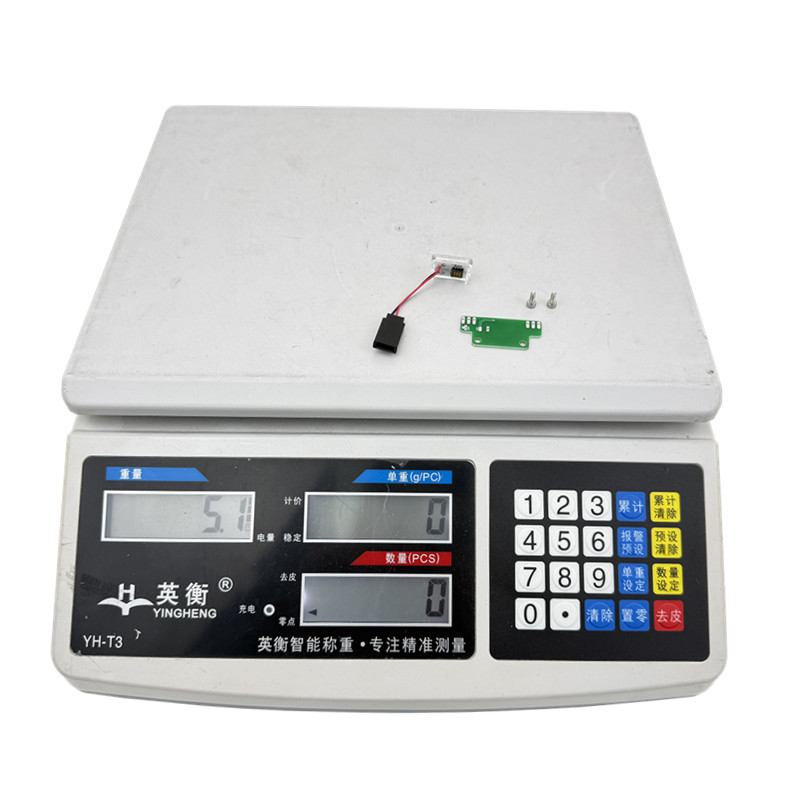

5V LED Light + Integrated circuit board: 1 set

NO.1 Detail list：

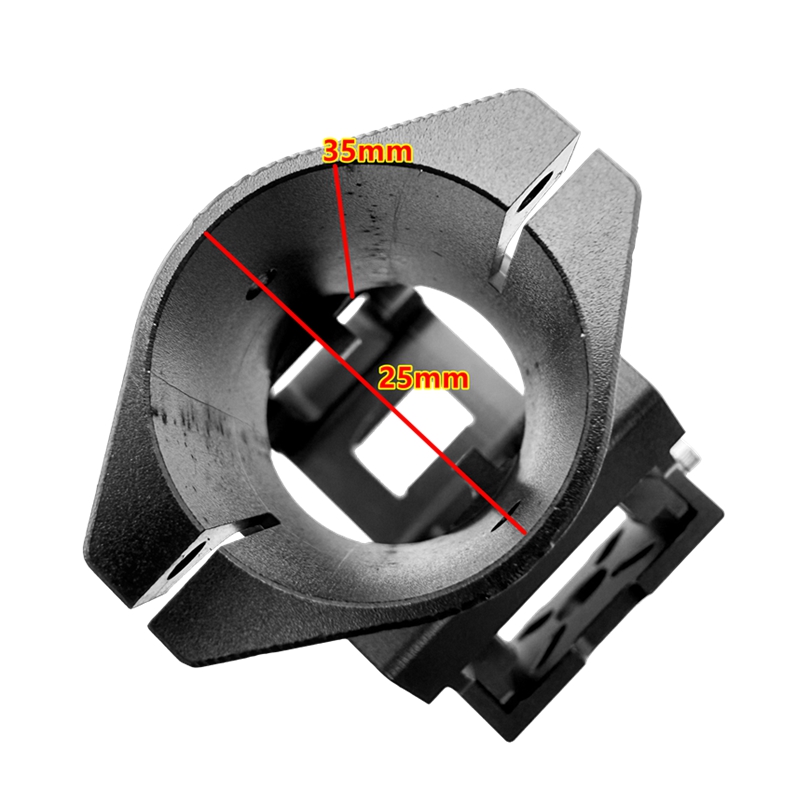

(For 25mm Pipe diameter)

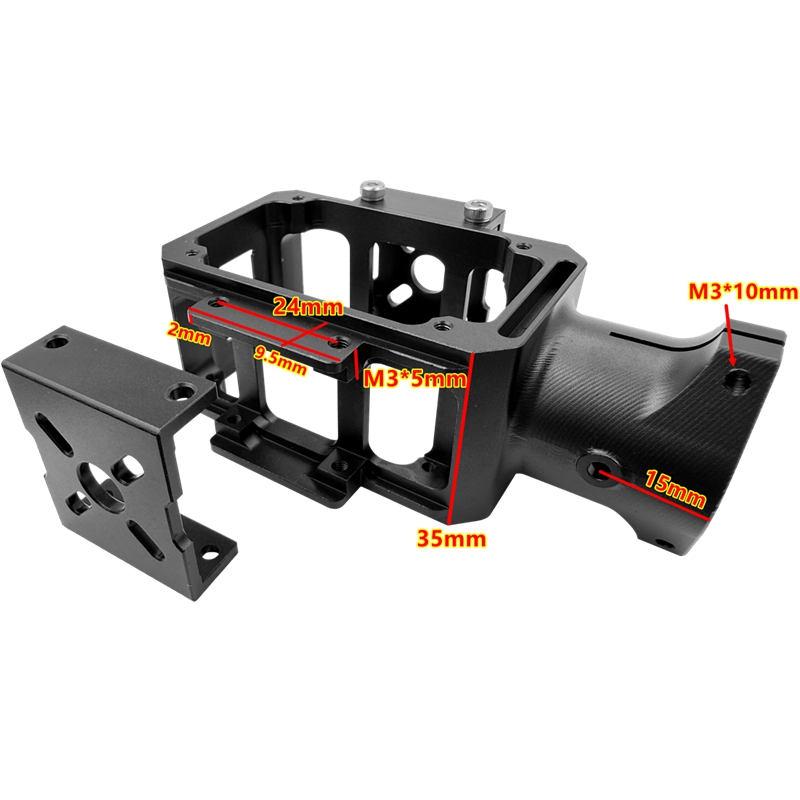

(For M3 Holes, 17~25mm hole spacing Motor)
AML25-05 ø25 X8  Aluminum motor mount: 1 pcs
5V LED Light + Integrated circuit board: 1 set

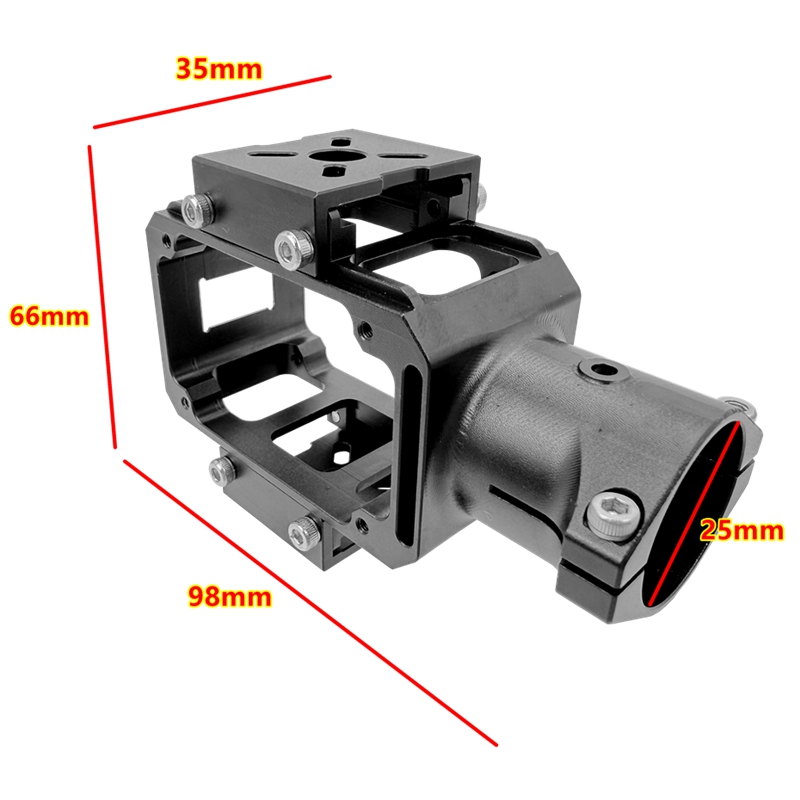

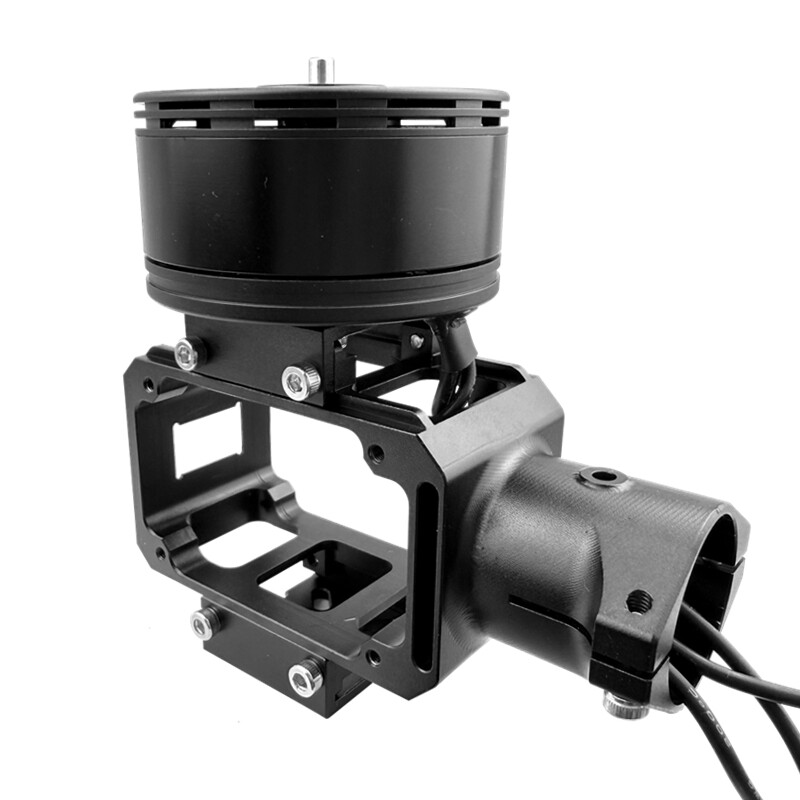

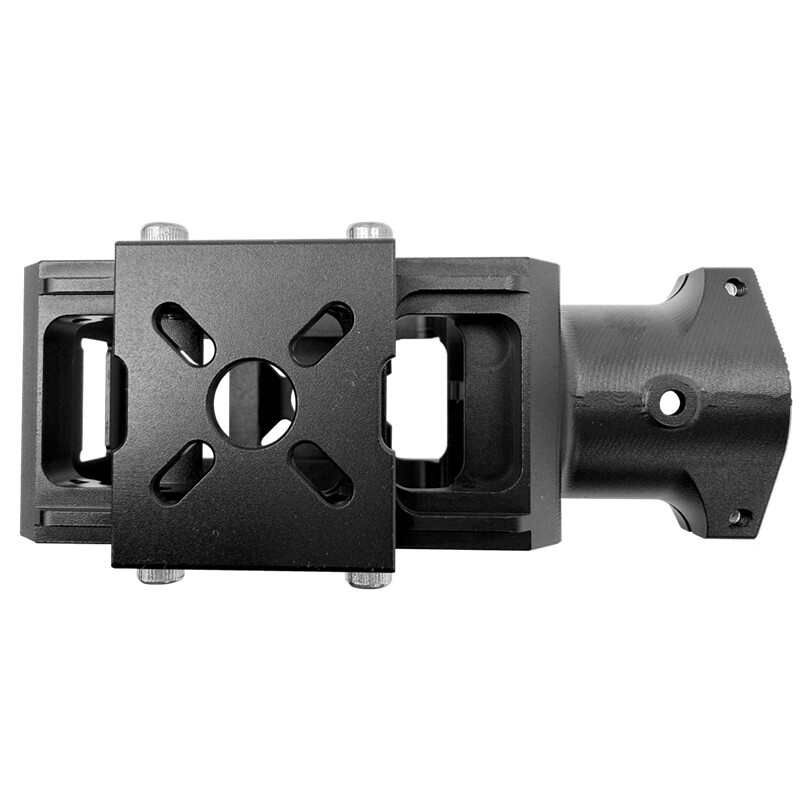

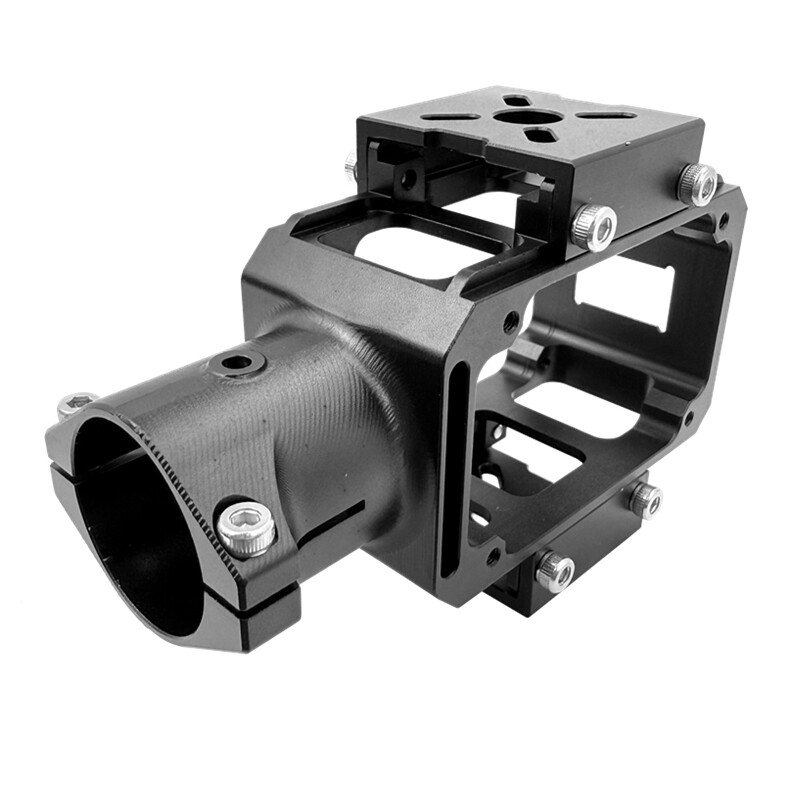

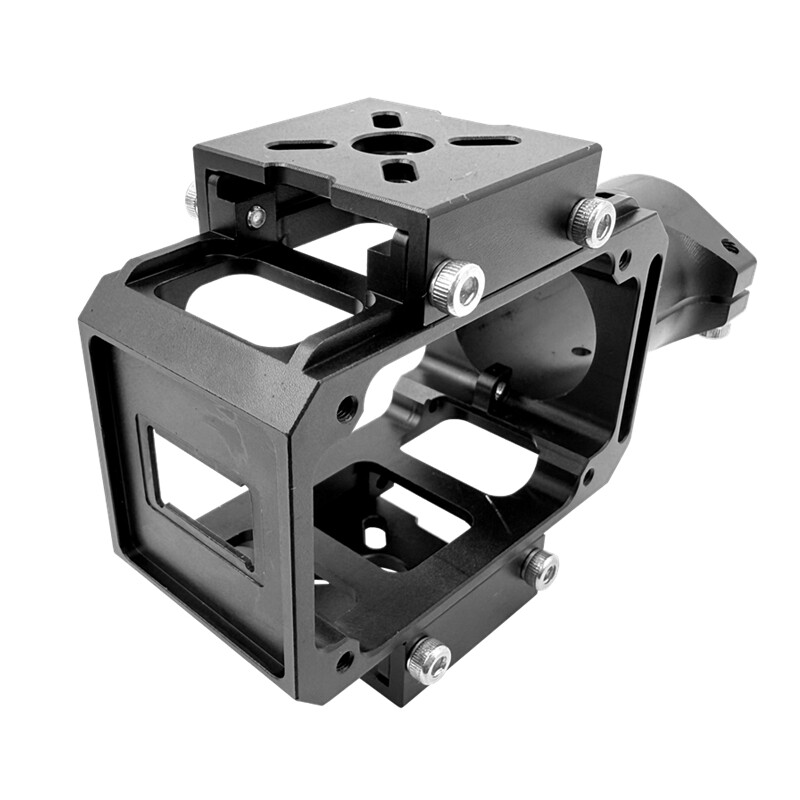

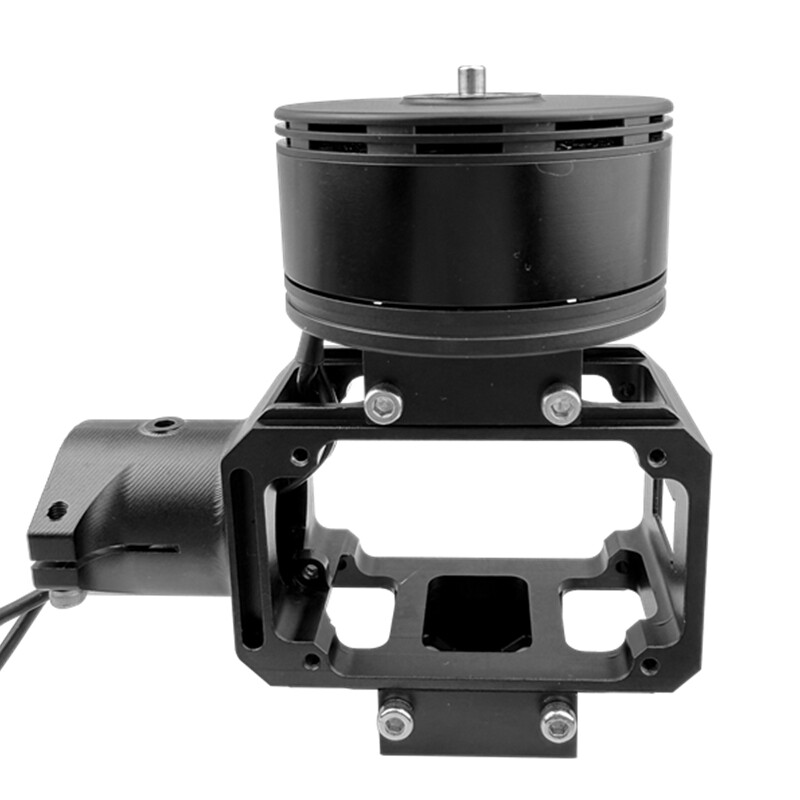

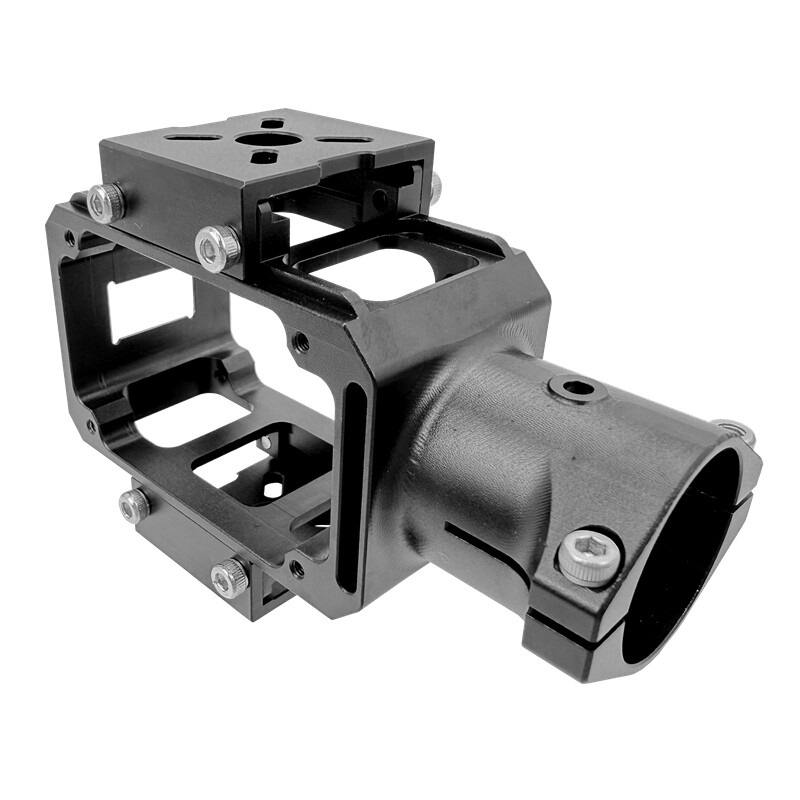

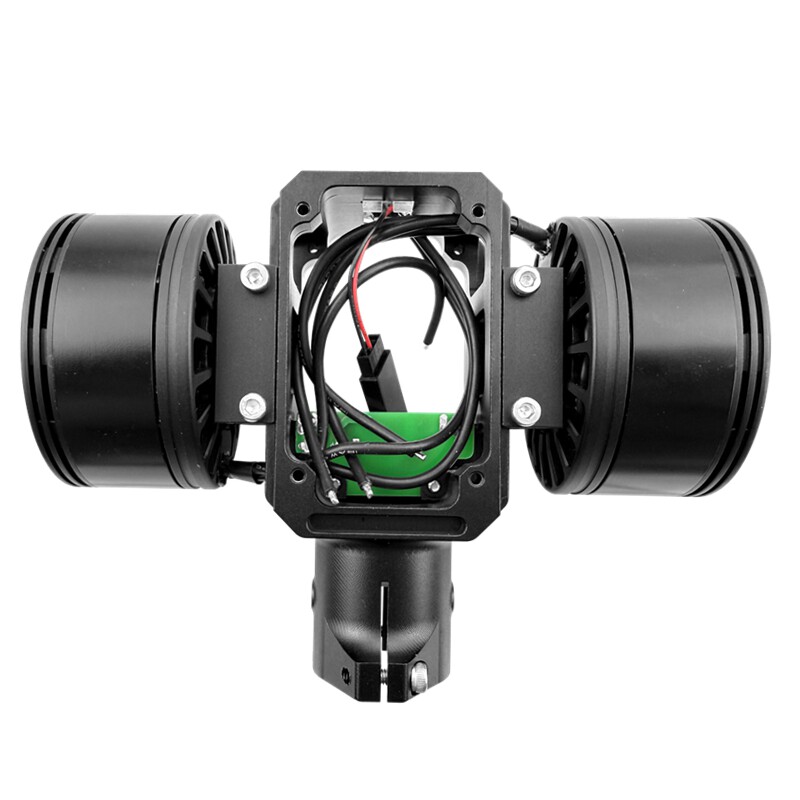

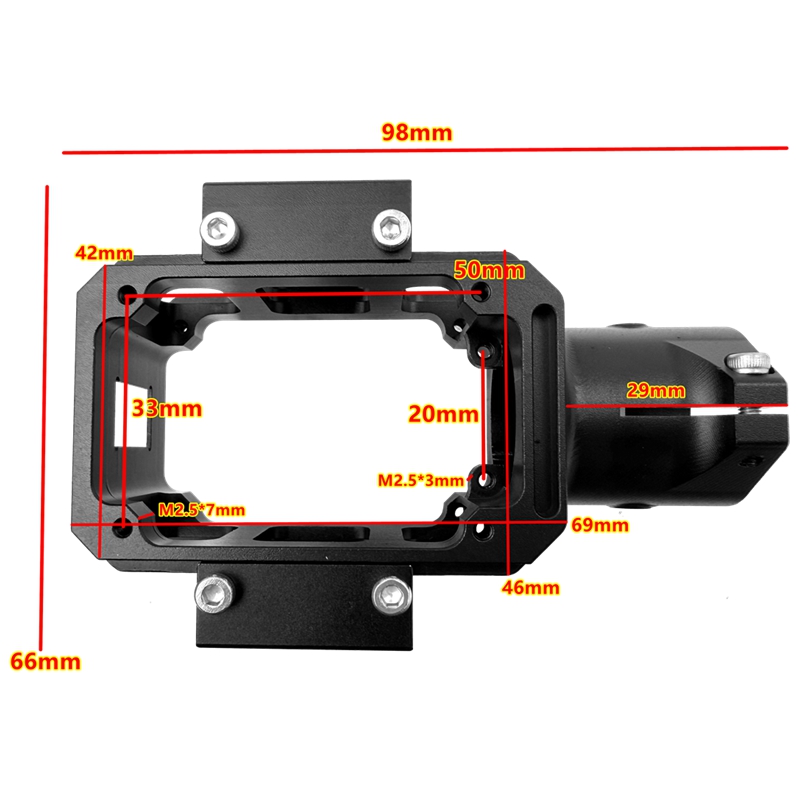

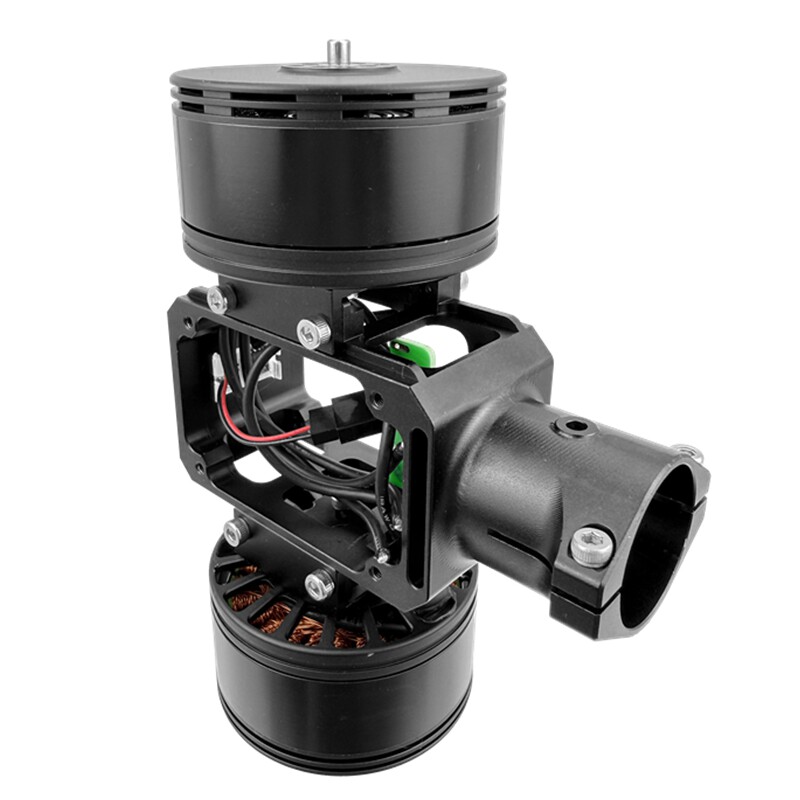

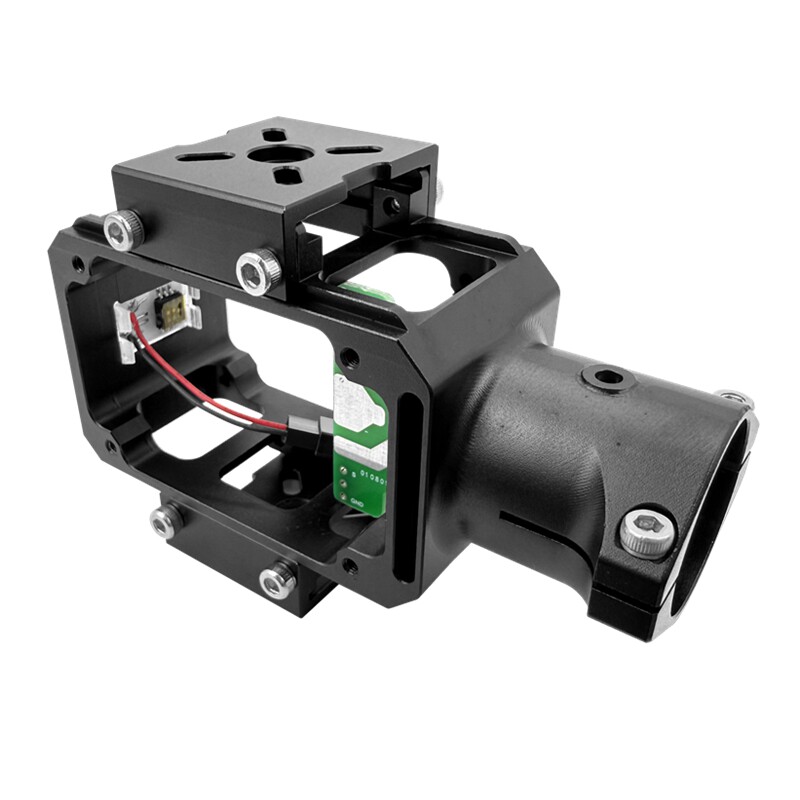

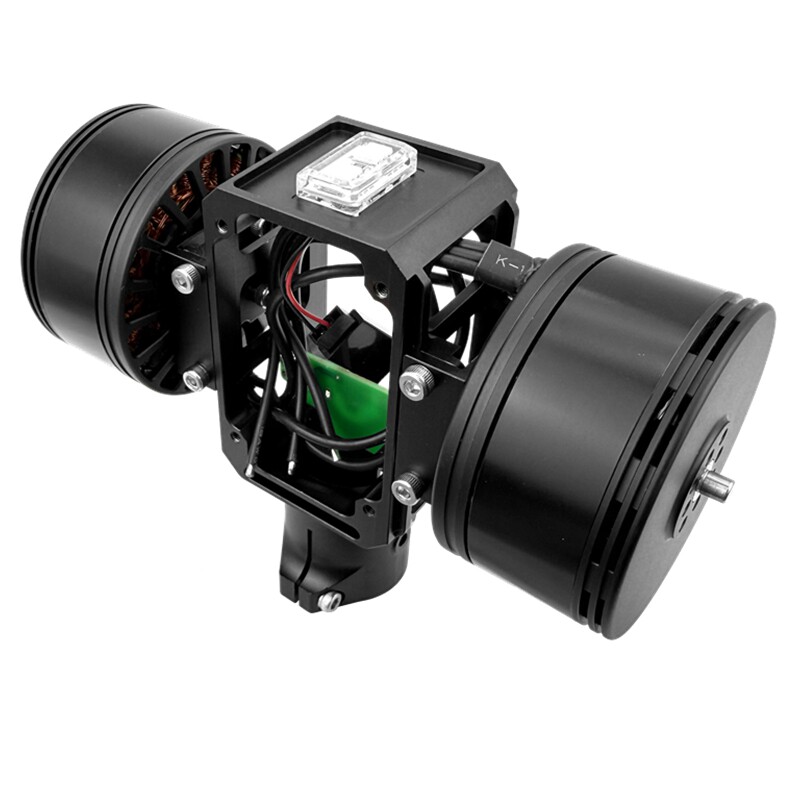

    The X8 upper and lower motor mounts are specifically designed for 25mm outer diameter pipes, compatible with brushless motors (BLDC) of multi-rotor UAVs, and are widely used in industrial-grade scenarios such as aerial photography, surveying and mapping, plant protection, and industrial inspection. The height of the product itself is 6.6cm, and when matched with the motor, it can achieve an upper and lower propeller distance of 10-13cm, reducing interference between propellers and lowering resistance structurally. It is precision-machined with 6061 aviation aluminum alloy using CNC technology, strictly controlling the installation reference accuracy, balancing lightweight and high strength, and significantly improving the UAV's attitude control accuracy and load stability.
