Picture packing list:

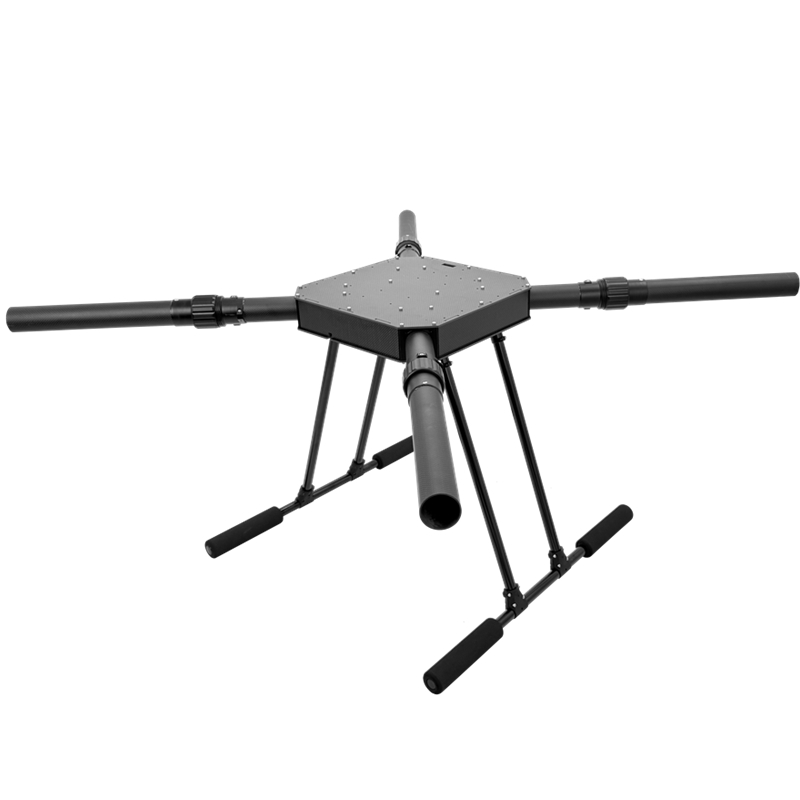

X1380 Quad Fold Carbon Frame: 1set

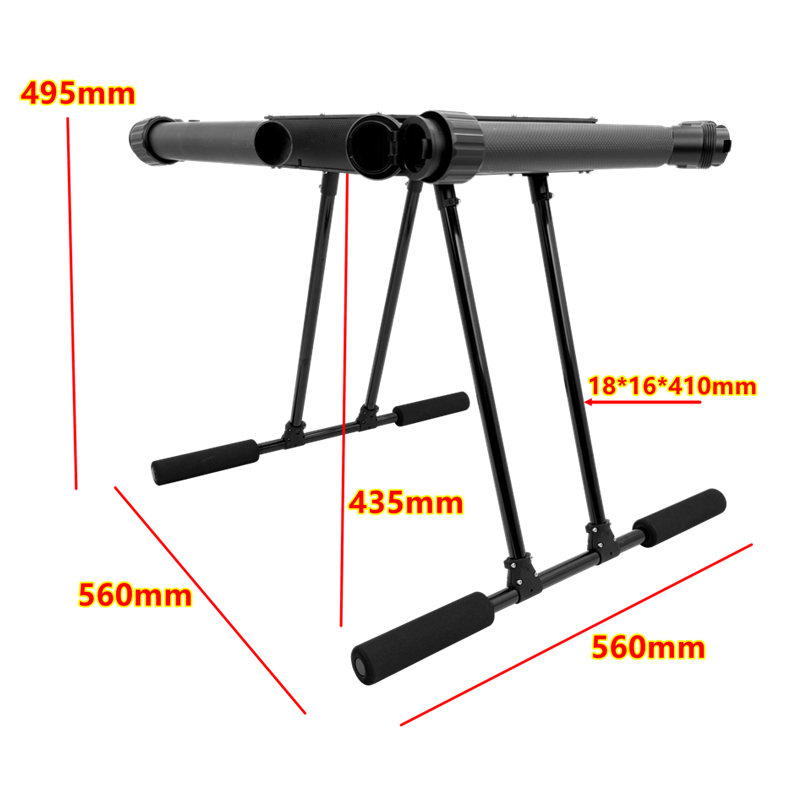

DFL18-03 ø18mm Aluminium Landing Gear: 1set
NO.1 Detail list:

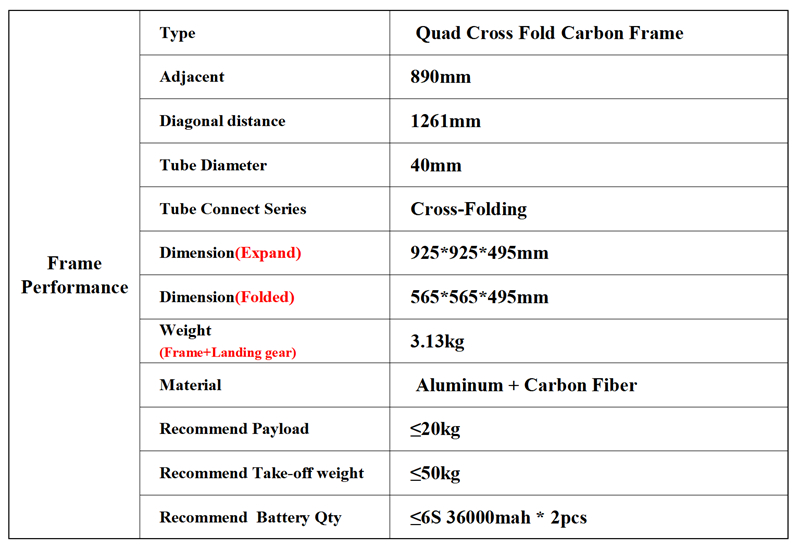

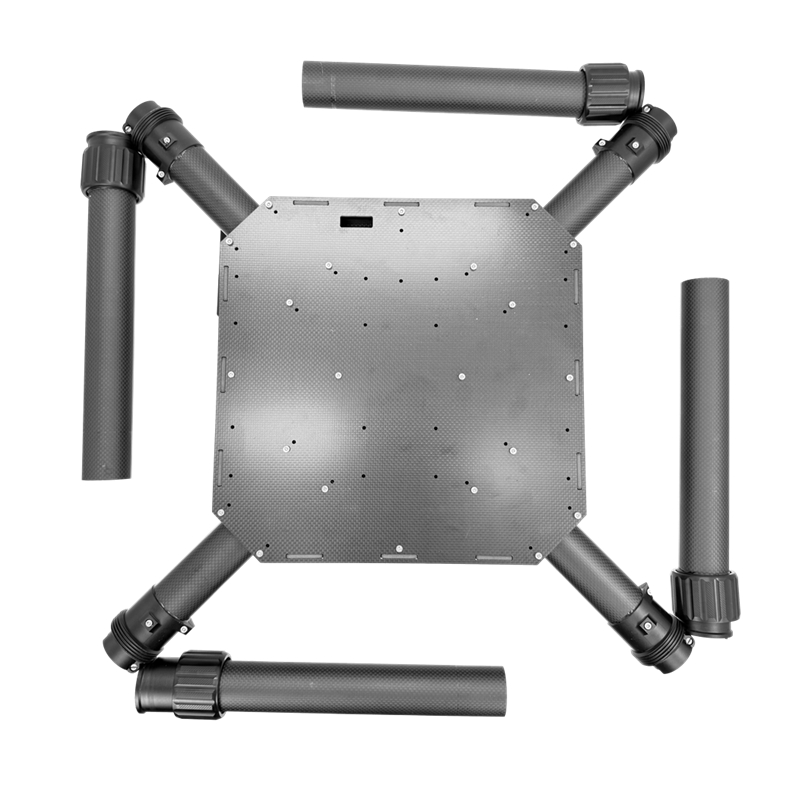

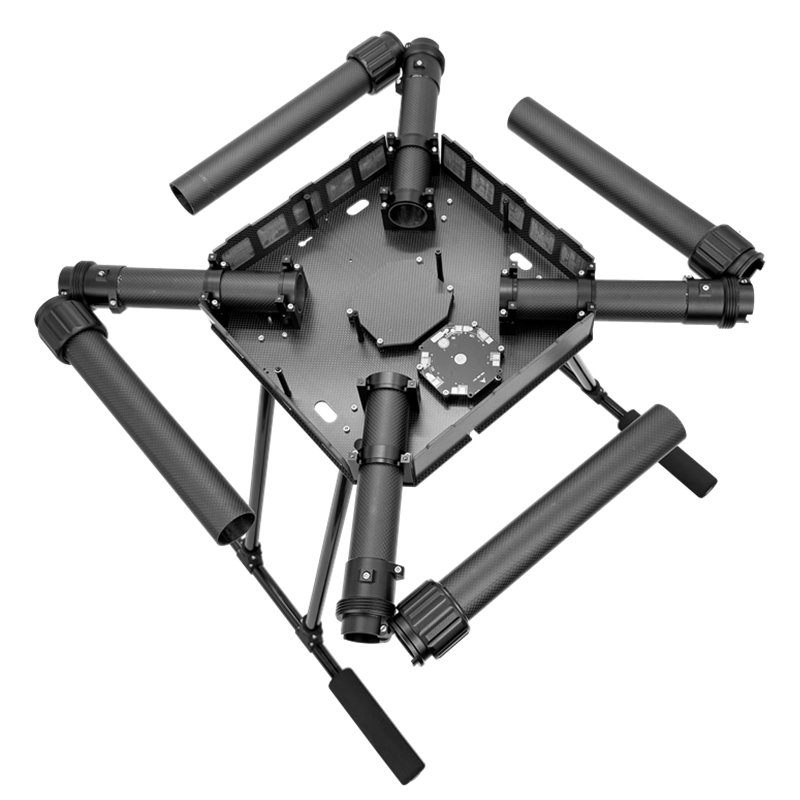

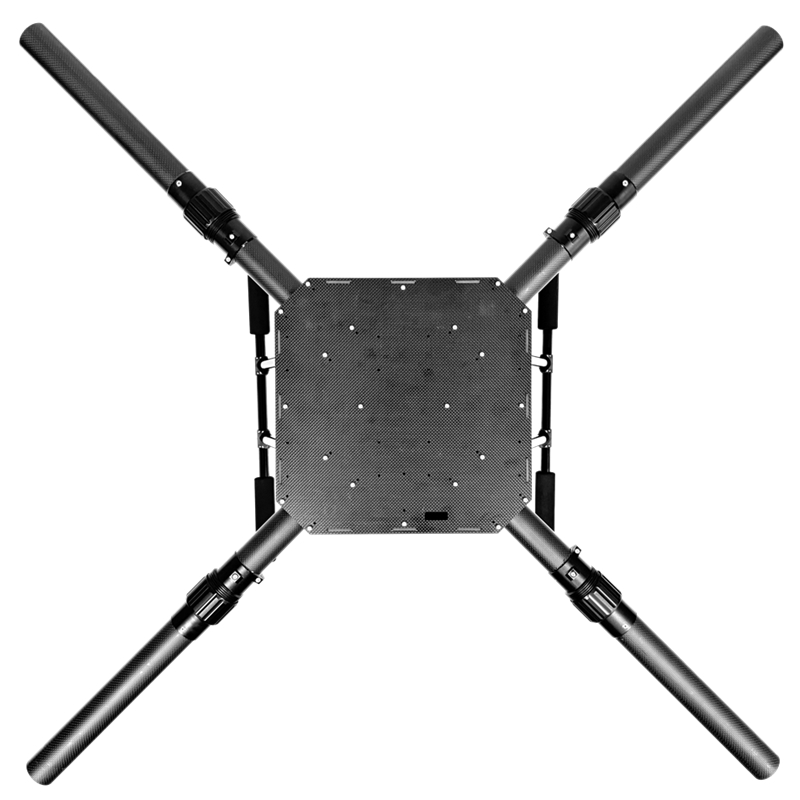

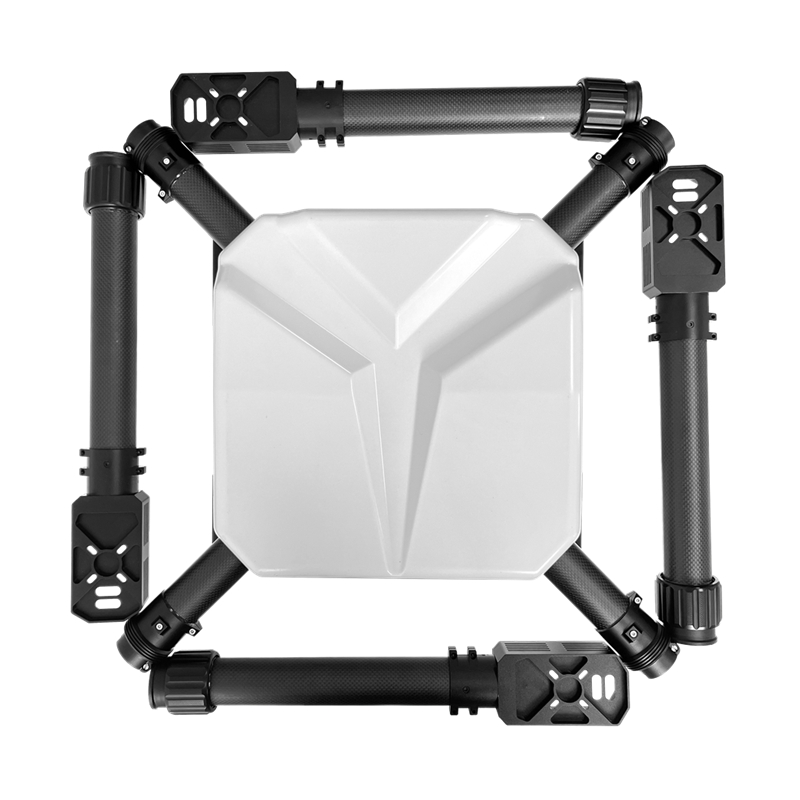

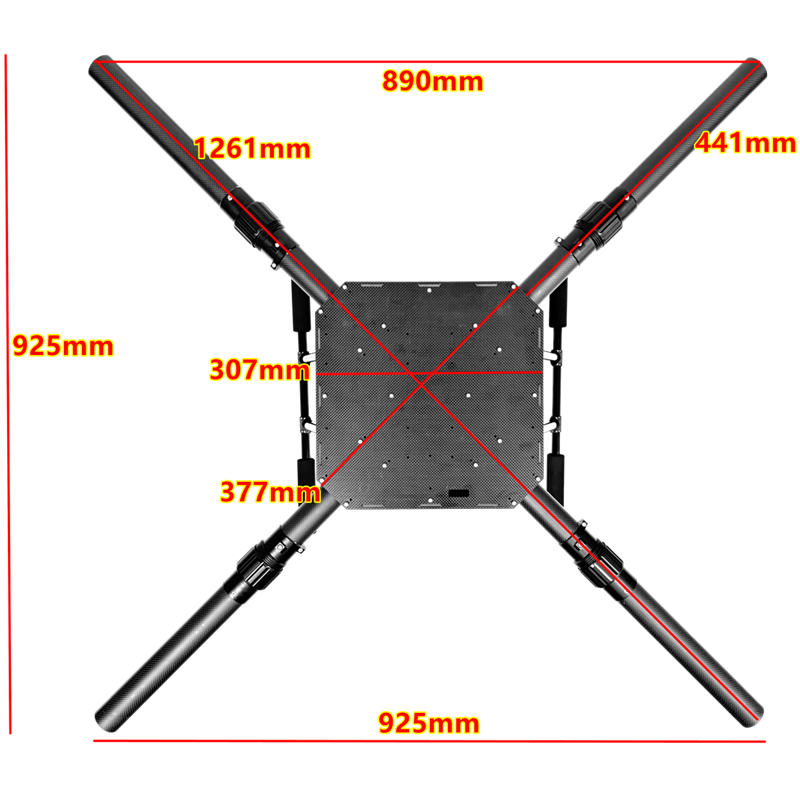

(Adjacent: 890mm,40mm pipe diameter, Cross-Folding)

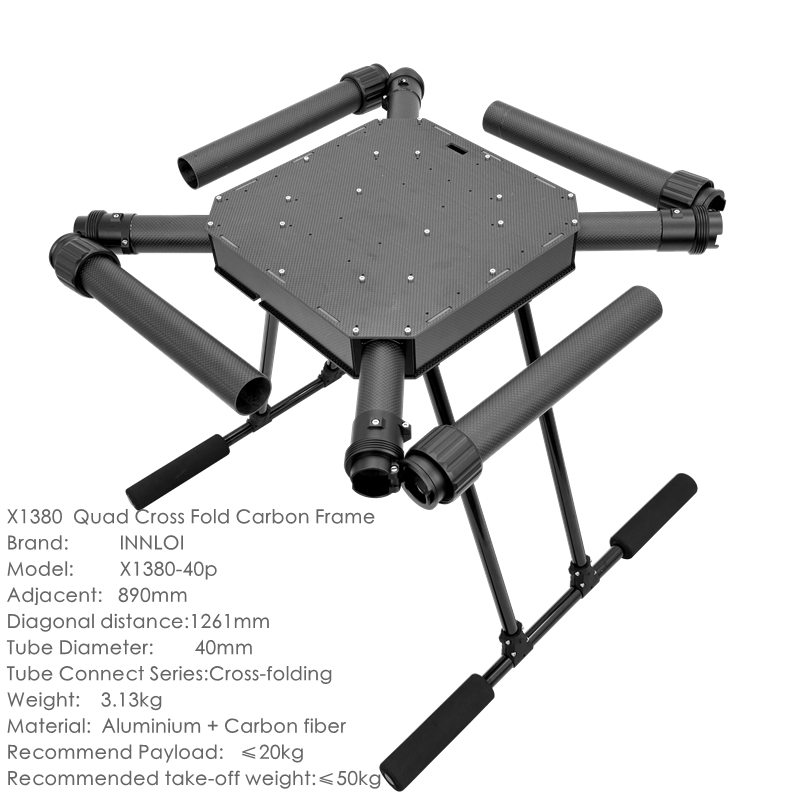

X1380 Quad Fold Carbon Frame: 1set
DFL18-03 ø18mm Aluminium Landing Gear: 1set
1. The efficient propulsion system allows the drone to take off up to 50 kg (with a 43inch propeller).
2. Equipped with an appropriate power system, with payload 15kg, For 45Min hovering flight (actual test data).
3. The Frame is made of 3K carbon fiber+CNC aluminum parts
4. Strong rigidity, stronger stability and vibration resistance
5. This drone can provide a longer flight time, and the large battery capacity depends on the effective flight time.
6. Users can also choose the flight controllers and converters they want, as well as data telemetry.
7. We can customize drones according to customer requirements. If you have any ideas, please contact us.Attention:
1. When you receive the product, not assembled.
2. This Frame body is easy to assemble. If you don't know how to install it, please contact customer service or check the product details below. We can also assemble a rack kit for you (shipping costs vary).
3. The body can be customized, and we can make the rack according to your requirements.
4. Carbon fiber materials belong to conductors, and insulation treatment needs to be done well during installation.
5. When installing the frame, it is necessary to stick 242 glue on the screws to prevent them from loosening during flight.
