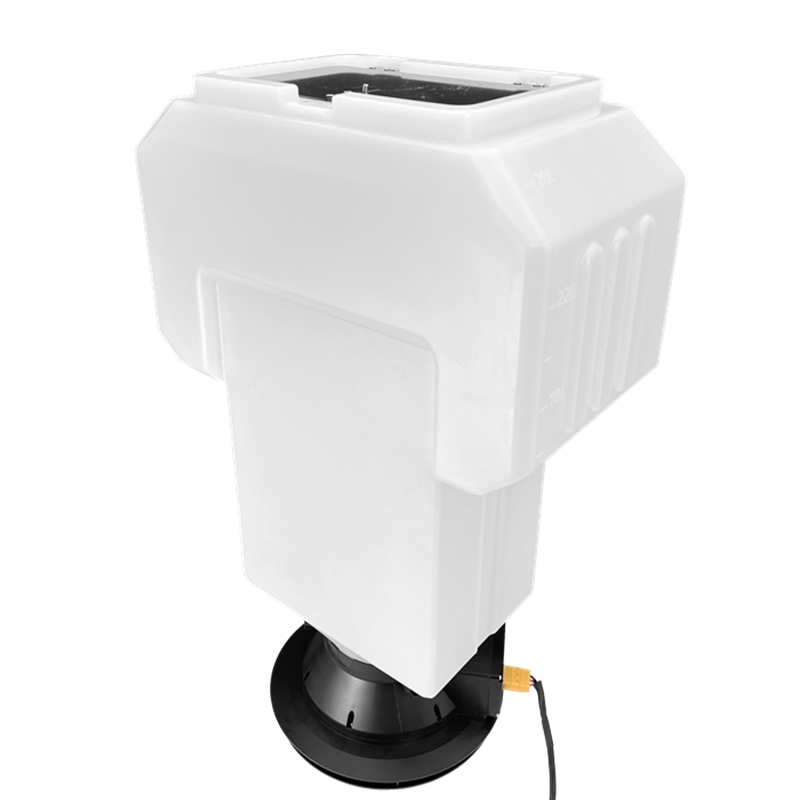

Picture packing list:

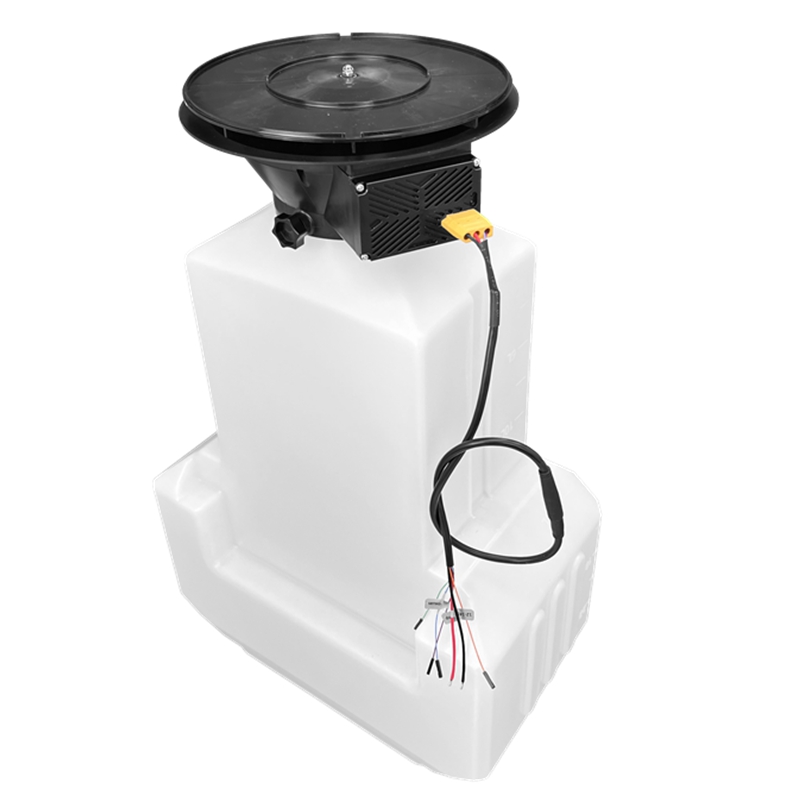

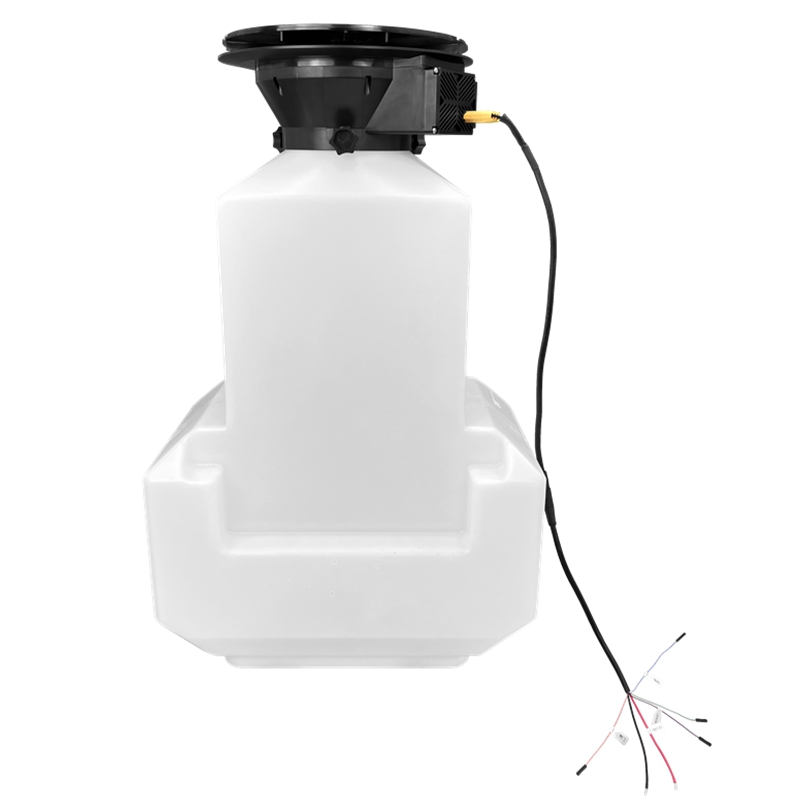

FSM27-01 Drone Particle Spreader system： 1set

NO.1 Detail list:
FSML-07  12~14S Particle Spreader:1set

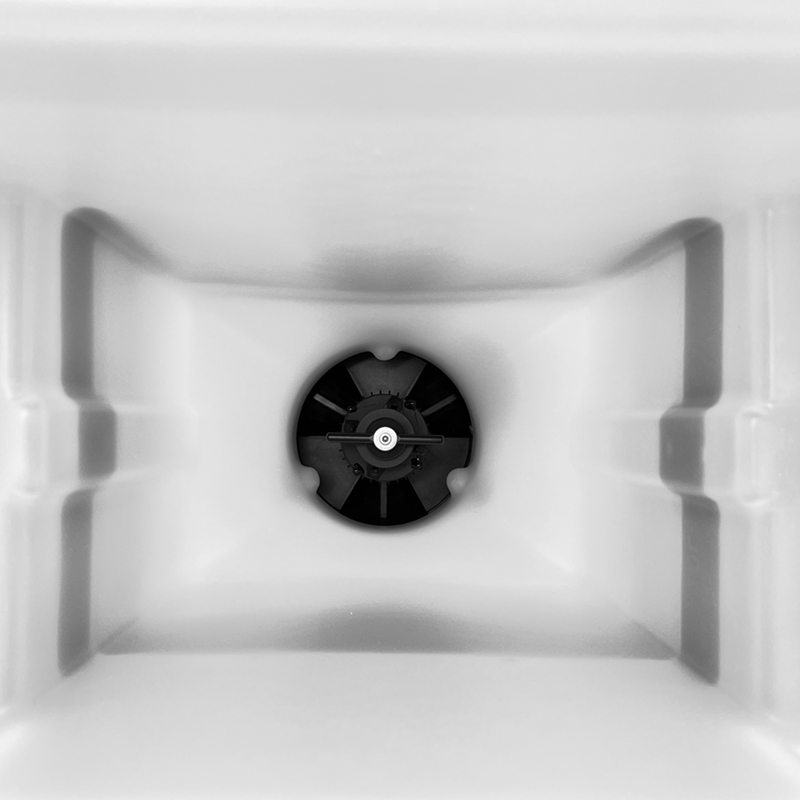

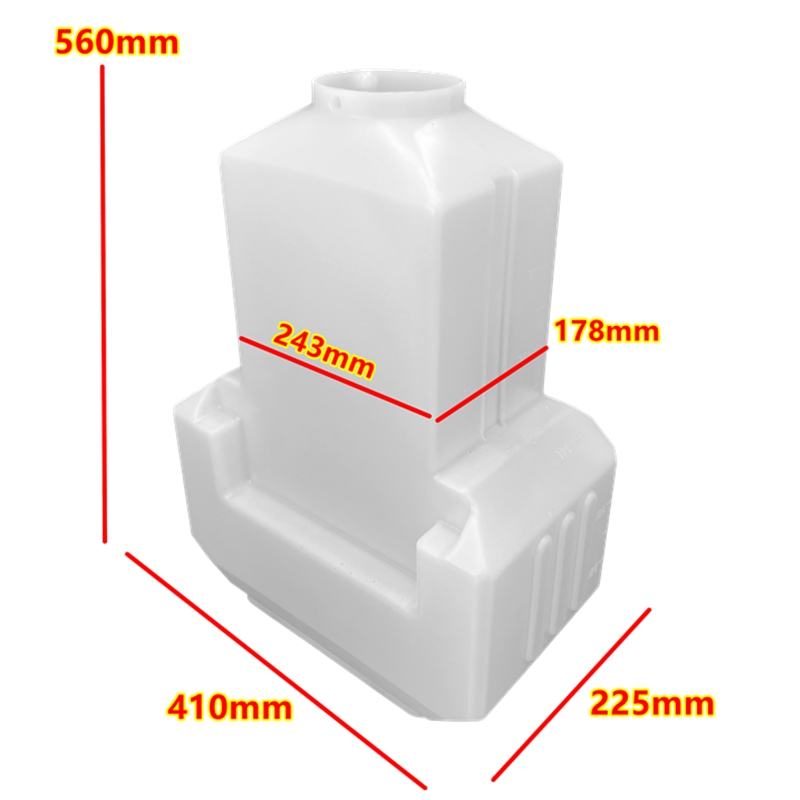

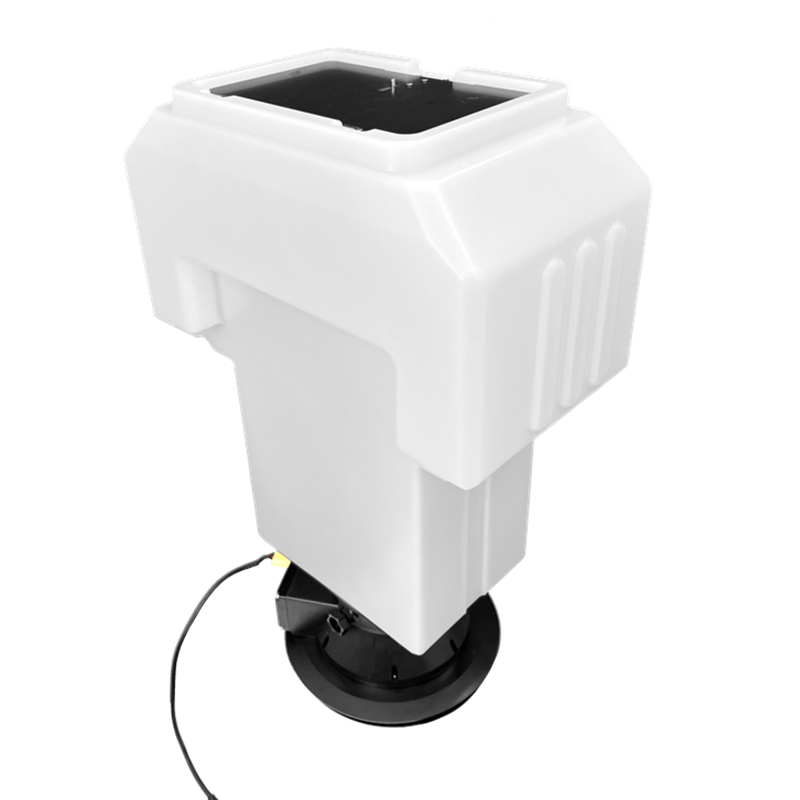

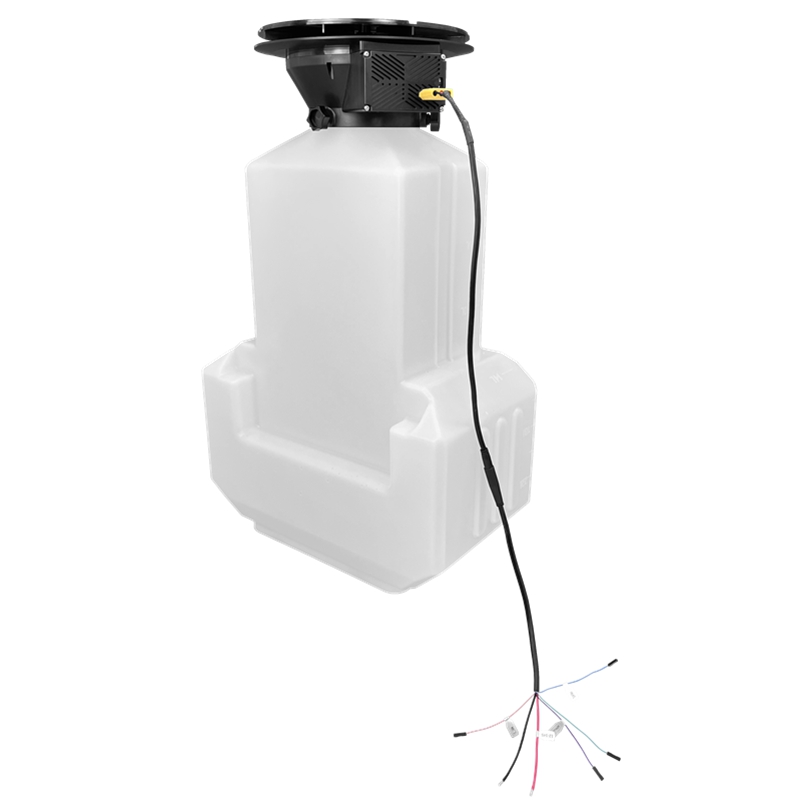

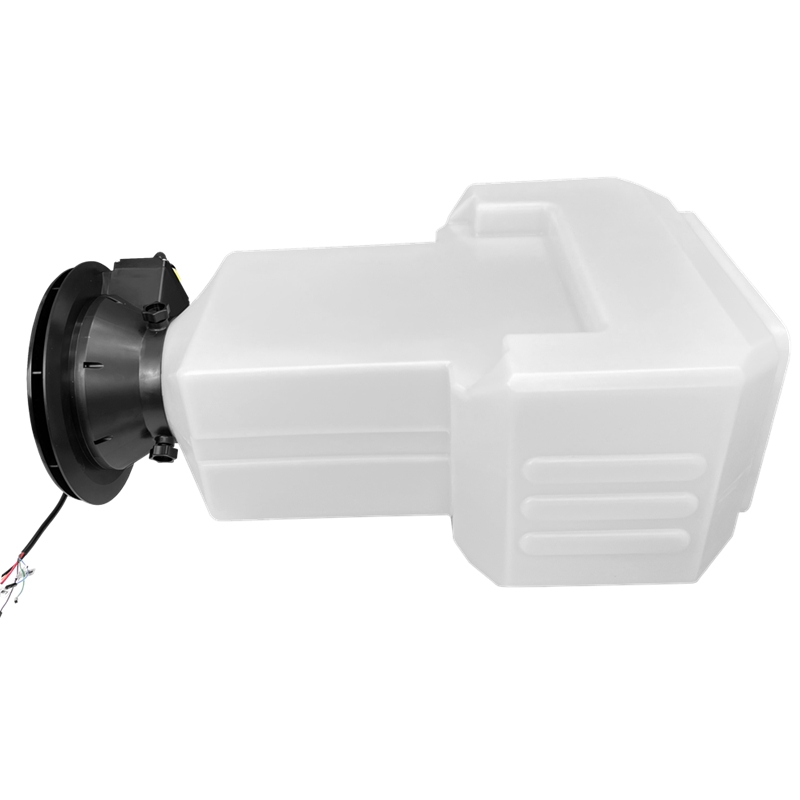

FWP-11 27L Granular tank: 1pcs

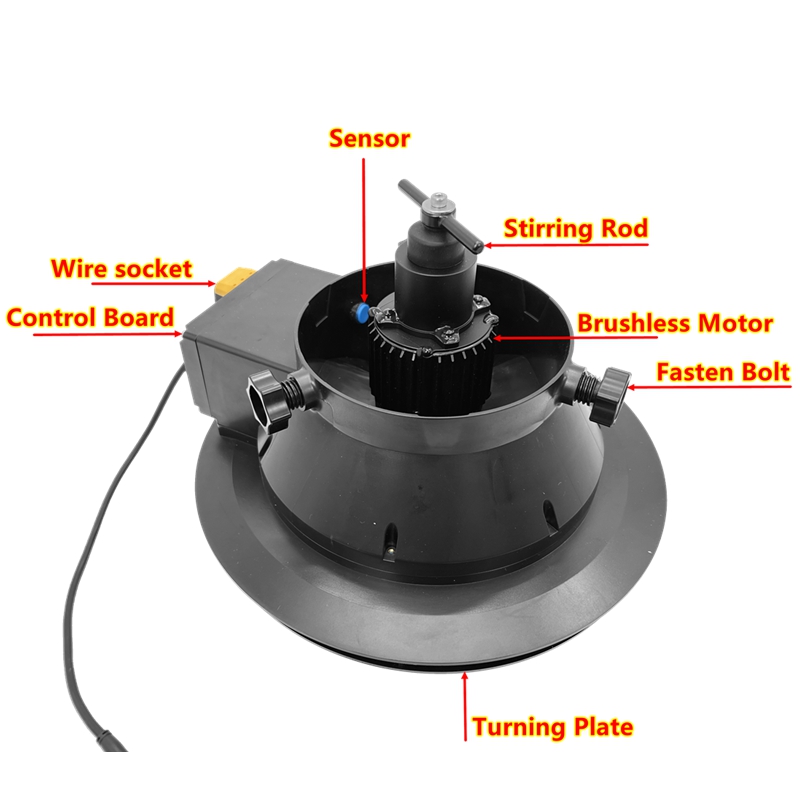

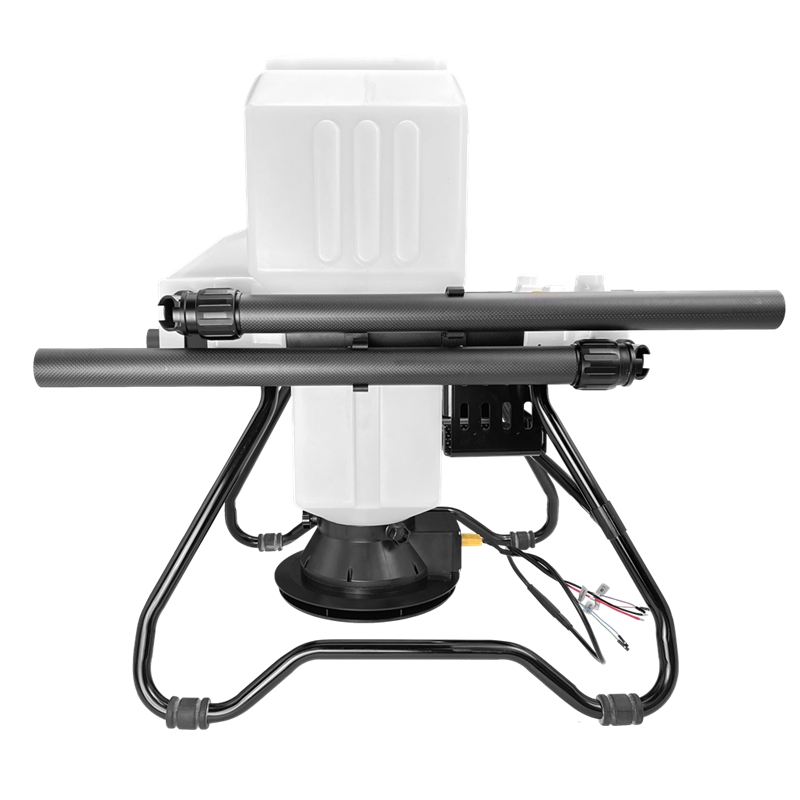

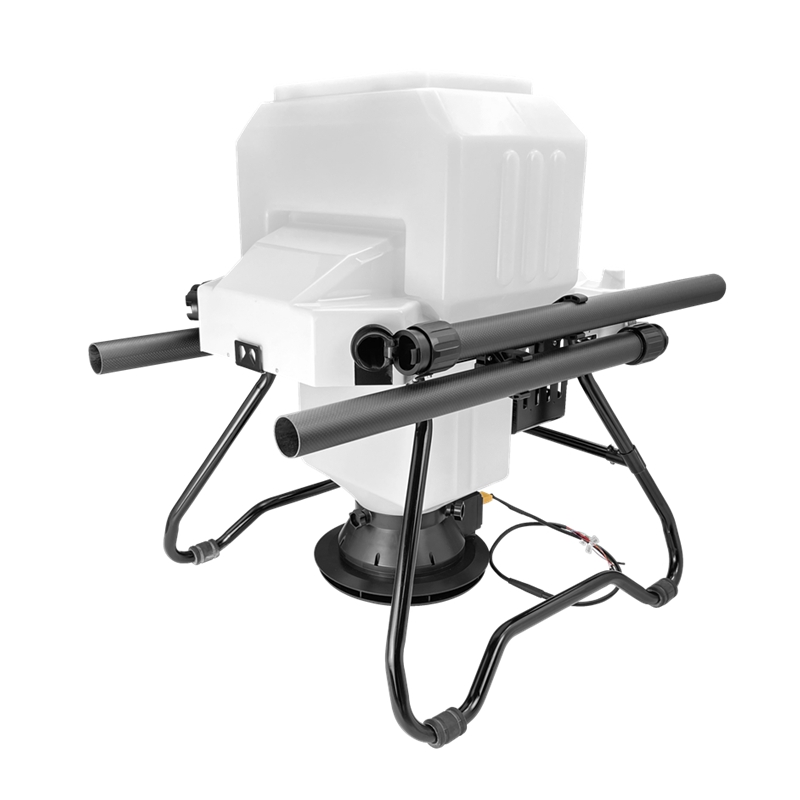

1. FSM27-01 Drone Particle Spreader system is the fourth generation particle spreader we have developed. Our goal in developing this spreader is to produce more powerful, uniform, and wider spreading effects. Equipped with a particle sensor, when there are no particles inside the box. The drone will stop spreading and record its position. After returning to the takeoff point and reloading, it will continue spreading from the recorded position.
2. FSML-07 Spreader is for spreading dry granular materials with diameter of ≥ 6mm.
3. Various particles are suitable for:
    It can spread different types of solid particles, such as grains, fertilizers, urea, granular fertilizers, bait, etc. It is suitable for sowing, fertilizing, and feeding. Suitable for lotus root fertilization, rice fertilization, granular fertilization, fish farming, seed sowing, large-scale granular fertilization, etc.

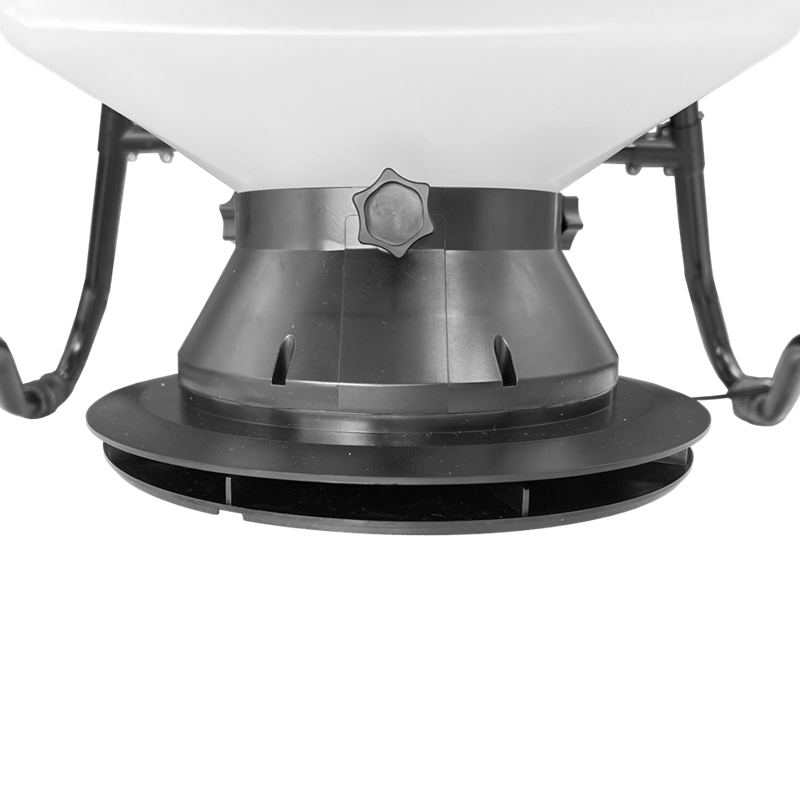

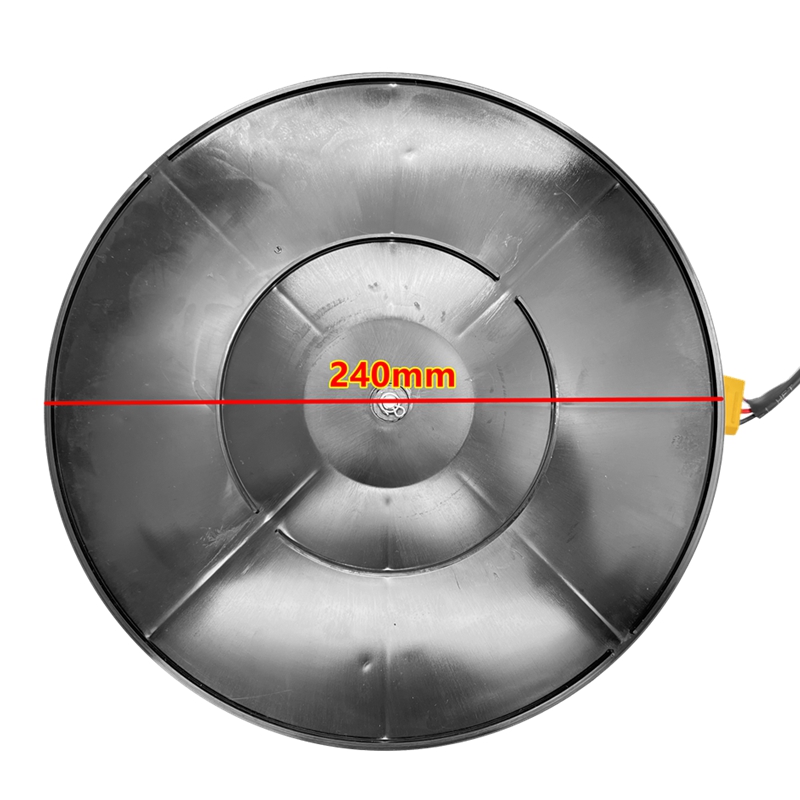

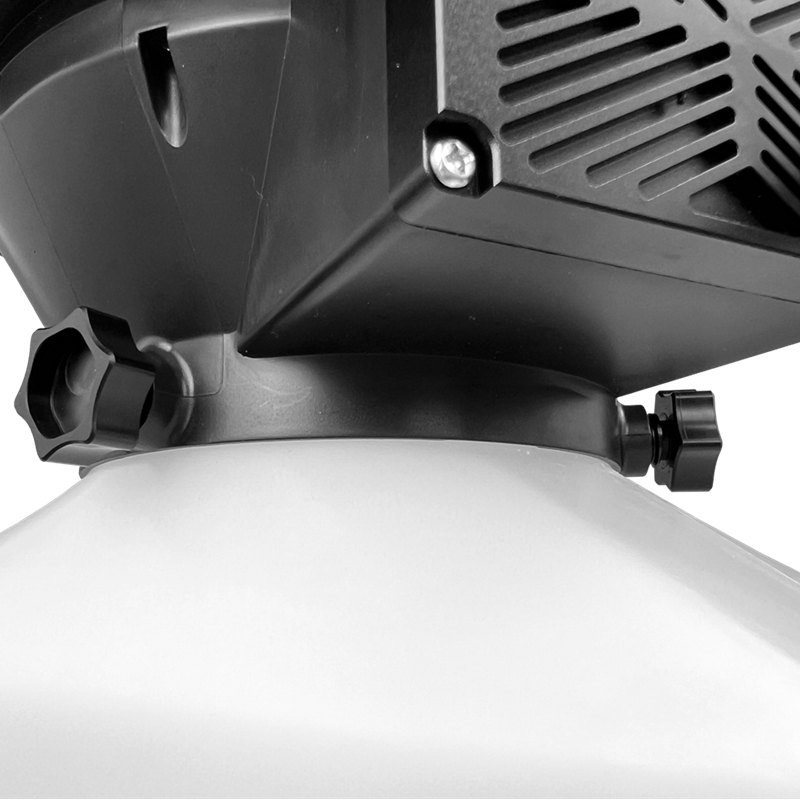

4. The door of the feeding port of the spreader can be closed/opened. The warehouse door can also be adjusted to different opening positions. The speed of the hoist turntable can also be adjusted through the controller knob switch. The multi angle design of scattering improves the uniformity of scattering, while ensuring the width of scattering and improving work efficiency.
5. We can use it to build drones to help us quickly complete particle diffusion work.

6. Warning:
Do not scatter powdery objects.
Do not spread liquids and damp objects.

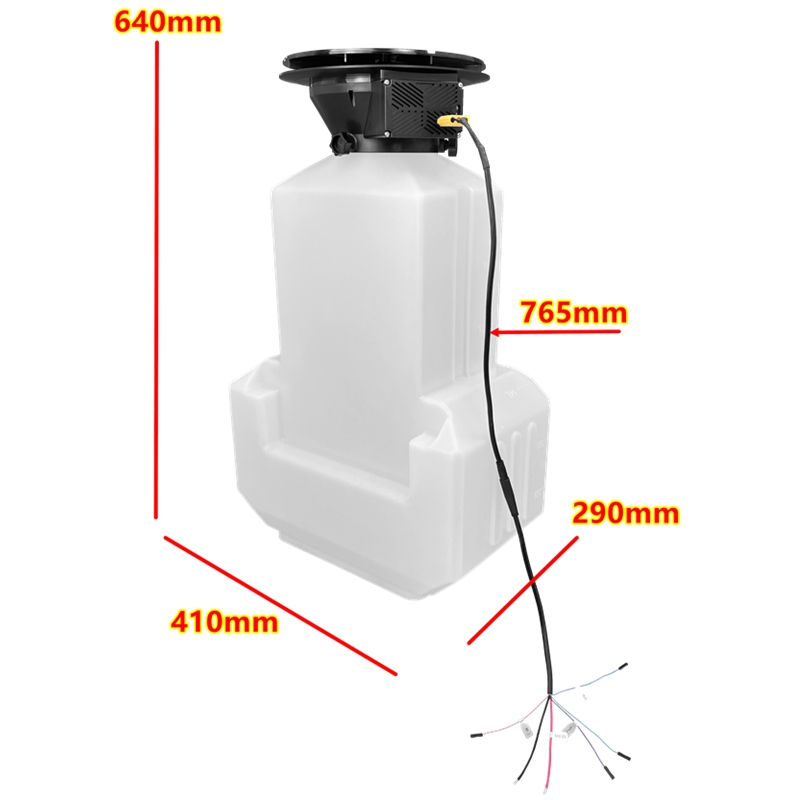

7. Particle Spreader Specifications:

Model: FSM27-01
Tank Capc. 27L

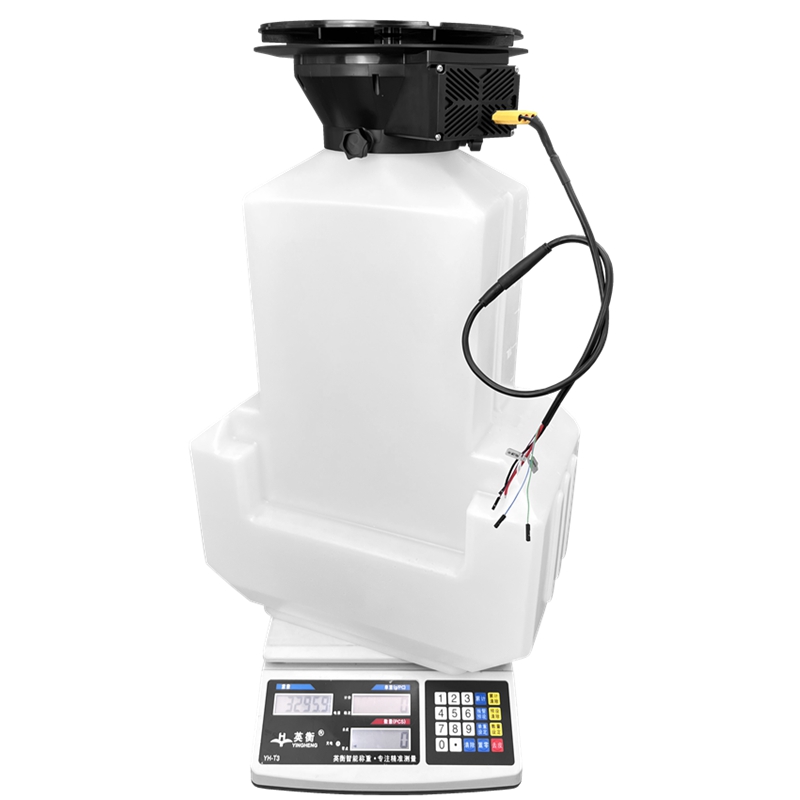

Weight: 3295.9g
Power Supply: Electric

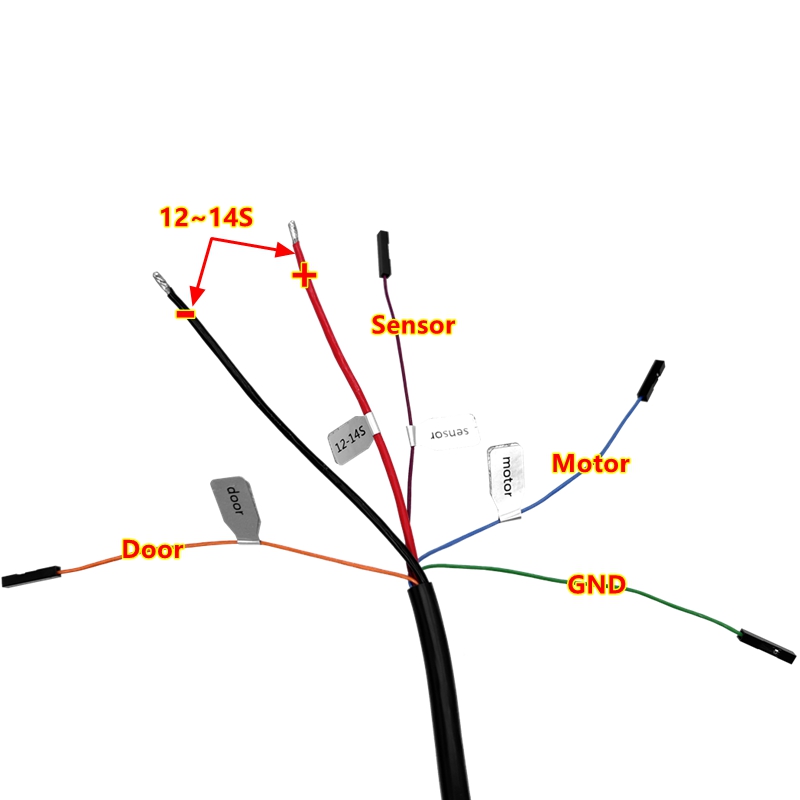

Working voltage: 12S~14S
Power: 150W
Max. RMP: 1250R/Min

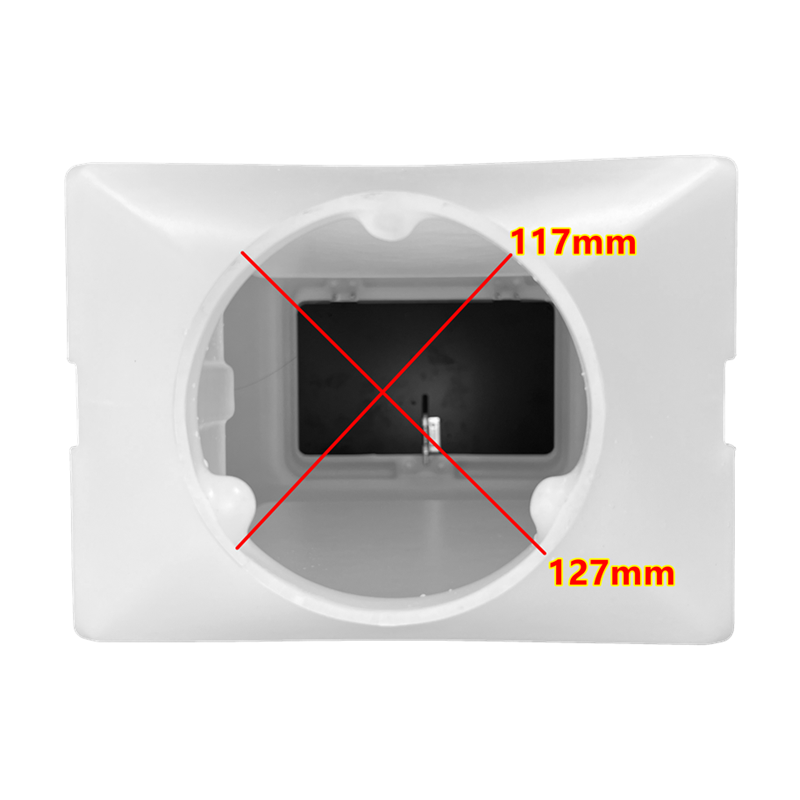

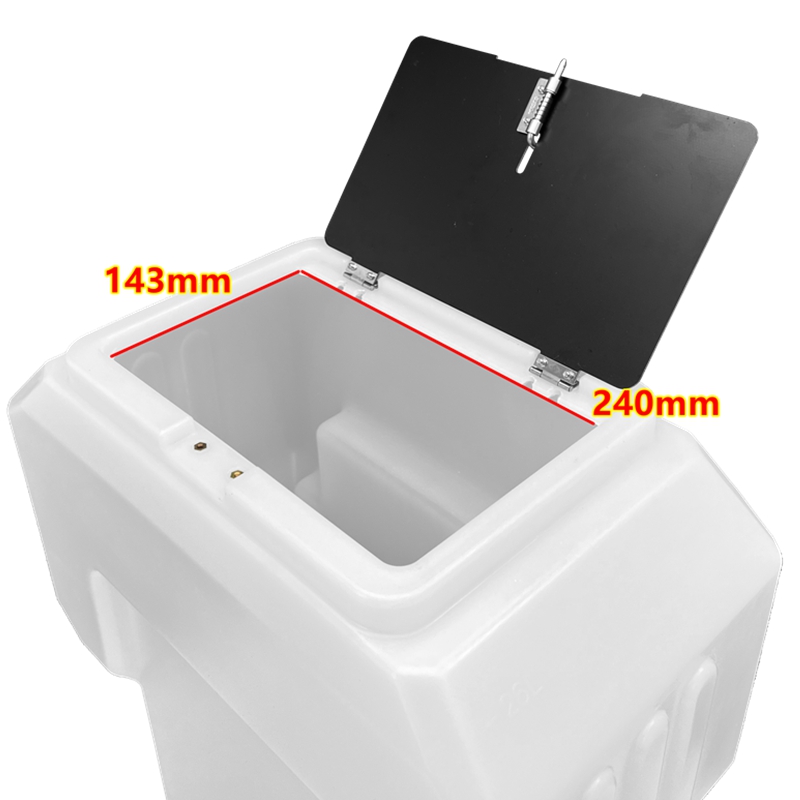

Feed inlet diameter: 240*143mm(Length * Width)
Valve Angle: 0~60°
Recommended particle size: ≥6mm

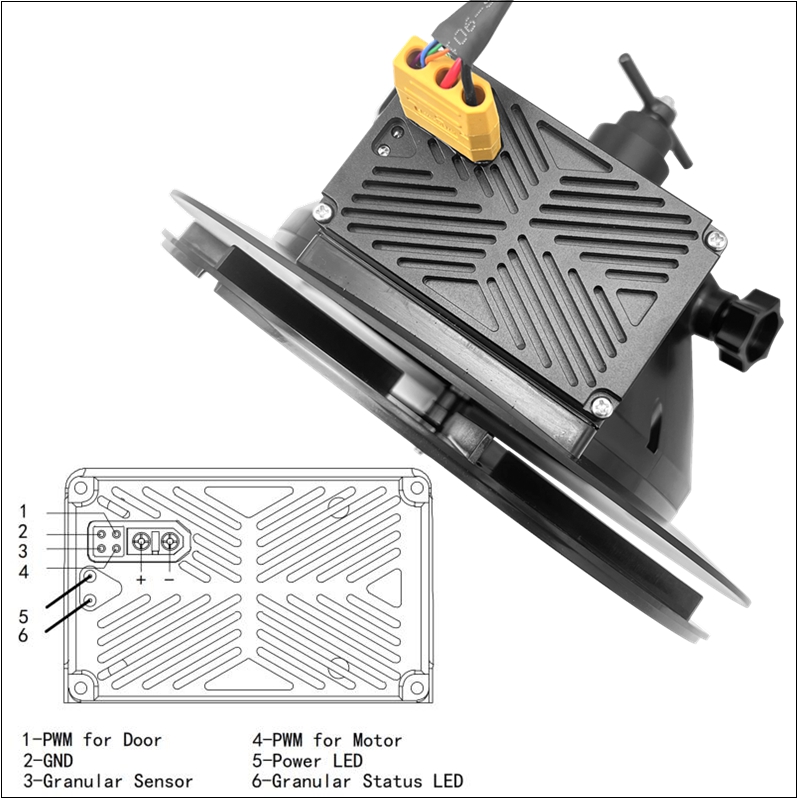

Function:    Which prompts the lack of material and forms a breakpoint memory function after the broadcast operation is completed.
