Picture packing list:
(Ready-to-Fly status)
(Not Include the Li Battery and Lipo Battery Charger)

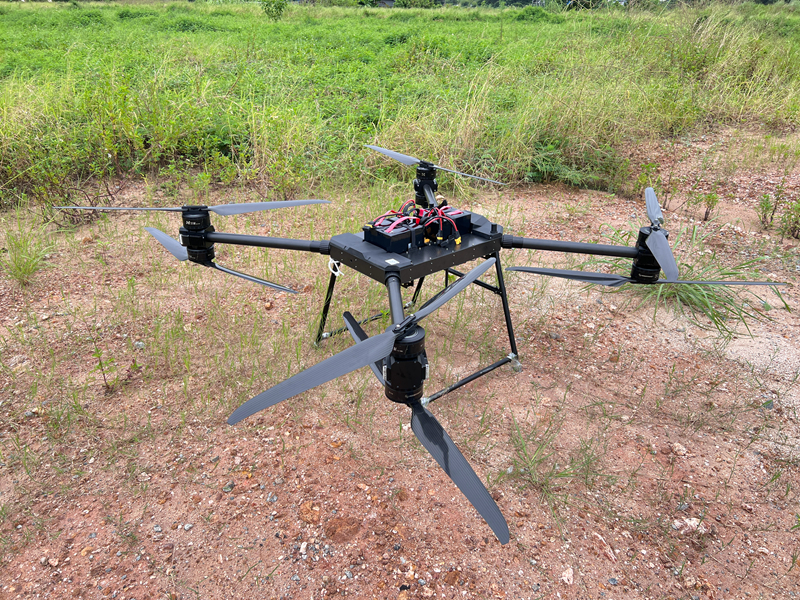

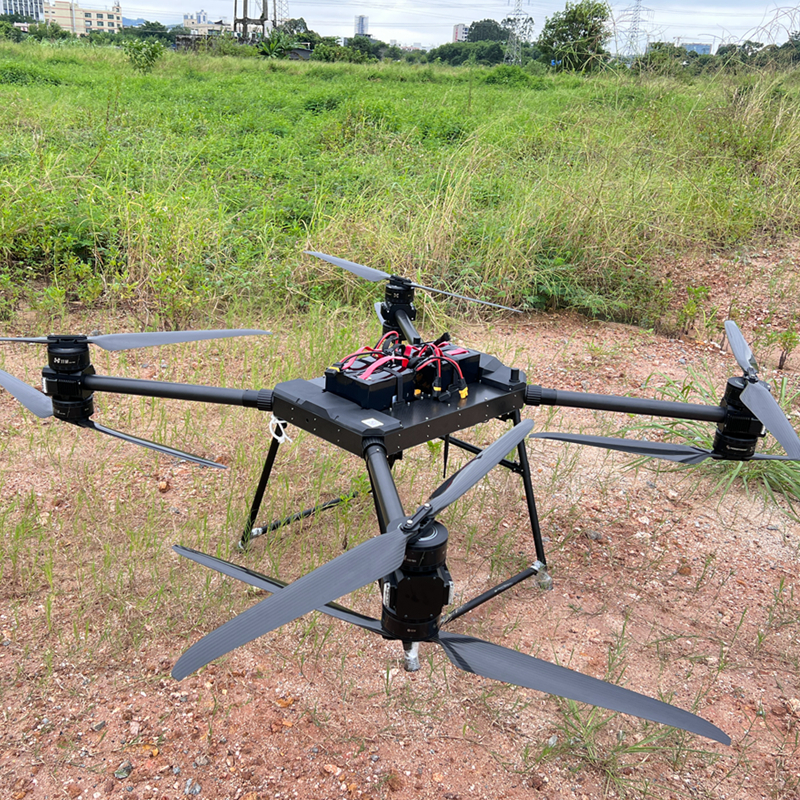

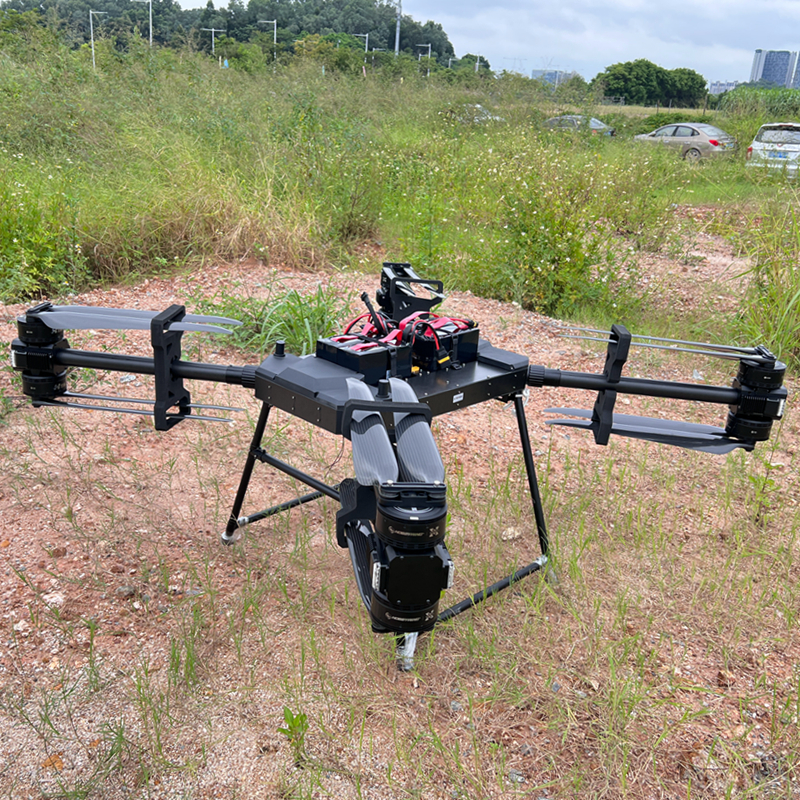

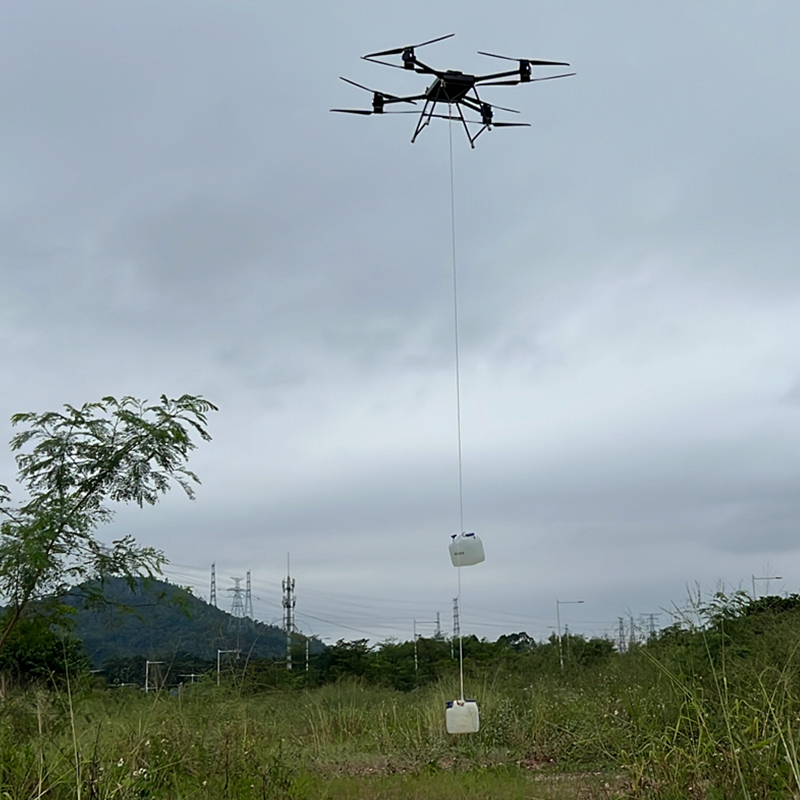

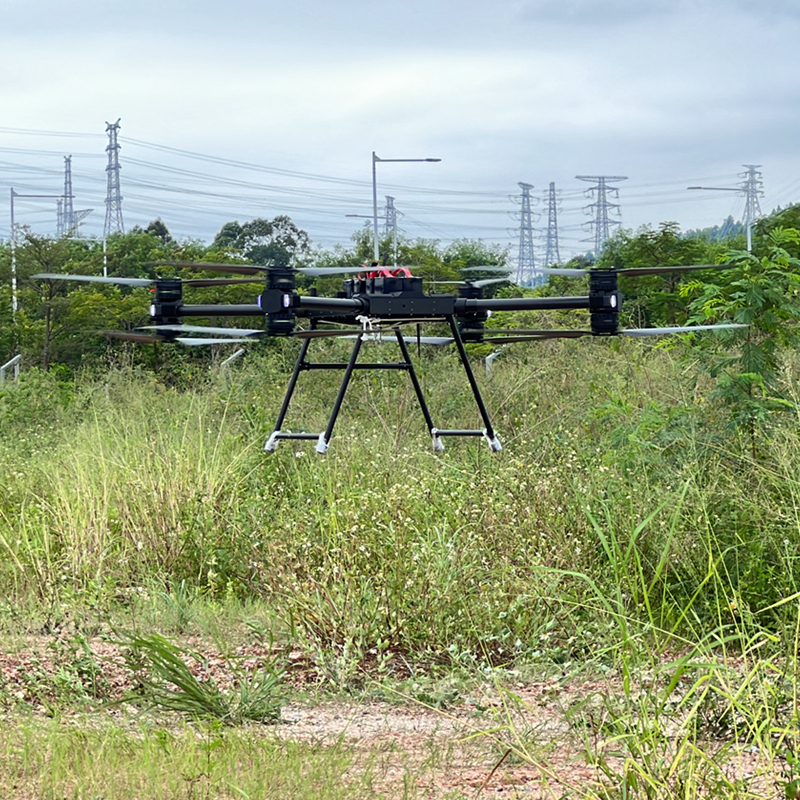

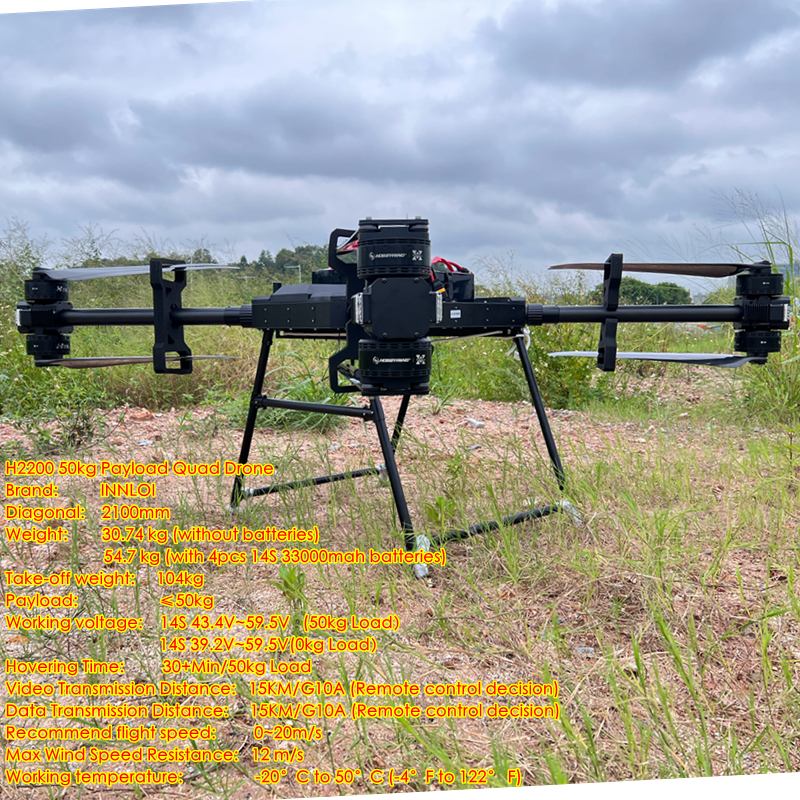

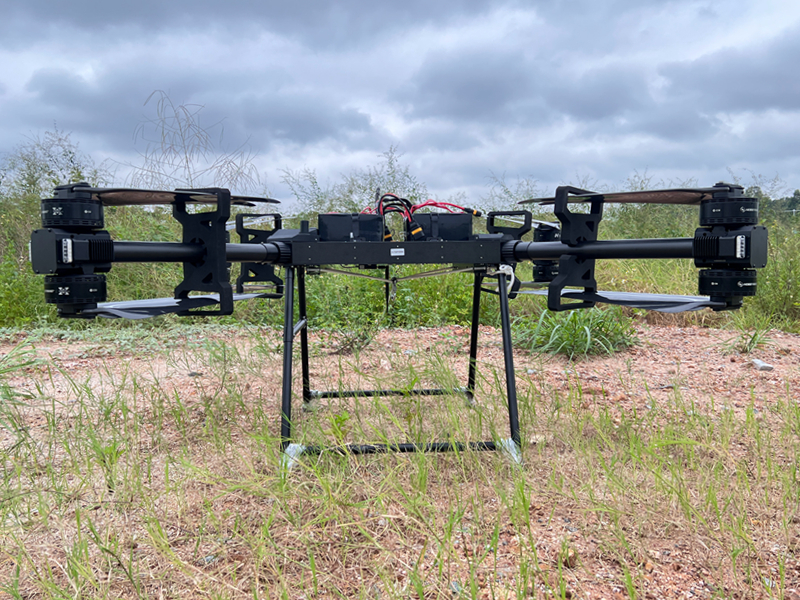

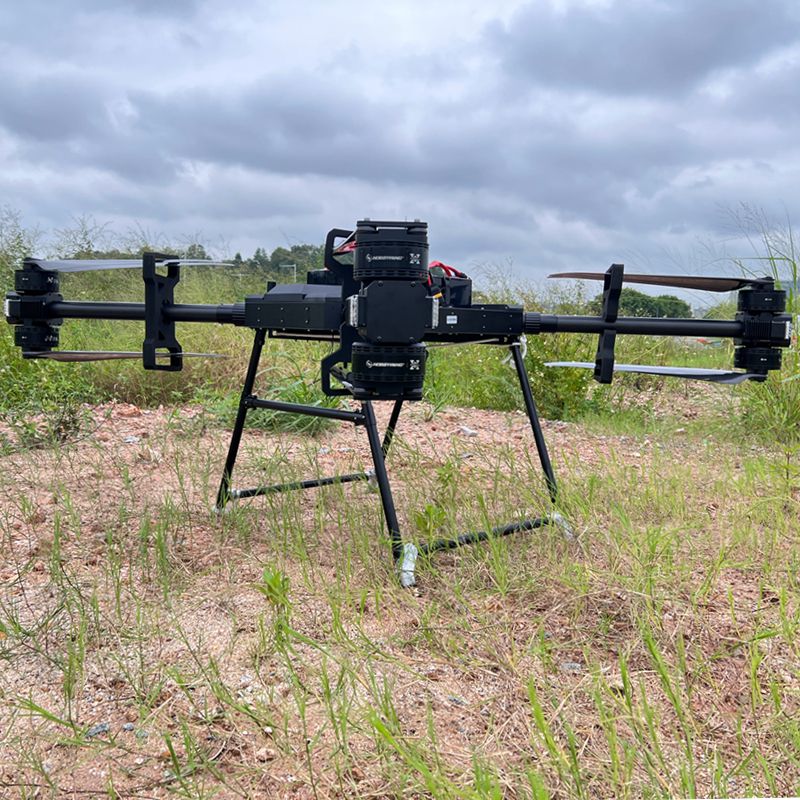

H2200 50kg payload Quad Drone: 1set

NO.1 Detail list:
(Ready-to-Fly status)
(Not Include the Li Battery and Lipo Battery Charger)

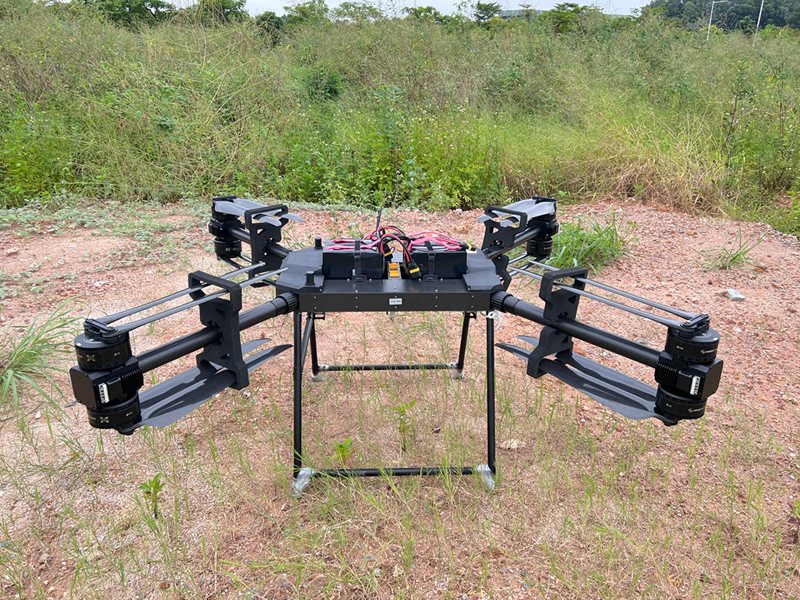

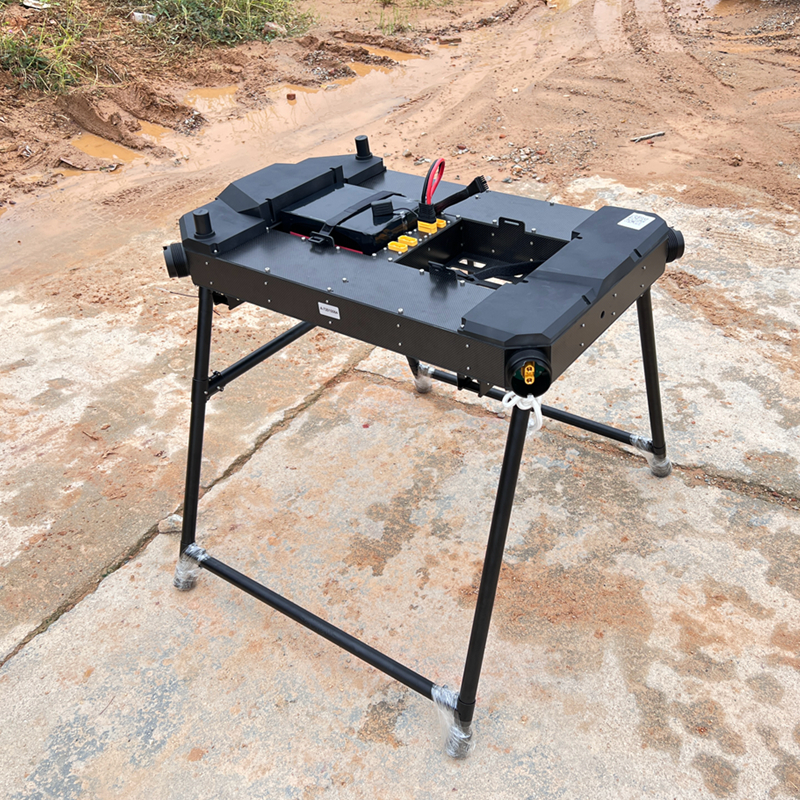

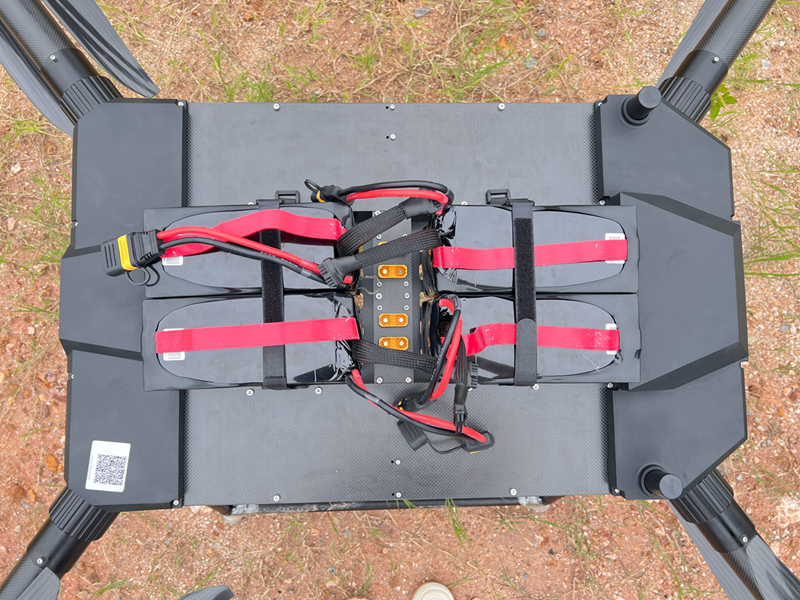

H2200 Folding Frame： 1set
ø25mm Aluminium Landing gear: 1set

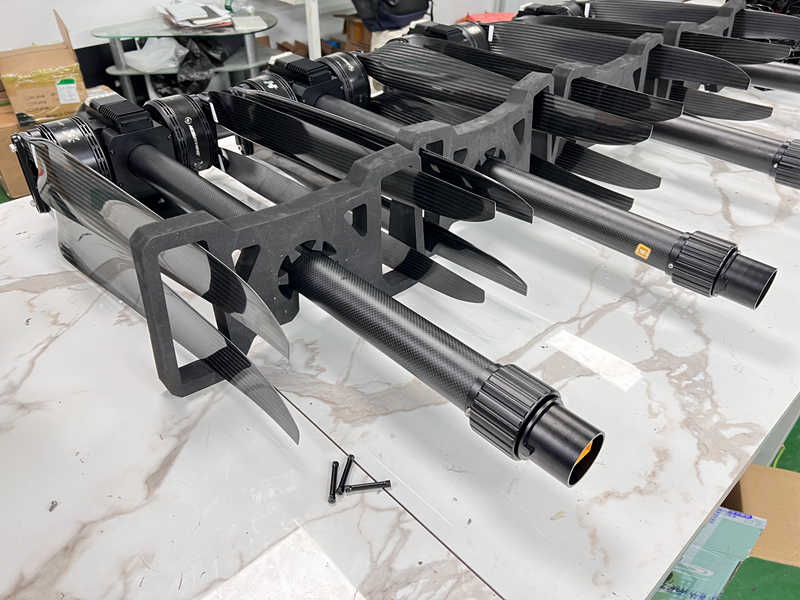

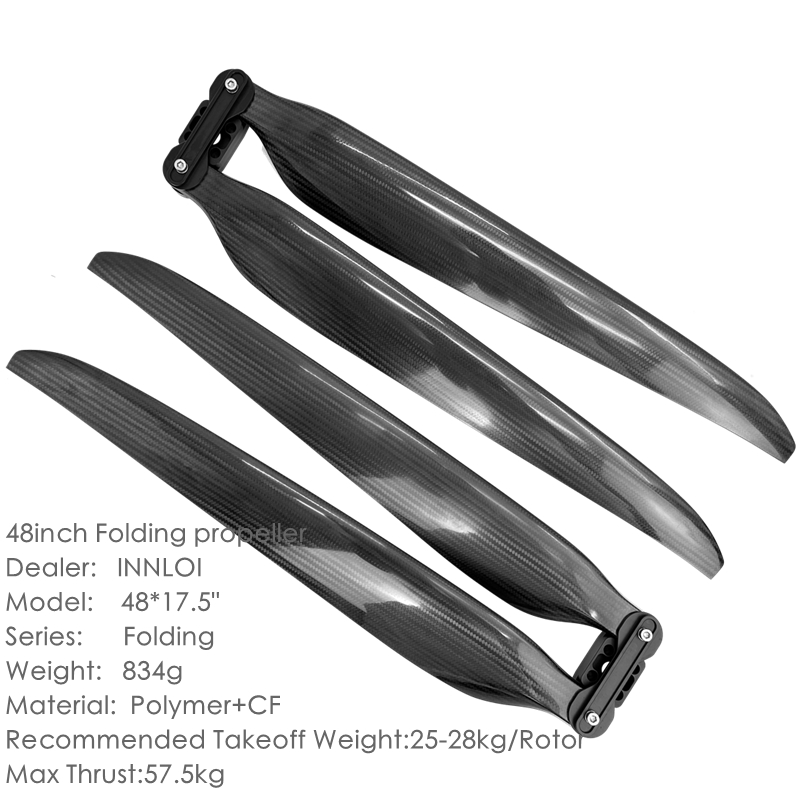

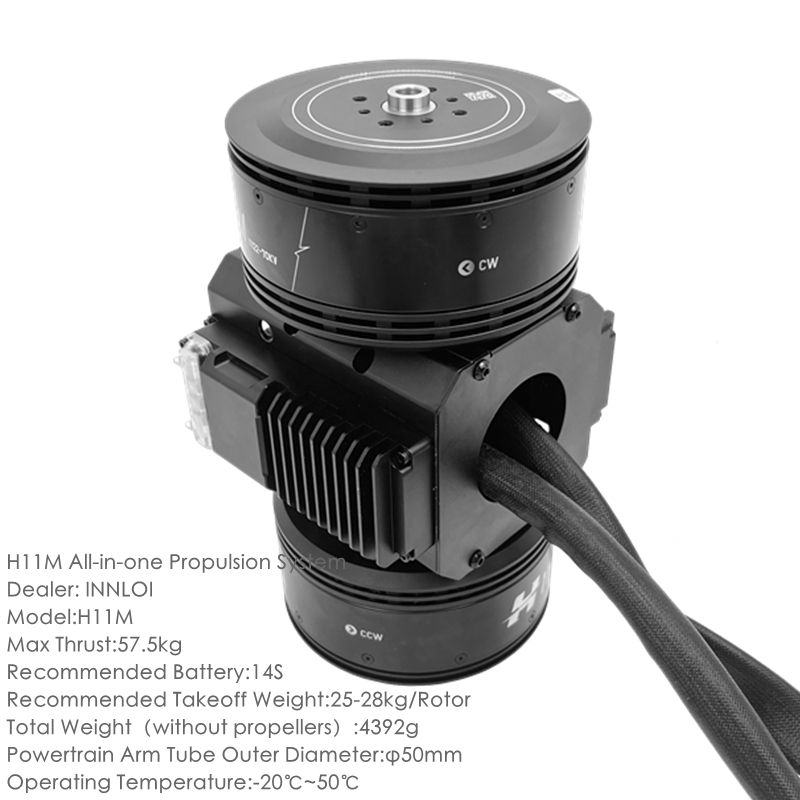

14S Propulsion system with 48inch propeller: 4set
Flight controller+GPS: 1set

G10A Drone Ground Control Station: 1set


NO.2 Detail list:
(It is just the parts, not assembled)

H2200 Folding Frame： 1set
ø25mm Aluminium Landing gear: 1set
14S Propulsion system with 48inch propeller: 4set
Flight controller+GPS: 1set

G10A Drone Ground Control Station: 1set









Drones Don't include batteries and chargers



Product use precautions
- Please comply with local regulations and do not fly in the no-fly zone.
- Flight is prohibited within 8km from the airport.
- It is forbidden to fly above people, houses or vehicles.
- Do not fly in rain, strong winds or fog.
- It is forbidden to fly above the venue.

Troubleshooting Guide
The aircraft tilts severely upon takeoff or flips over upon takeoff:
This means that it is usually caused by installation or setup, and the following

points can be checked:
Check if the rack setting X or+is correct
Check if the ESC electrical adjustment number is correct
Is the motor turning correctly
Is the direction of the propeller correct, and is the wind blowing downwards
Is the accelerometer calibration correct
Is the ESC electric throttle synchronized


The drone motor cannot take off or the unlocking motor cannot rotate:
Check if the wind blows downwards (incorrect installation of the propeller and incorrect rotation of the motor)
Insufficient power? Check if the propeller size and battery voltage match in the motor parameters
The motor is not responding and keeps beeping: the remote control throttle stroke is not calibrated
The aircraft is controlled to fly forward, actually to fly backward or to fly left, actually to fly right:
The control channel of the remote control is reversed. Adjust the corresponding channel of the remote control menu to reverse it once


Flight control cannot detect remote control signal:
If it is the first use:
First, check if the receiver has successfully paired?
Is the receiver output in PPM or SBUS protocol? If not, please use a PPM encoder


If it was normal before but suddenly stopped working:
Is it possible that the receiver is malfunctioning or the flight control IO is malfunctioning?

*Note: The manual is subject to change without prior notice.
