Picture Packing List:
(Ready-to-Fly status)
(Not including Li battery and Lipo battery charger)

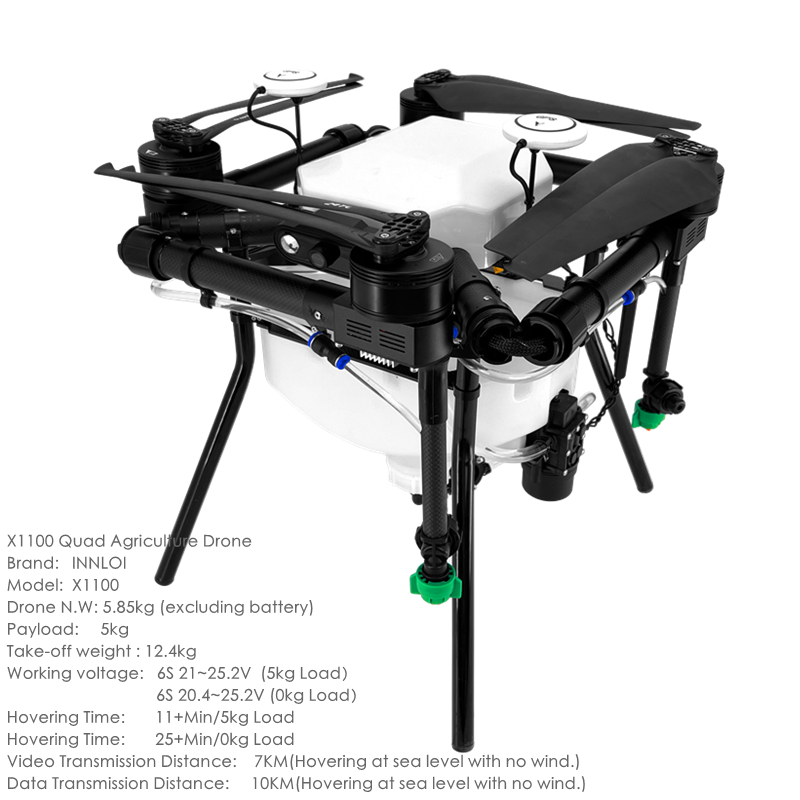

X1100 quad farming drone: 1 set

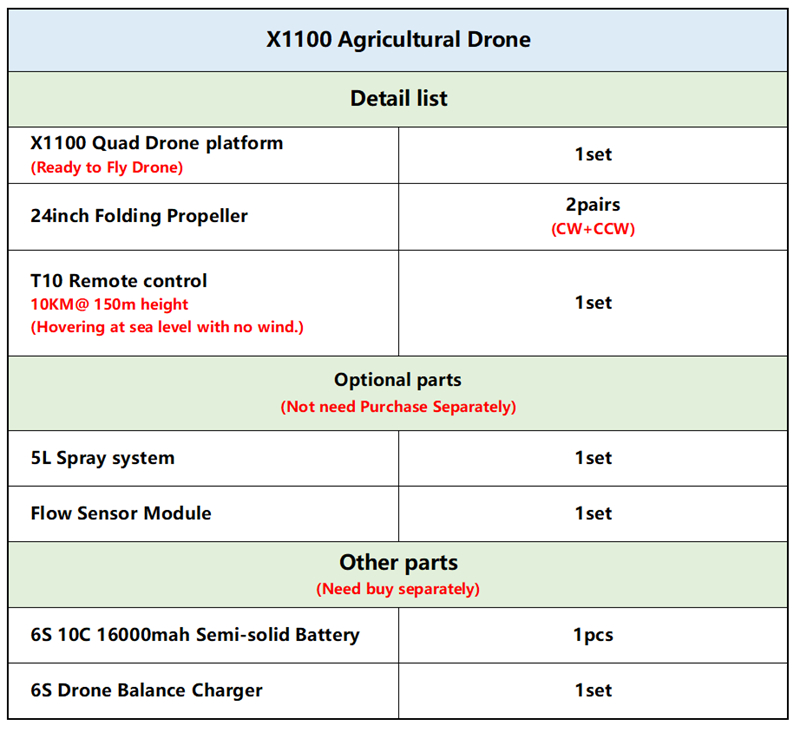

NO.1 Detail List:
(Ready-to-Fly status)
(Not including Li battery and Lipo battery charger)

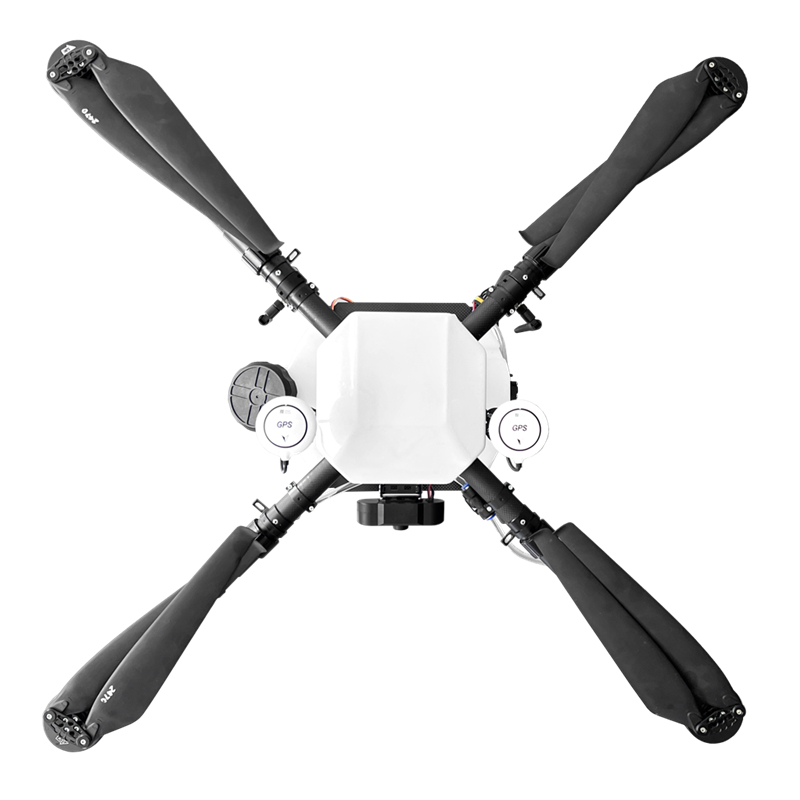

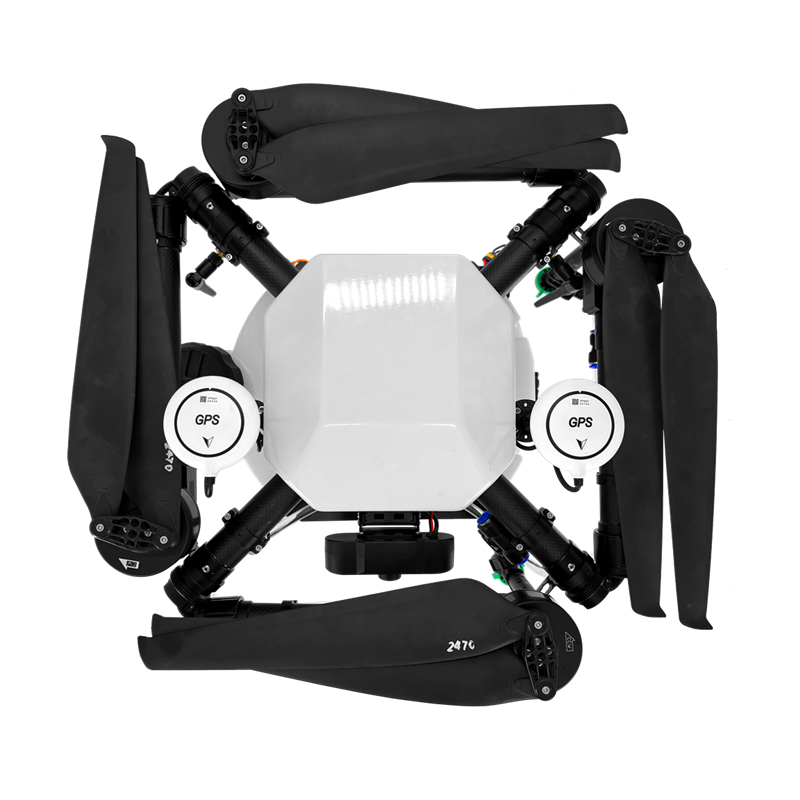

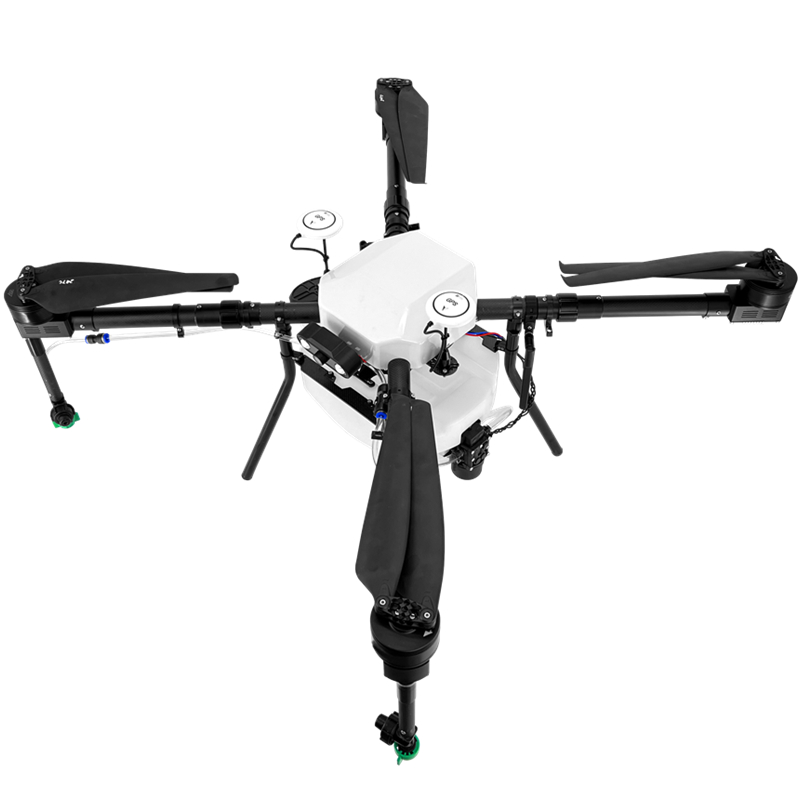

X1100 Quad Drone Platform: 1 set
24 inch folding propeller: 2 pairs (CW CCW)
T10 remote control: 1 set

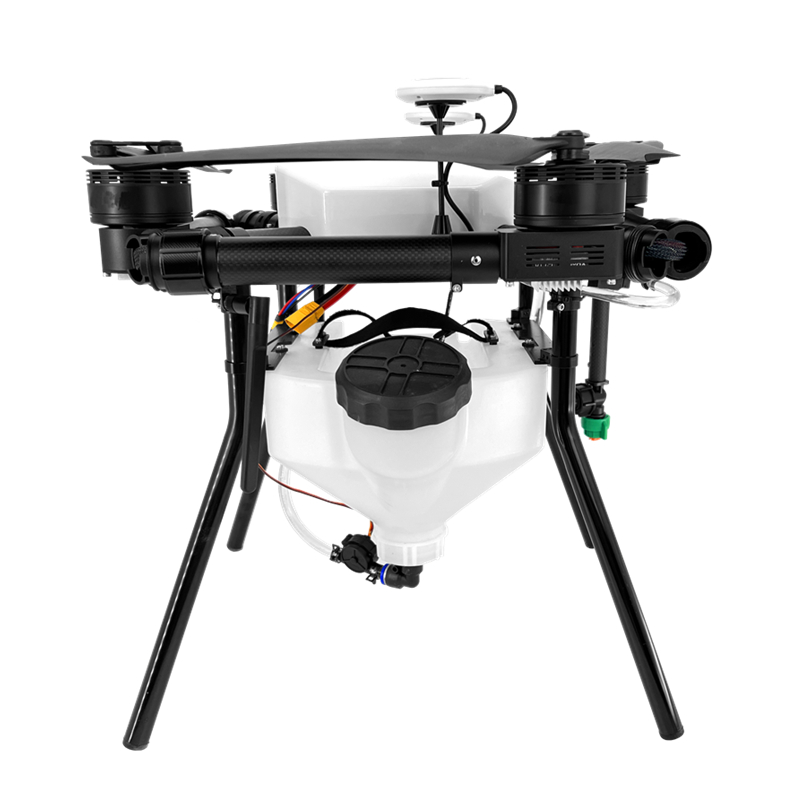

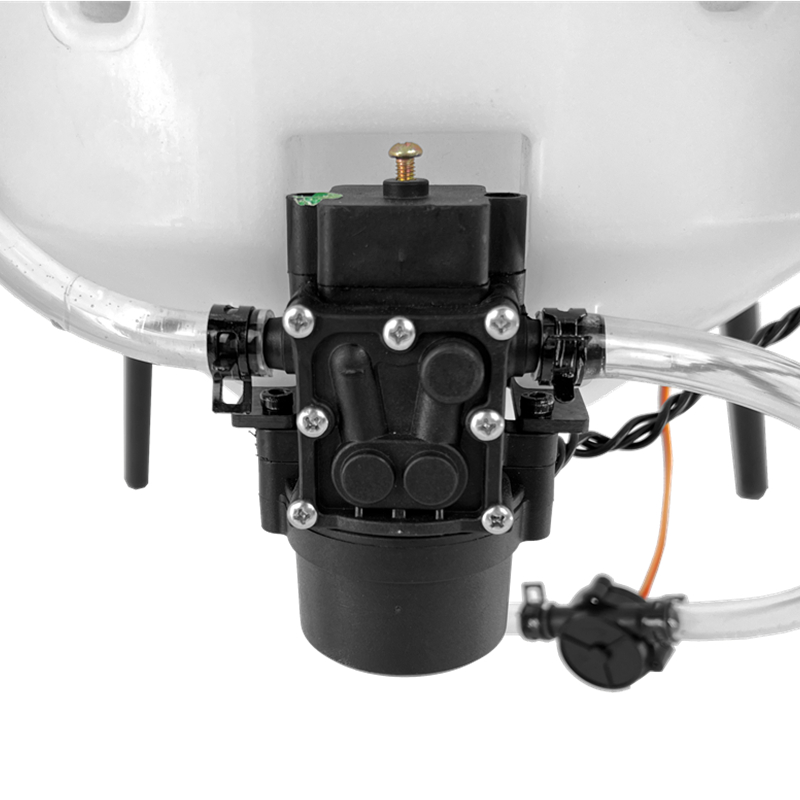

5L spray system: 1 set

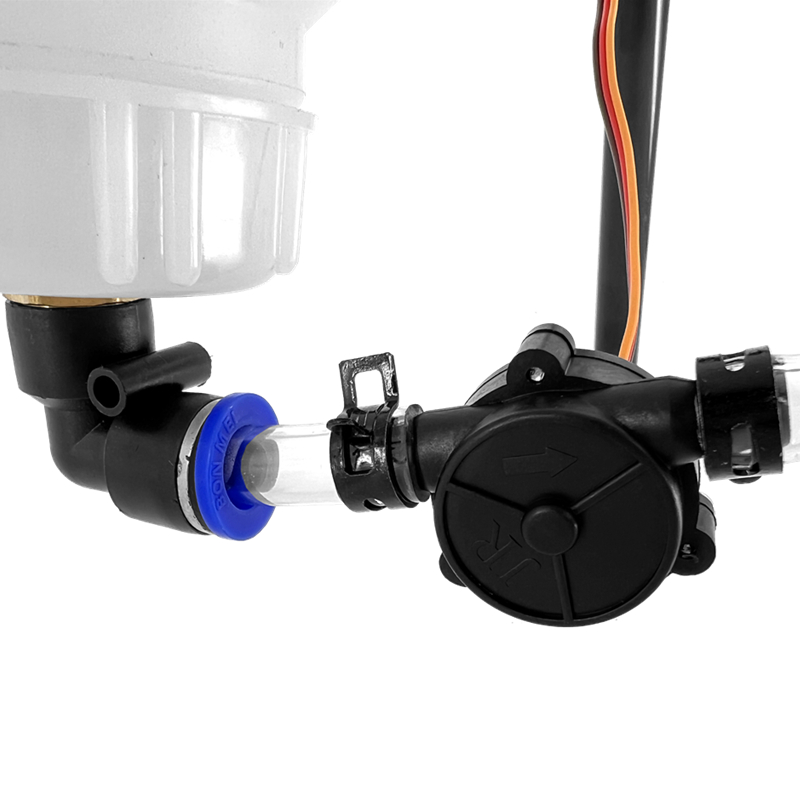

Flow sensor module: 1 set

Precautions for product use
-- Please comply with local regulations and do not fly in a no-fly zone.
-Flights within 8km of the airport are prohibited.
-It is forbidden to fly over people, houses and cars.
-- Don't fly in rain, strong winds or fog.
-- It is forbidden to fly over the venue.

Troubleshooting guide
The aircraft tilts badly on takeoff or turns over on takeoff.
This means that it is usually caused by the installation or setup, and the following

You can check the points:
Rack Settings X or check if it's correct
Check whether the electrical adjustment number of the ESC is correct
Is the motor spinning correctly
Is the direction of the propeller correct, and the wind is blowing downward
Is the accelerometer calibration correct?
Is the ESC electric throttle synchronized

The drone motor cannot take off or the unlocking motor cannot rotate:
Check if the wind is blowing downward (the propeller installation is incorrect and the motor rotation is incorrect)
Lack of power? Check whether the size of the propeller and the voltage of the battery match in the parameters of the motor
The motor does not respond and continues to beep: the throttle stroke of the remote control is not calibrated
The aircraft is controlled to fly forward, as in fact to the left, in fact to the right.
The control channel of the remote control is inverted; adjust the corresponding channel of the remote control menu to reverse once

Flight control can not detect remote control signal:
If it is the first use:
First, check if the receiver has successfully paired?
Is the receiver output in the PPM or SBUS protocol? If not, please use PPM encoder

If it used to be normal, but suddenly it stopped working:
Is it possible that the receiver is malfunctioning or the flight control IO is malfunctioning?

* Note: The manual is subject to change without notice.
